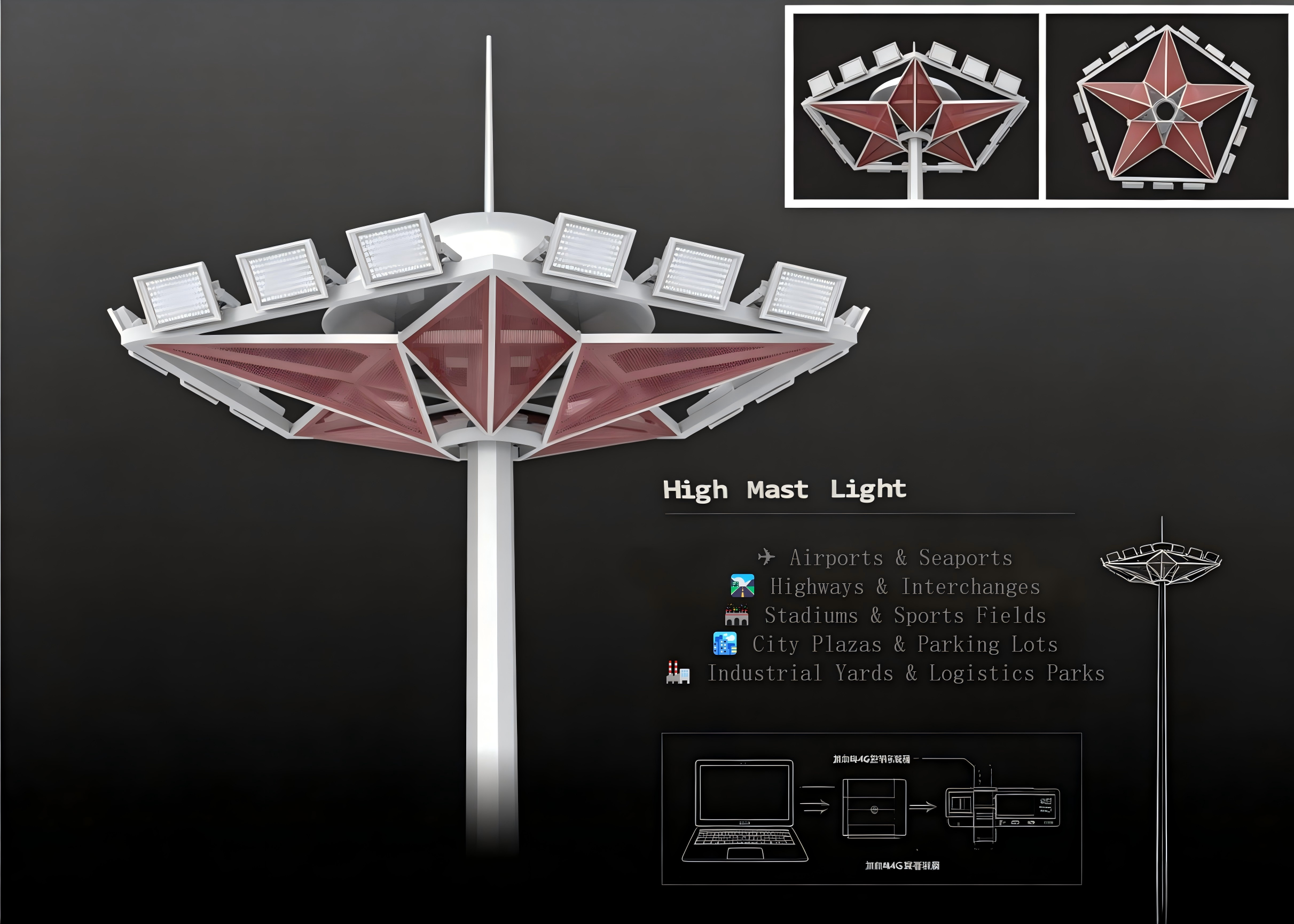

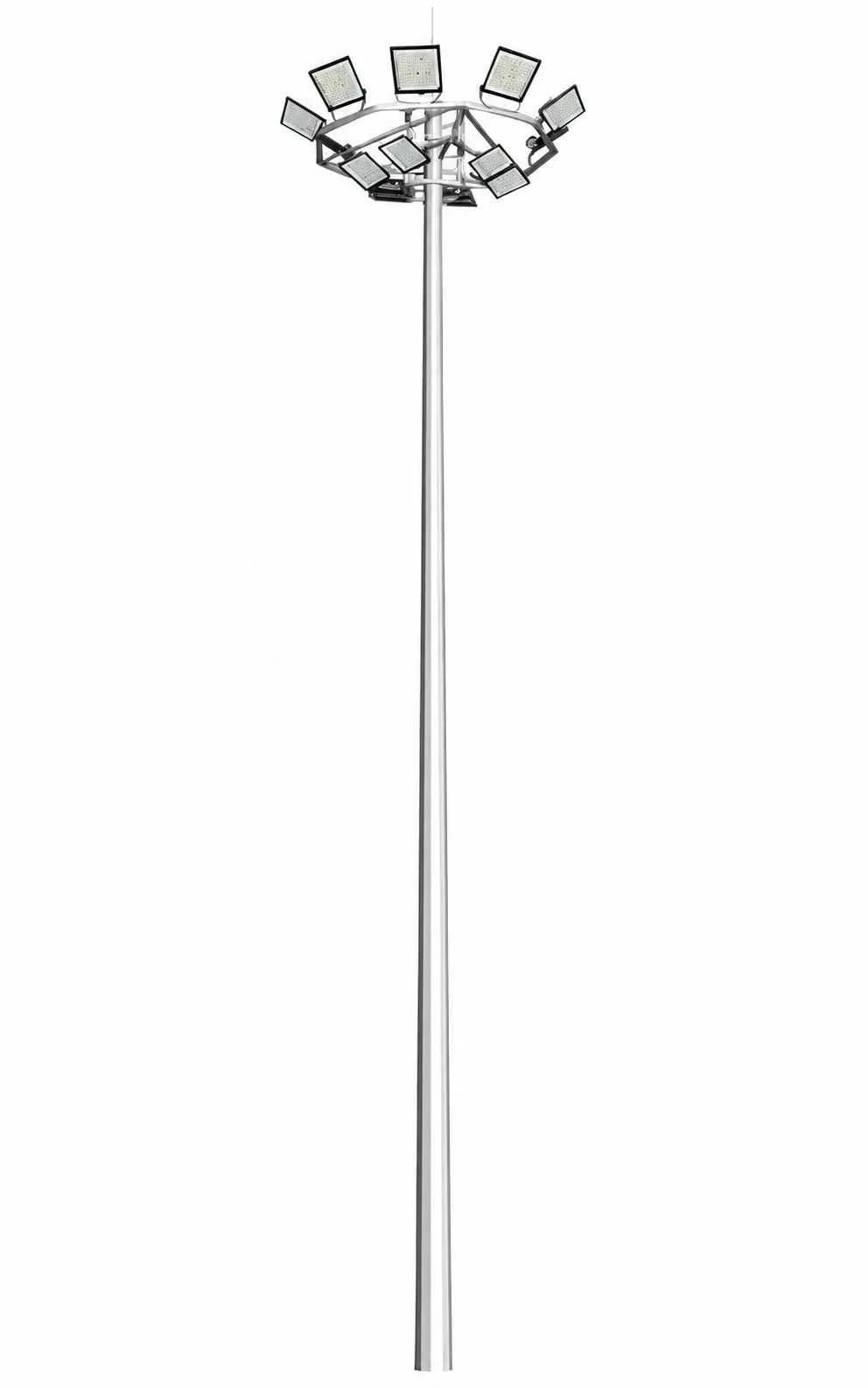

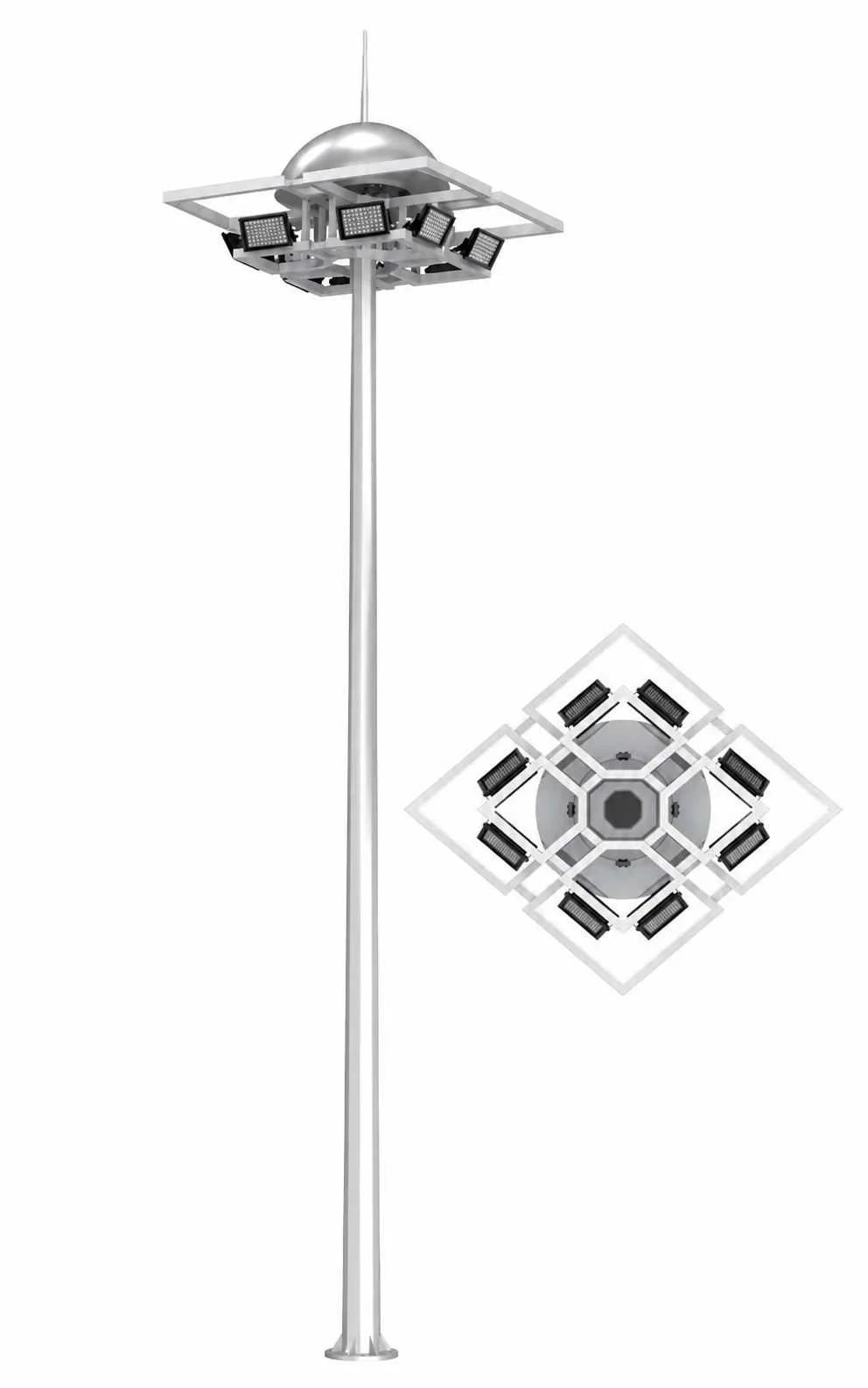

High Mast Light with
4G Smart Control
Next-generation high mast lighting system featuring integrated 4G/5G IoT control, Raola intelligent management platform, and energy-efficient LED fixtures -- engineered for highways, airports, stadiums, and large-scale municipal projects.
High Mast Light Application Scenarios
From highways to industrial facilities, our high mast lighting solutions deliver powerful, uniform illumination for large-scale infrastructure projects worldwide.

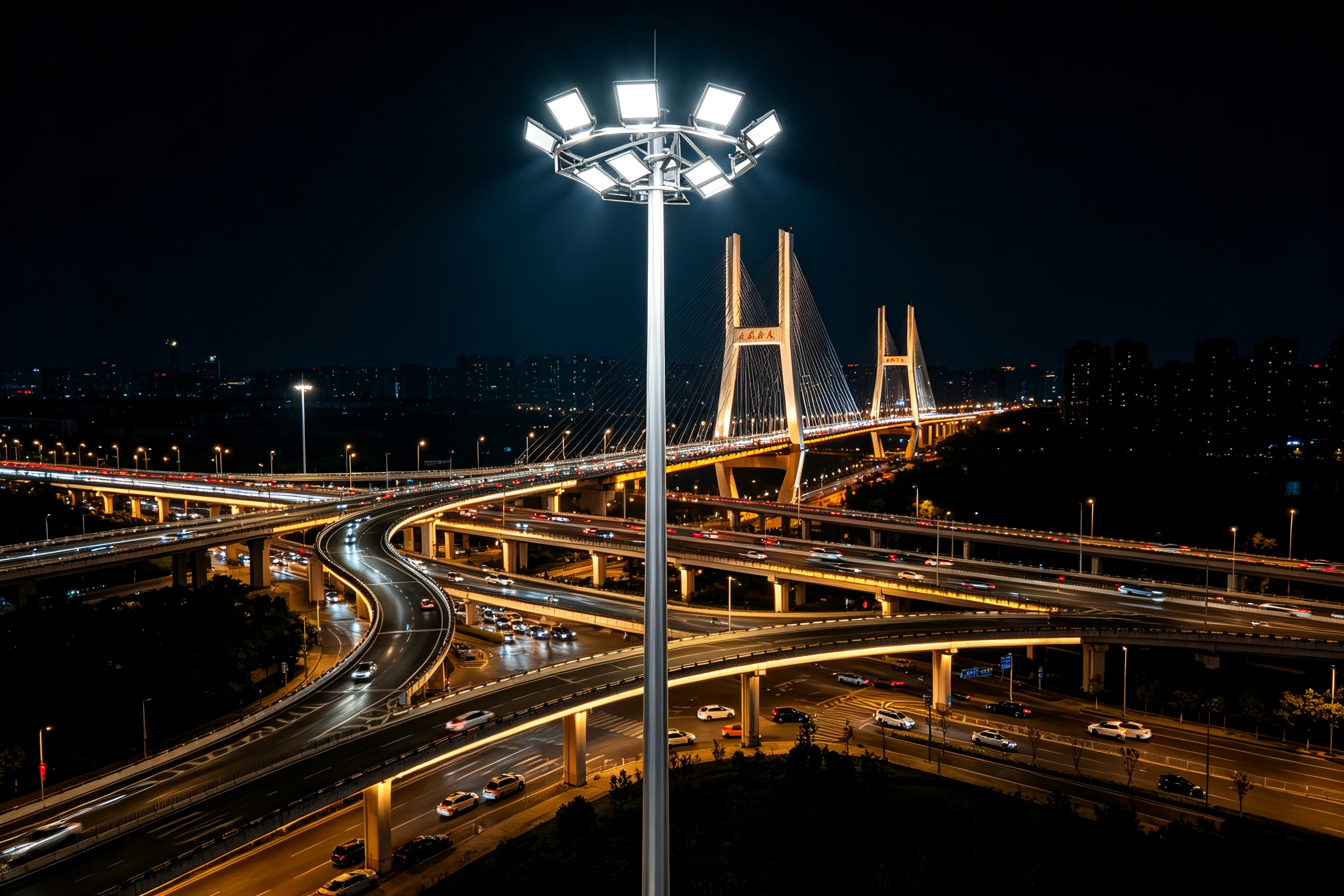

Highways & Expressways
Provide wide-area illumination for highway interchanges, toll plazas, and rest areas. Heights from 15-30m ensure uniform light distribution across multiple lanes, enhancing driver safety and visibility at high speeds.

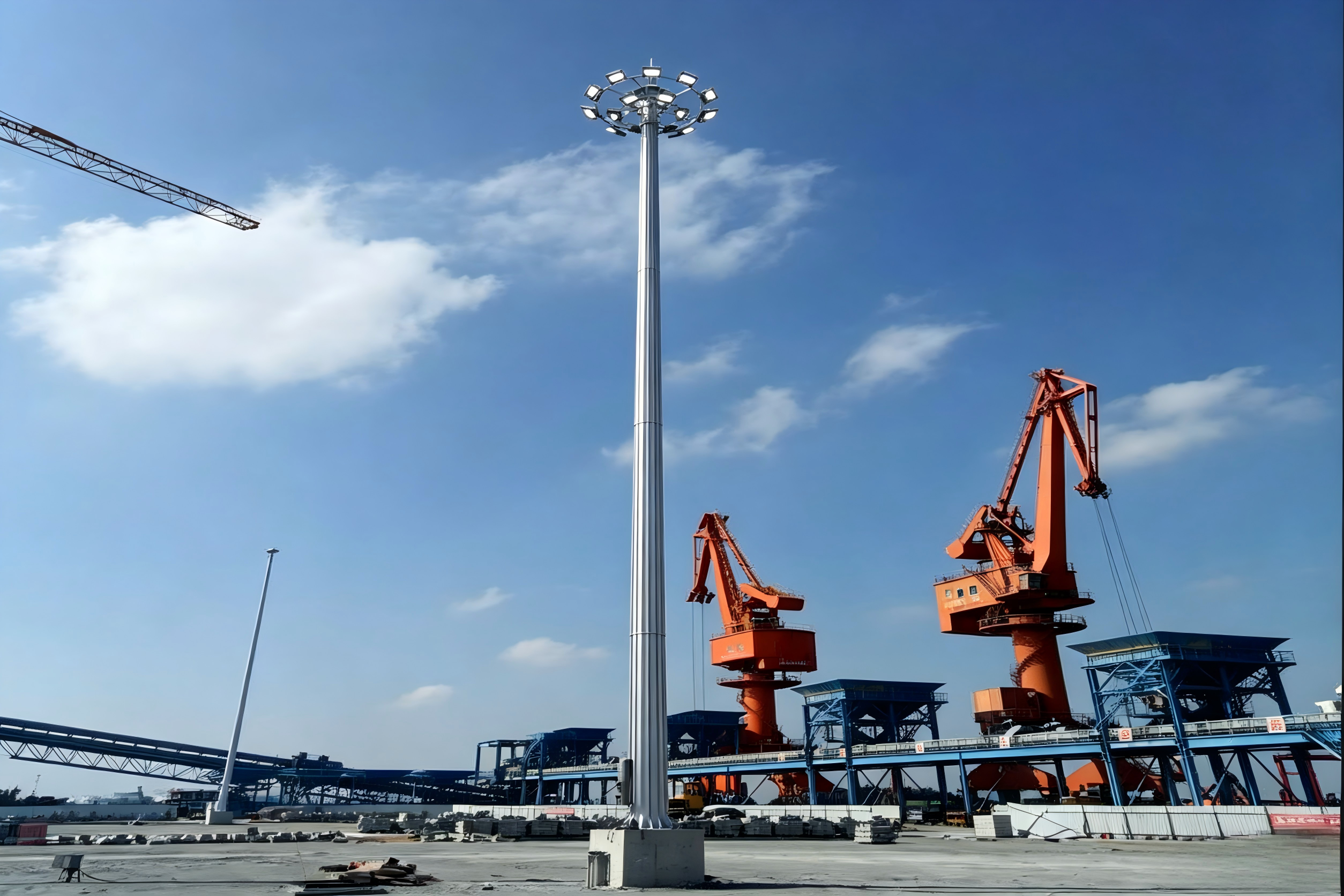

Seaports & Container Terminals
Heavy-duty lighting for 24/7 cargo operations in harsh maritime environments. Corrosion-resistant construction with IP67 rating withstands salt spray and extreme weather. Enables precise crane operations and container handling.

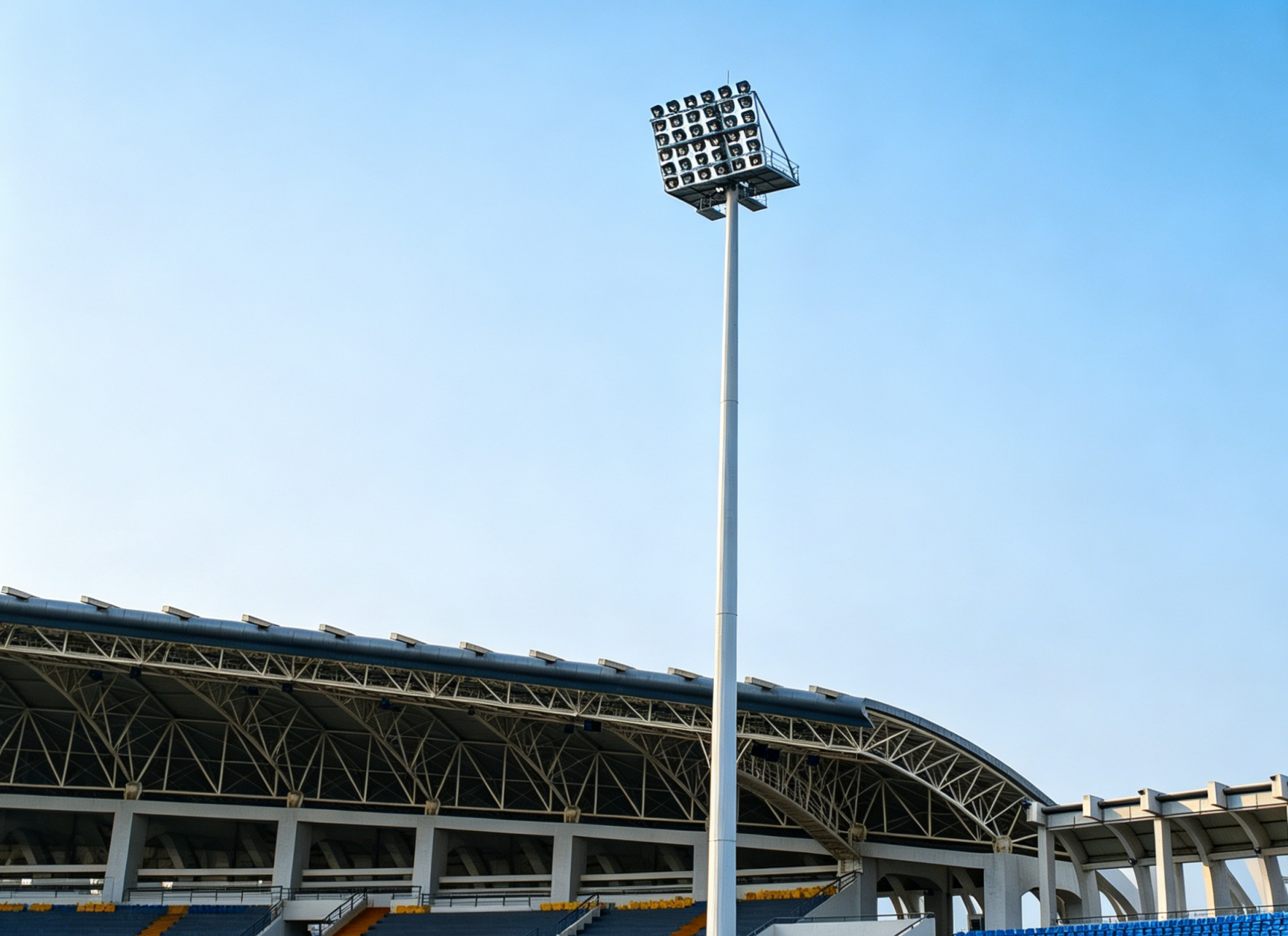

Sports Stadiums & Arenas
High-CRI LED fixtures deliver broadcast-quality lighting for professional sports venues. Instant on/off capability, flicker-free performance, and precise beam control meet international sports lighting standards (FIFA, IAAF, ICC).

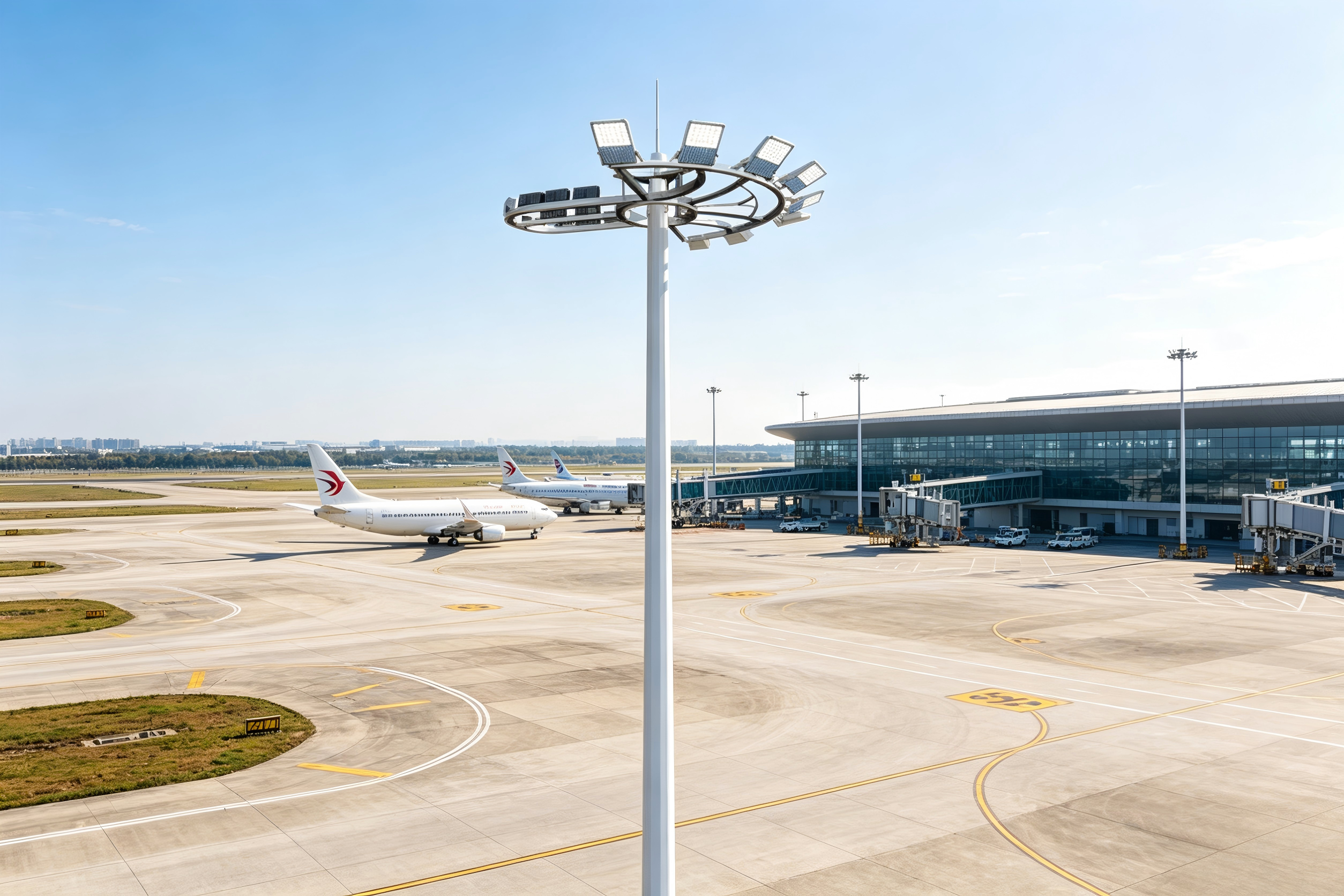

International Airports
Illuminate aircraft parking aprons, taxiways, and maintenance areas. Designed to minimize glare for pilots and ground crew. FAA-compliant optical design ensures safe nighttime operations without interference to navigation systems.

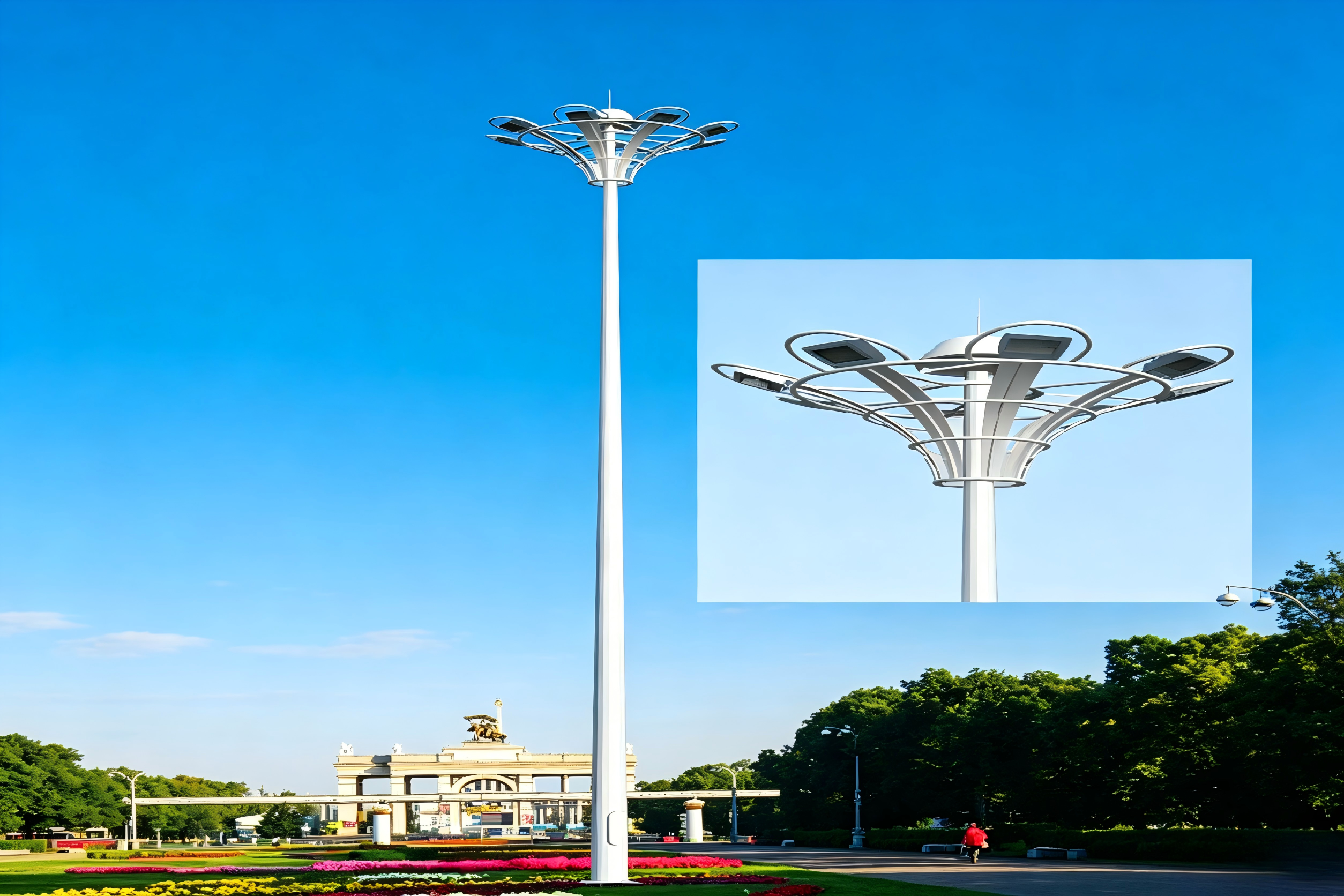

Industrial Parks & Manufacturing
Cover large factory yards, logistics centers, and outdoor storage areas with minimal pole count. Explosion-proof options available for petrochemical and hazardous material facilities. Reduces maintenance frequency in production environments.

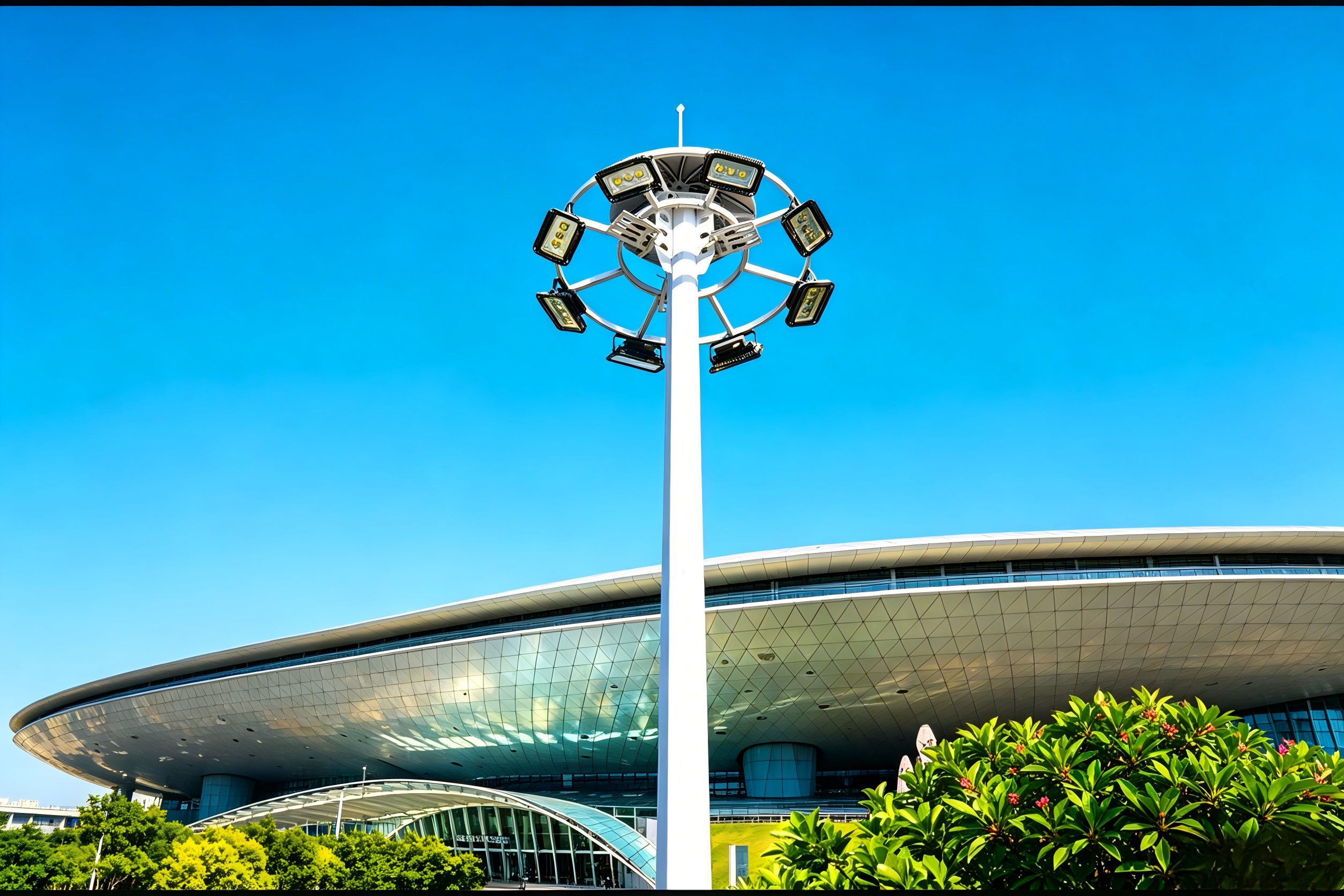

Railway Stations & Terminals
Light up passenger platforms, freight yards, and marshalling areas. Anti-vibration mounting system withstands rail traffic impact. Emergency backup power integration ensures continuous illumination for passenger safety and security.

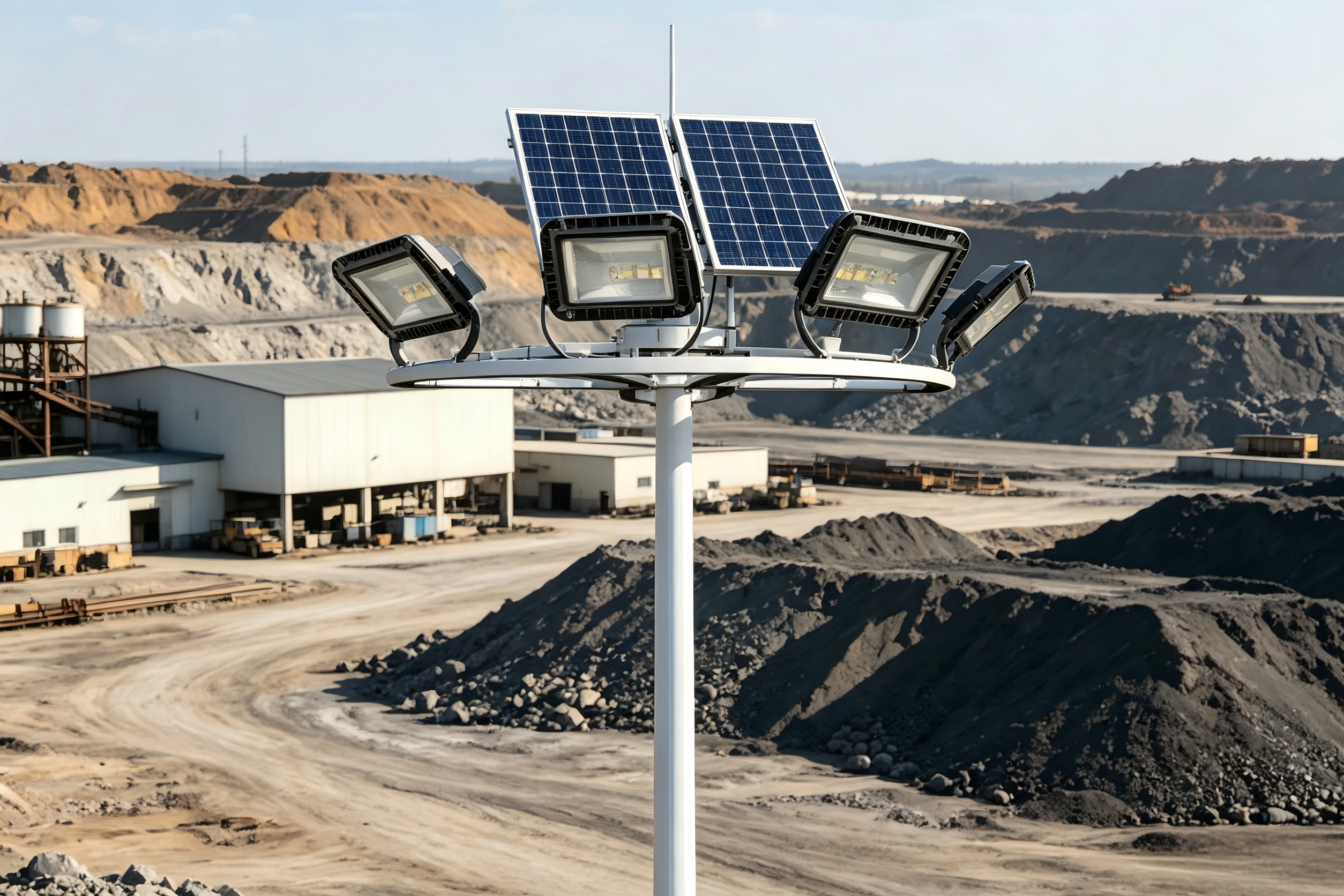

Mining & Quarry Sites
Rugged construction for extreme dust, vibration, and temperature conditions. High lumen output maintains visibility in open-pit mines and processing facilities. Solar-hybrid options available for remote sites without grid connection.

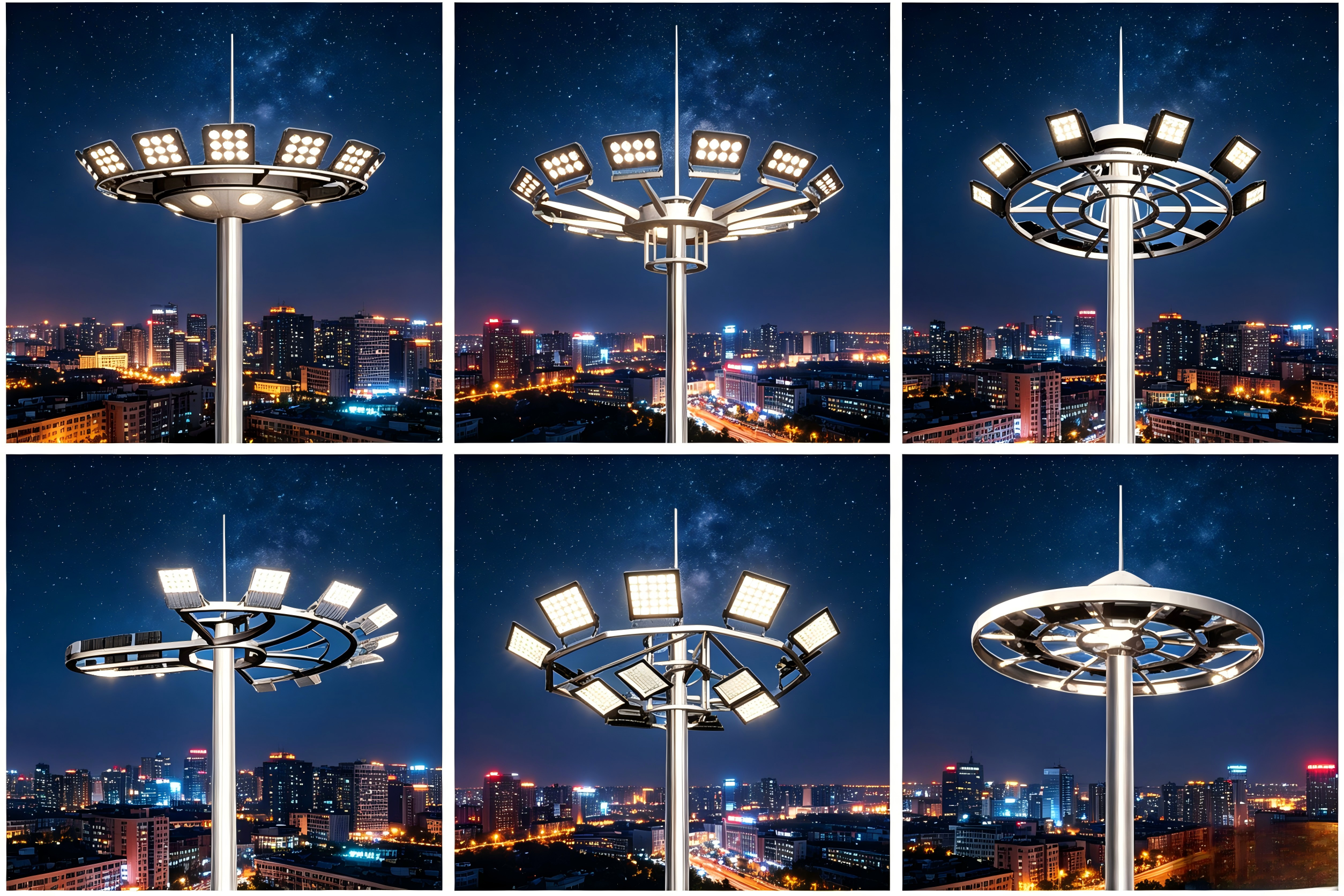

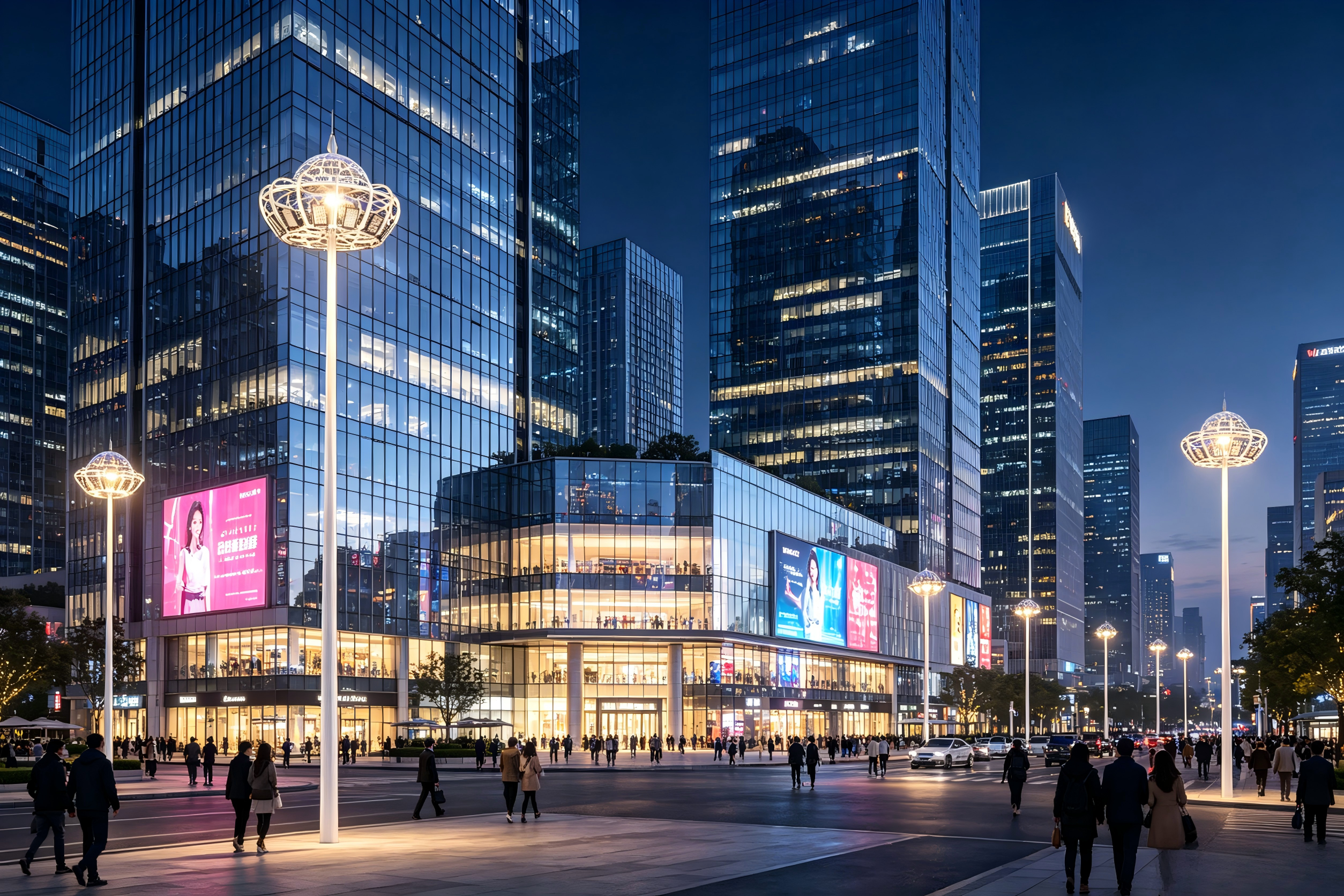

Parking Lots & Commercial Areas
Cost-effective solution for shopping centers, transit hubs, and event venues. Motion-sensing dimming reduces energy consumption during low-traffic periods while maintaining security. Improves customer experience and safety perception.

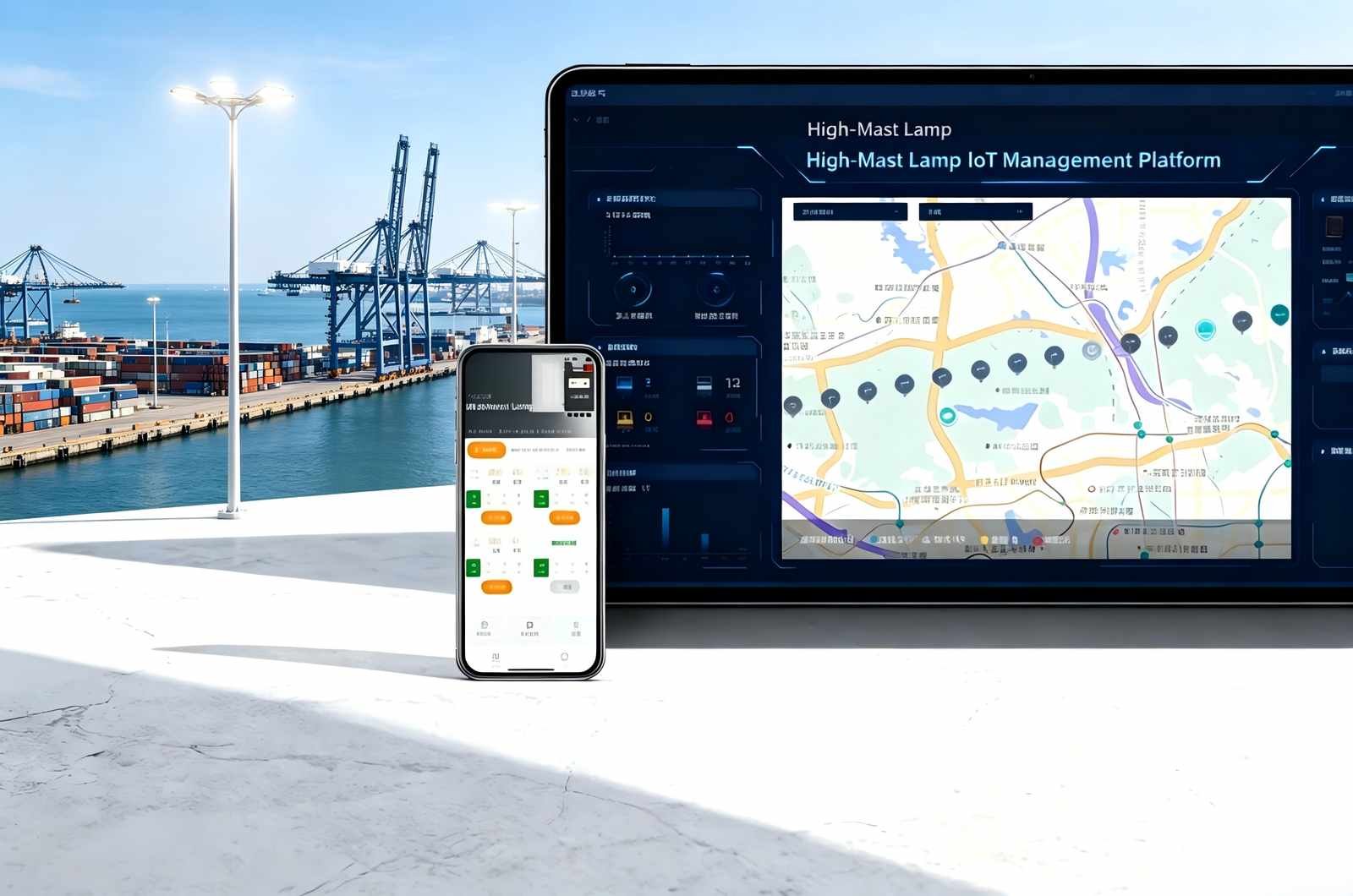

4G Lighting Control & Raola Platform
A comprehensive IoT ecosystem that transforms traditional high mast installations into smart, data-driven lighting infrastructure.
Raola Cloud Platform Capabilities
Real-Time Monitoring
Live status of every luminaire -- voltage, current, power factor, temperature, and operational hours displayed on interactive map.
Intelligent Scheduling
Astronomical clock + GPS-based sunset/sunrise auto-adjustment. Custom dimming profiles for midnight energy reduction.
Fault Detection & Alerts
Automatic fault identification (lamp failure, cable theft, door open) with SMS/email alerts to maintenance team.
Energy Analytics & Reports
Monthly/annual energy consumption reports, carbon emission reduction tracking, and ROI dashboards for project stakeholders.
Mobile App Control
iOS & Android app for on-site commissioning, group control, and emergency override -- works via 4G cellular, no local network required.
4G Controller Module
Built-in SIM slot with multi-carrier support. Communicates with cloud platform via MQTT protocol with AES-256 encryption.
Raola Cloud Server
Distributed cloud architecture with 99.9% uptime SLA. Data stored across multiple zones for redundancy and low-latency access globally.
Web & App Interface
Multi-user role management (admin, operator, viewer). GIS map view, batch operations, and customizable dashboards for large-scale deployments.
Technical Specifications
Engineered to meet international standards for highway, airport, port, and stadium applications.
Pole & Structure
| Height Range | 15m / 20m / 25m / 30m / 35m |
| Material | Q345B / Q235B Steel |
| Surface Treatment | Hot-dip galvanized ≥86μm + outdoor powder coating |
| Cross Section | Tapered octagonal / dodecagonal |
| Wind Resistance | ≤60m/s (Grade 12 typhoon) |
| Seismic Rating | Level 8 (Richter scale) |
| Lifting System | Electric motor winch, 0.2m/s speed |
LED & Electrical
| LED Power | 200W-1500W per fixture (customizable) |
| Luminous Efficacy | ≥160 lm/W (Lumileds / CREE chips) |
| Color Temperature | 3000K / 4000K / 5000K / 5700K |
| CRI | ≥70 (Ra80 available) |
| IP Rating | IP66 (fixture) / IP65 (controller) |
| LED Lifespan | ≥80,000 hours (L80B10) |
| Surge Protection | 20kV / 10kA (IEC 61643-11) |
4G Control System
| Network | 4G LTE Cat.1 / NB-IoT / 5G (optional) |
| Protocol | MQTT / CoAP / HTTP REST API |
| Dimming | 0-10V / PWM / DALI (0-100%) |
| Power Metering | ±1% accuracy, per-circuit measurement |
| Operating Temp | -40°C to +75°C |
| Security | AES-256 encryption, TLS 1.3 |
Certifications & Standards
Advanced Manufacturing Facility
Custom height & power high pole lamps available, full project solution support for global urban lighting construction.

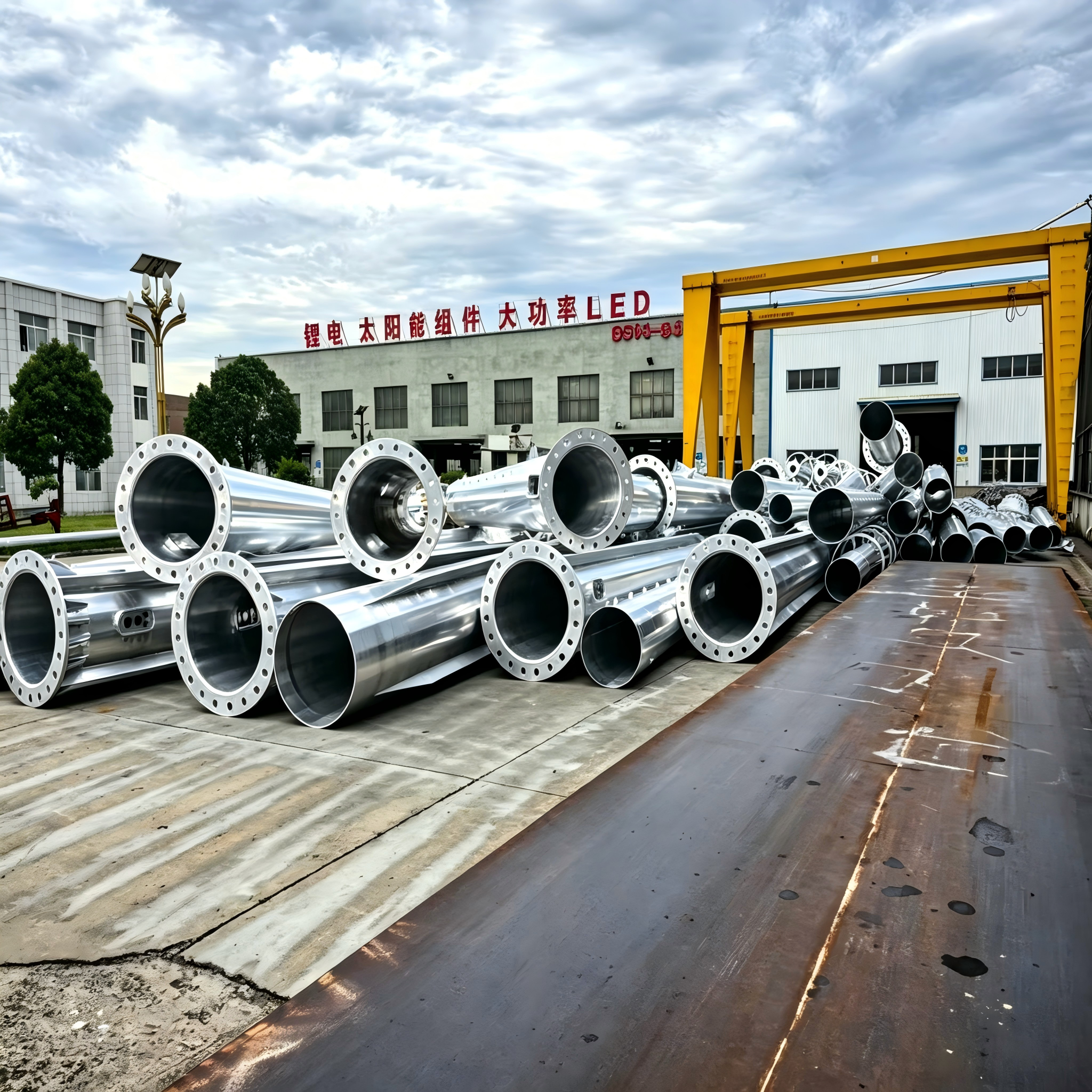

Factory Tour
27,000㎡ state-of-the-art facility with dedicated production zones

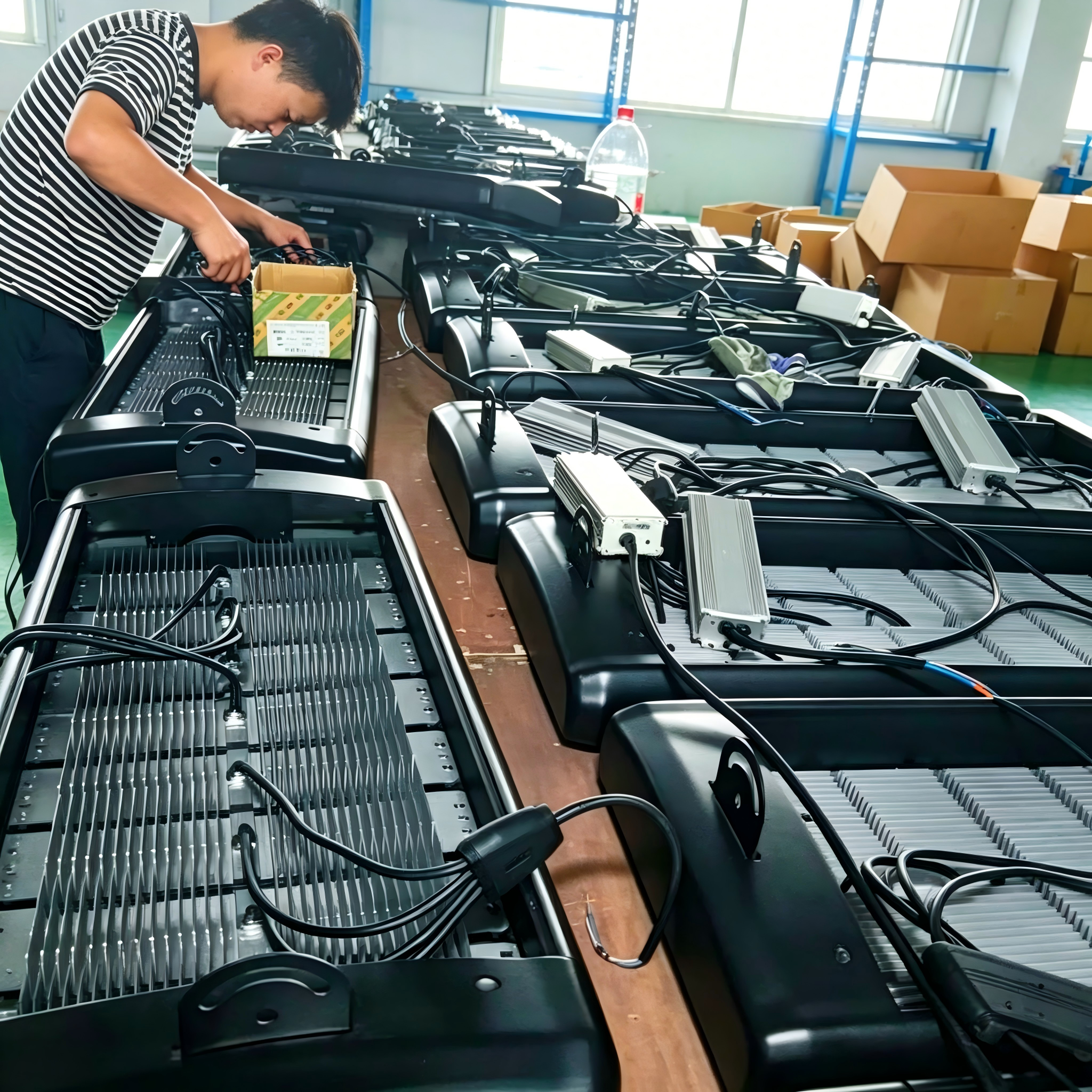

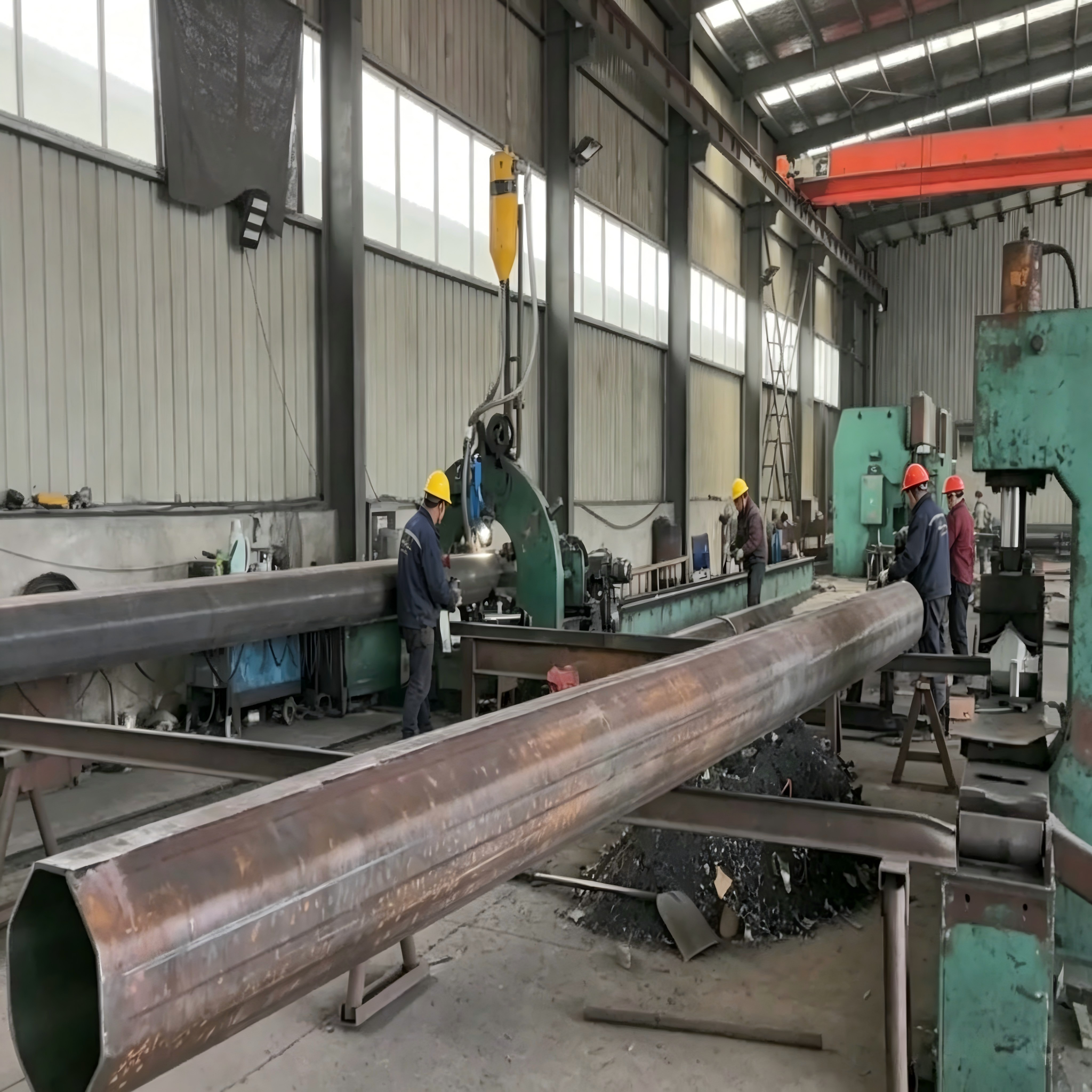

Production Lines
Automated assembly systems with 50,000 sets annual capacity
1200 × 800

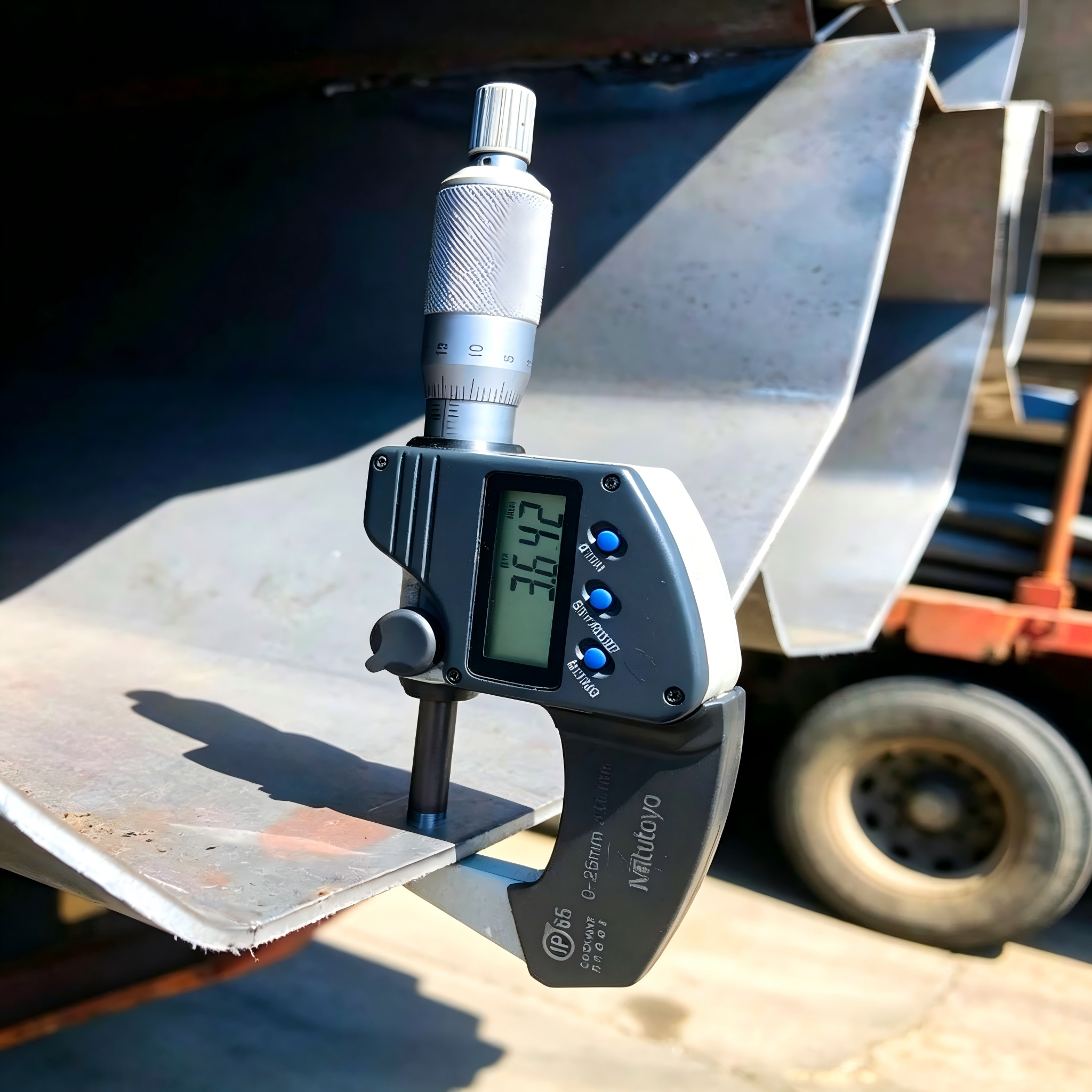

Quality Control
ISO-certified testing labs with full environmental compliance
LED Lighting Inspection
Professional quality control ensures every product meets international standards
- Luminous efficiency testing
- Waterproof grade verification (IP65/IP66)
- Aging test & lifespan assessment
- CE/RoHS/ISO certification compliance
400 × 530
Logistics Center
Advanced inventory management for global shipping operations
End-to-End Project Support
From initial consultation to commissioning and after-sales -- we manage the entire process so you can focus on winning bids.
Requirement Analysis
Site assessment, lighting simulation (DIALux), and pole layout planning
Technical Design
CAD drawings, foundation design, wind load calculations, BOM preparation
Manufacturing & QC
In-house production with SGS/TÜV inspections, factory acceptance test
Shipping & Installation
Global logistics, on-site installation guidance, and technician training
After-Sales & Spares
5-year warranty, Raola platform access, spare parts supply guarantee
