Telescopic
High Mast Light
Engineered for large-area illumination in ports, highways, stadiums, and public squares. Our telescopic high mast lights combine robust structural design with effortless lamp-panel lowering mechanisms for safe, ground-level maintenance.
Our Product Range
Precision-engineered solar and photovoltaic lighting solutions for government projects, engineering contractors, and municipal infrastructure worldwide.
All-in-One Solar Street Light
Integrated solar panel, battery, and LED lamp in a single compact unit. Ideal for rural roads and remote areas with no grid access.
Split-Type Solar Street Light
Separate solar panel and lamp head for flexible installation angles. Optimized for high-illumination municipal and highway projects.
4G / 5G IoT Smart Street Light
Network-connected intelligent lighting with remote monitoring, dimming control, and real-time energy analytics via cloud platform.

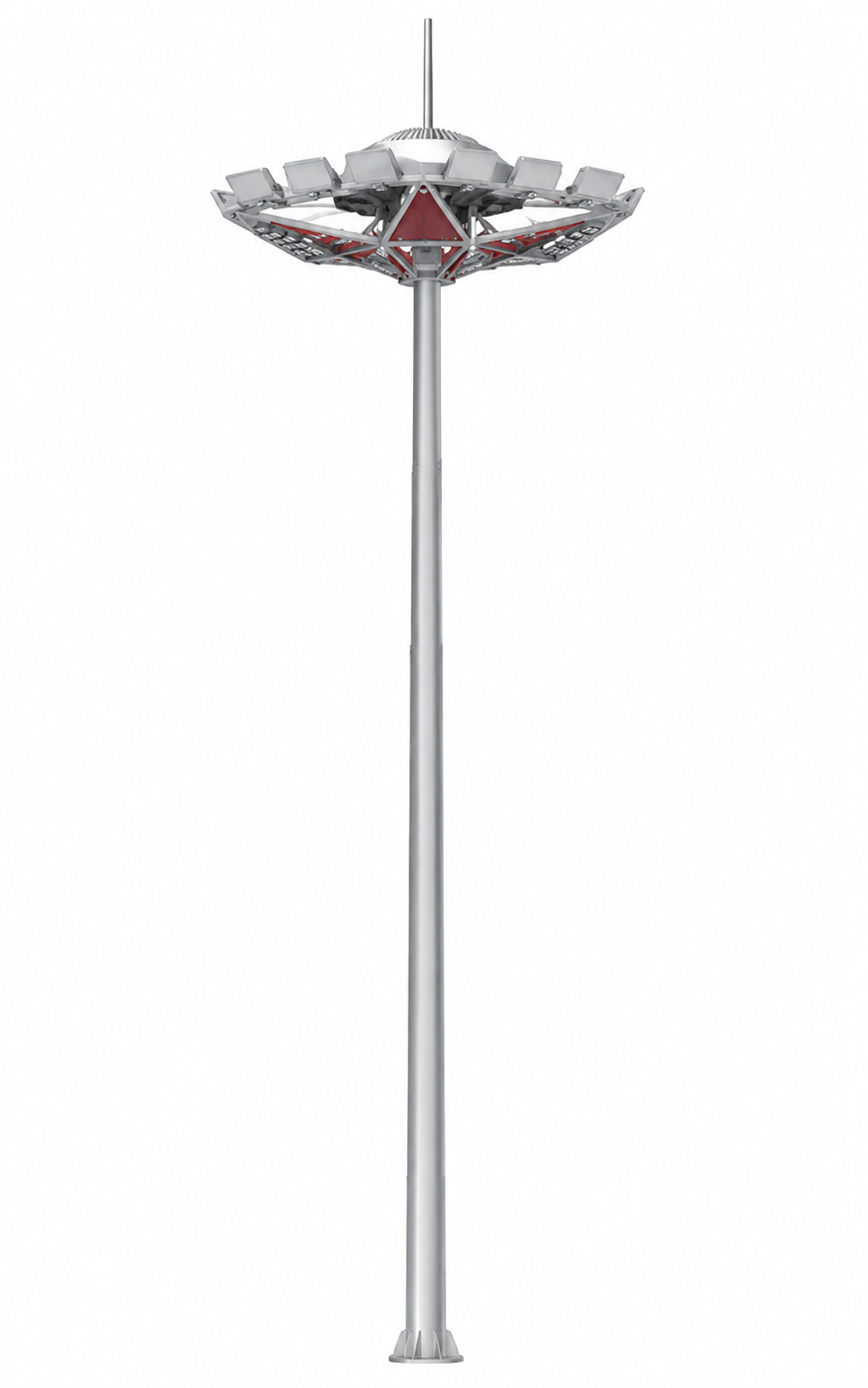

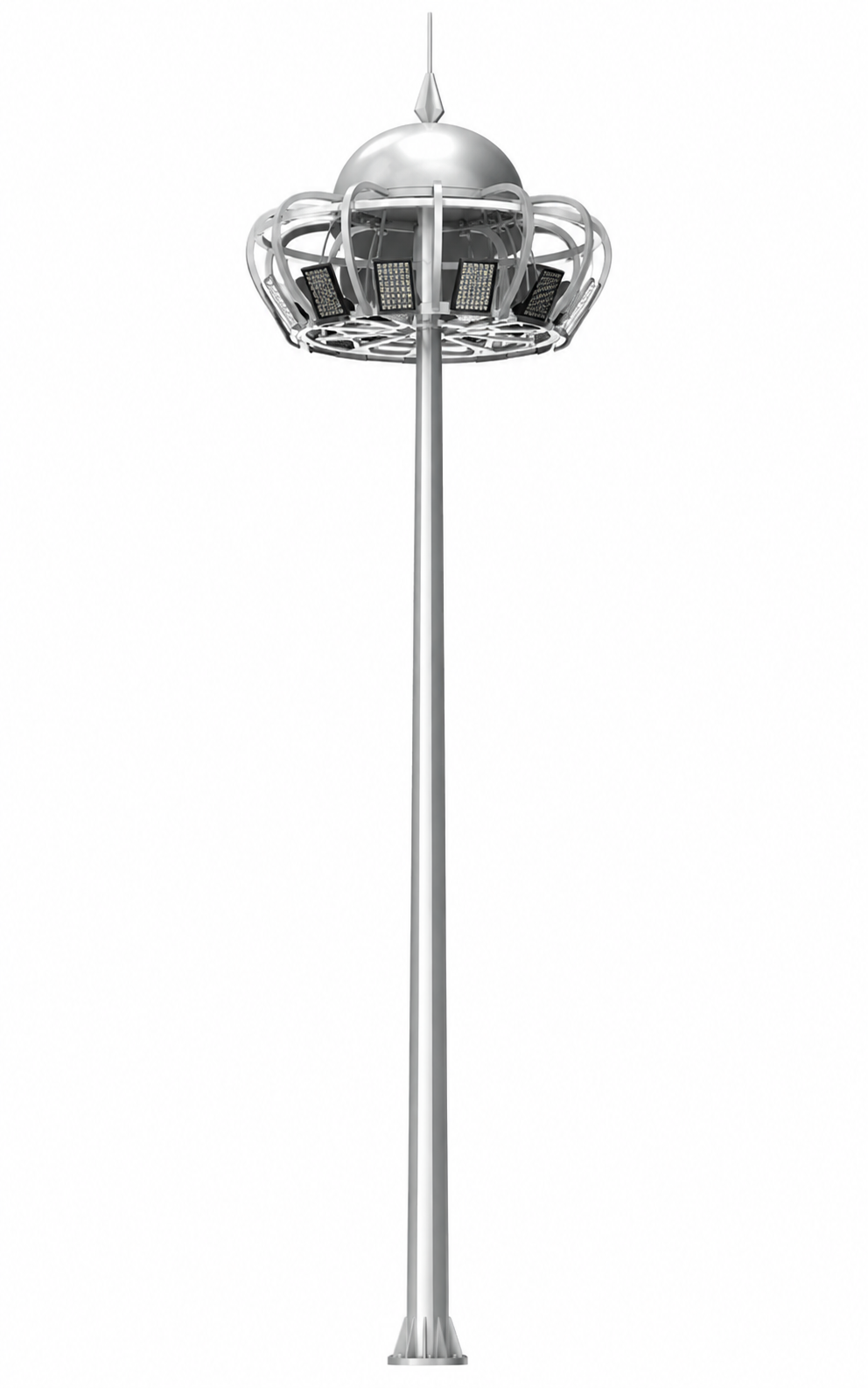

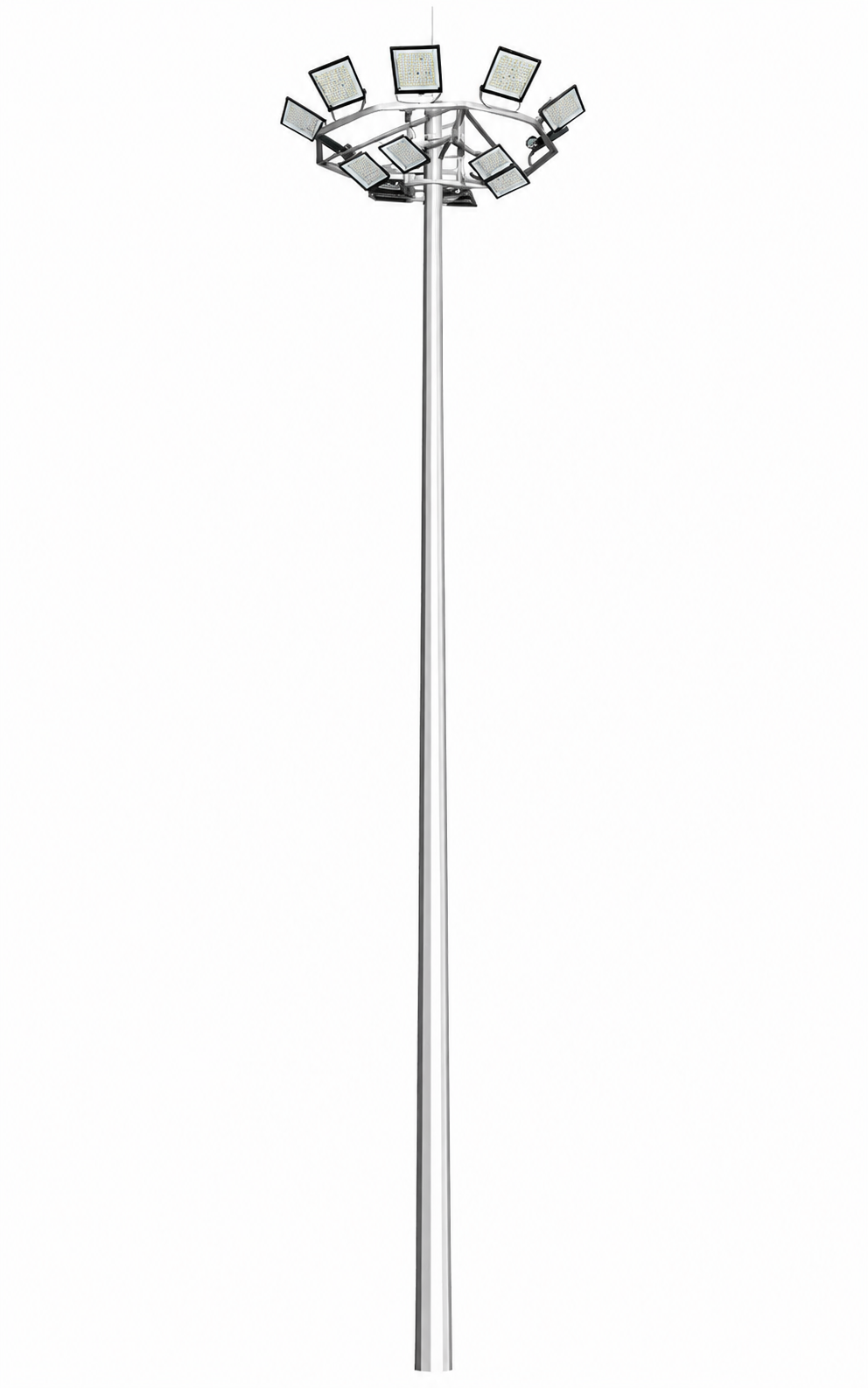

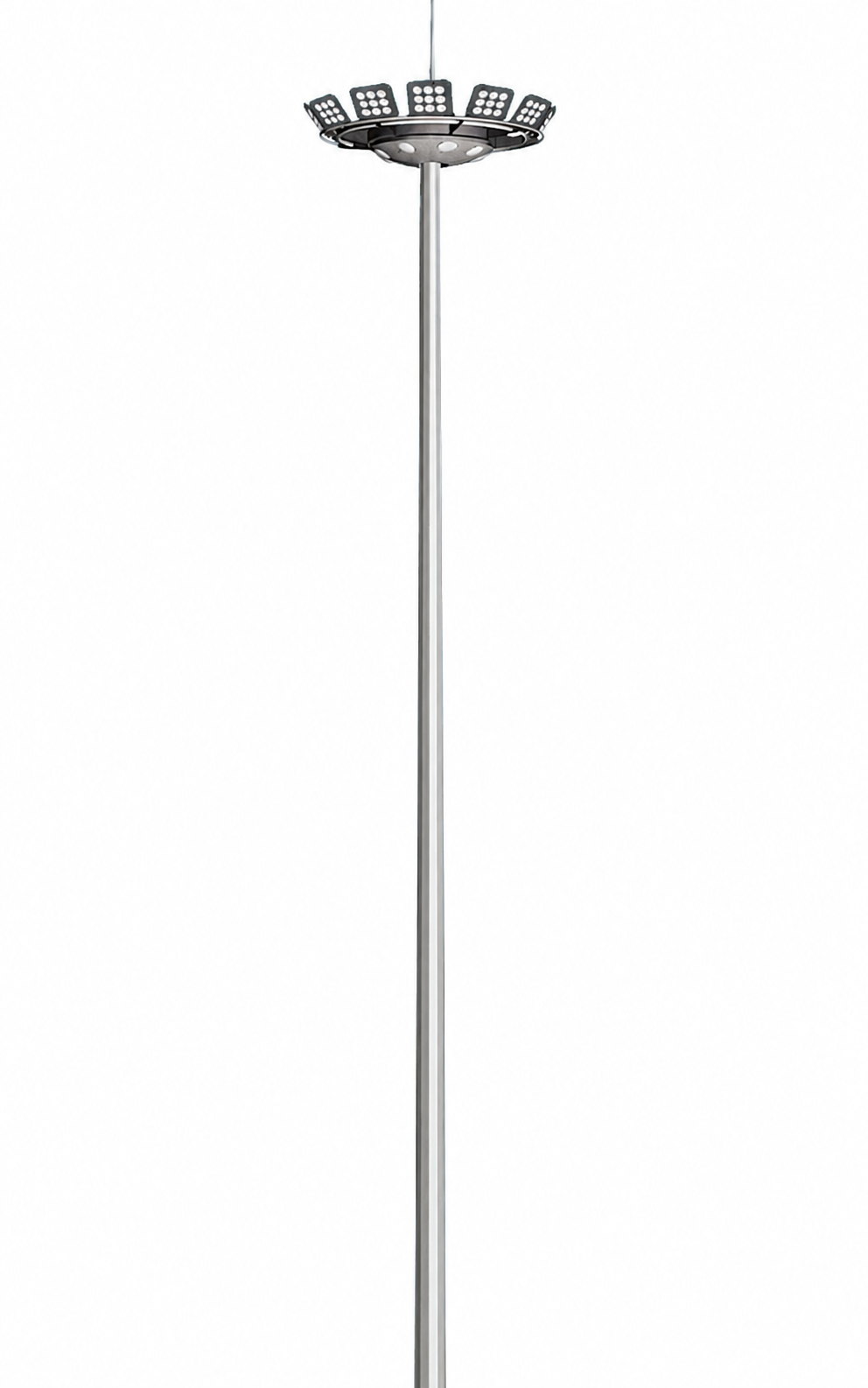

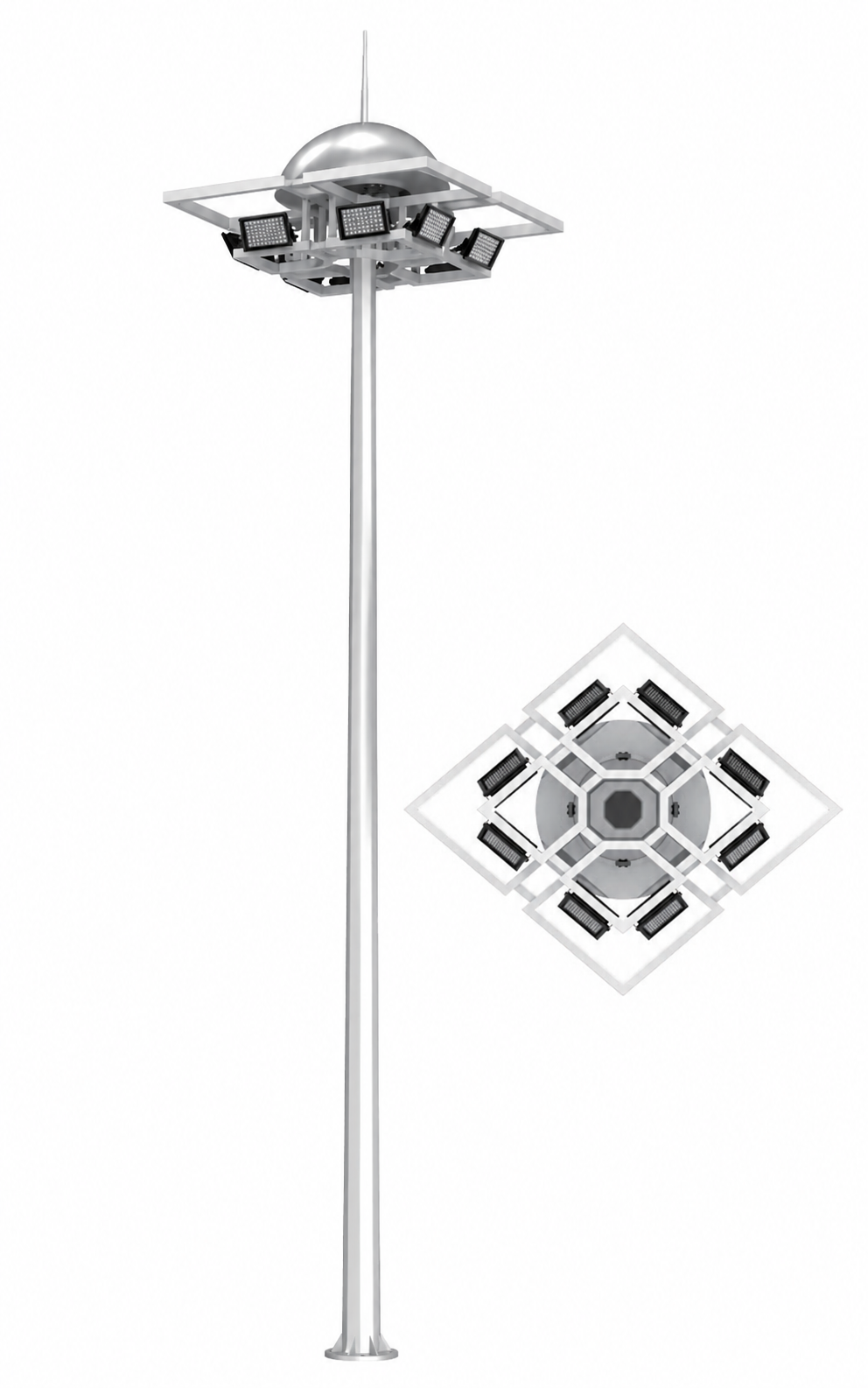

High Mast Lighting System
Heavy-duty high mast poles with multi-head LED arrays for ports, airports, stadiums, and large open-area infrastructure projects.
LED Municipal Street Lamp
High-efficiency LED road luminaires designed for city streets, expressways, and public squares. Compliant with international photometric standards.
Photovoltaic Energy Storage System
Modular LiFePO₄ battery storage integrated with solar PV arrays for off-grid and hybrid power supply in government and commercial facilities.
Solar Garden & Landscape Light
Decorative solar-powered garden luminaires for parks, residential communities, and scenic areas. Aesthetic design with reliable autonomous operation.
Solar Flood Light
High-lumen solar flood lights for security perimeters, construction sites, and outdoor event venues. Wide-angle illumination with motion sensing capability.
Smart Solar CCTV & Security Pole
Integrated solar-powered smart poles combining LED street lighting, CCTV surveillance, and IoT sensors for intelligent urban security infrastructure.
All products support OEM / ODM customization. Contact us for technical specifications and project quotations.
Request Product Catalogue50m
Max Mast Height
20000W
Max Luminaire Power
IP65
Ingress Protection
30+
Years Design Life
Product Specifications
Standard specifications for our telescopic high mast light range. Custom configurations available on request.
Mast Structure
Lamp Panel & Electrical
Electric Lowering System
Environmental & Compliance
High Mast Light
IoT Remote Dimming
Control System
Jinborui Electric's intelligent high mast lighting solution integrates 4G/5G IoT technology with advanced lamp panel upgrades, enabling real-time remote dimming, fault monitoring, and energy management for large-scale infrastructure and government projects worldwide.
Intelligent Remote Lighting Control
Our IoT-based high mast control system connects each luminaire to a centralized cloud management platform via 4G/5G communication modules. Operators can monitor, schedule, and dim individual fixtures or entire zones from any device -- reducing energy consumption by up to 60% while extending lamp lifespan.

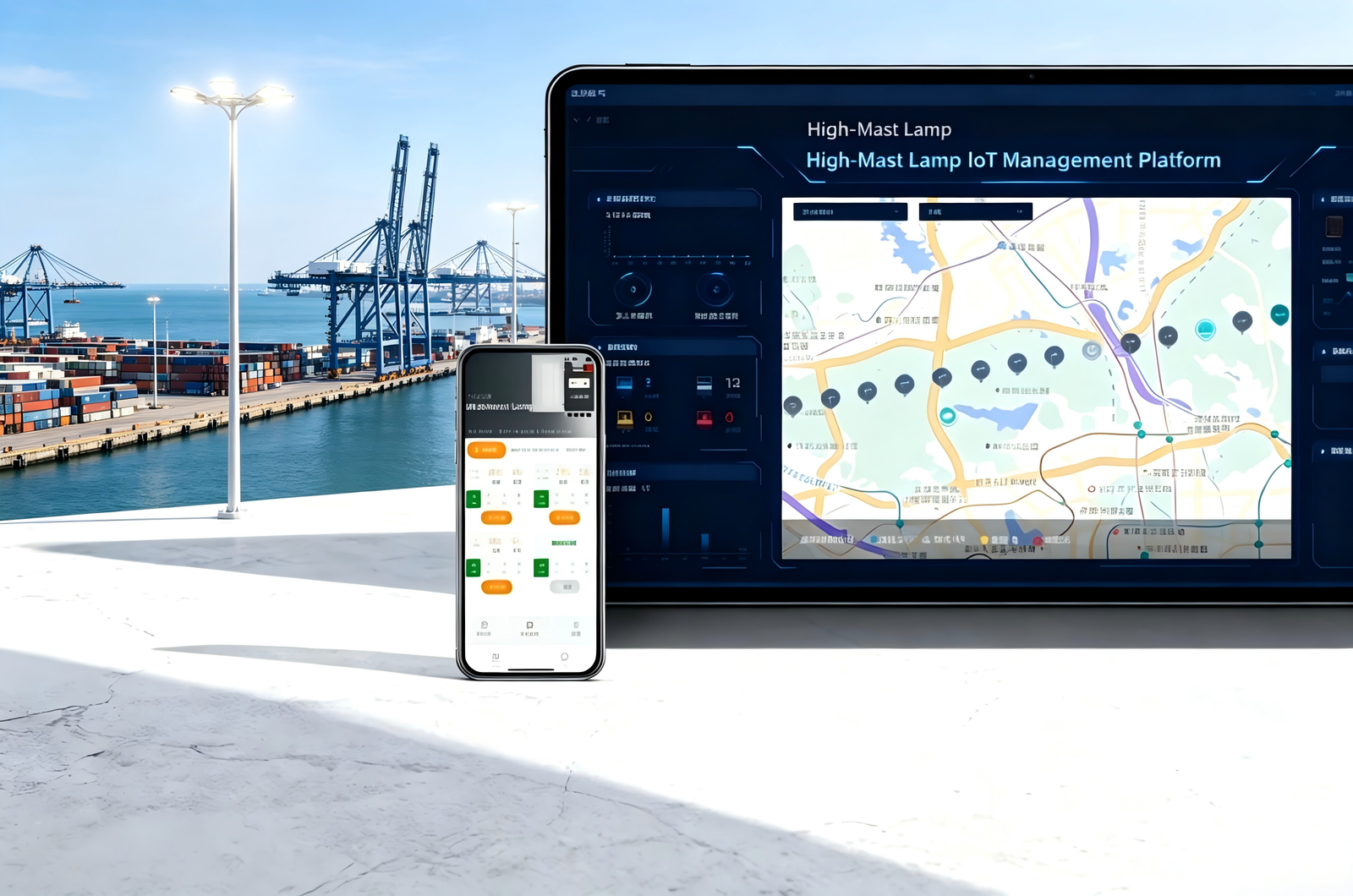

Cloud-Based Management Platform
Real-time dashboard with map-based fixture visualization, scheduling, and energy analytics accessible via web or mobile app.
0-100% Stepless Dimming
Smooth, flicker-free dimming control with programmable time-based or sensor-triggered profiles for each high mast zone.
Automated Fault Alerts
Instant push notifications for lamp failures, power anomalies, or communication loss, with GPS-pinpointed fault location.
Energy Consumption Reporting
Detailed monthly and annual energy reports with carbon reduction metrics to support government sustainability targets.
Modular Lamp Panel with IoT Integration
Jinborui's upgraded lamp panel for high mast towers is engineered for seamless IoT retrofit. Each panel integrates a dedicated communication node, individual LED driver control, and a weatherproof sensor bay -- all designed for easy field installation without replacing the entire mast structure.
Retrofit Compatible
Mounts on existing high mast structures with no civil works required.
4G/5G Node Built-In
Embedded SIM-based communication for reliable connectivity in remote areas.
Ambient Light Sensing
Auto-adjusts brightness based on real-time ambient conditions and traffic data.
IP66 Weatherproof
Sealed enclosure rated for extreme weather, dust, and coastal salt environments.
| Specification | Value |
|---|---|
| Communication | 4G LTE / 5G NR |
| Dimming Range | 0% - 100% (0.1% step) |
| Power Supply | AC 220V / 110V ±15% |
| Operating Temp. | -40°C to +70°C |
| Protection Rating | IP66 / IK10 |
| Certifications | CE, RoHS, FCC |
End-to-End IoT Control Flow
A three-tier architecture connecting field devices, edge controllers, and cloud management for seamless high mast lighting operations.
Smart Luminaire Nodes
Each high mast lamp panel hosts an embedded IoT node with individual LED driver, power metering, and 4G/5G modem for direct cloud communication.
- Per-fixture dimming control
- Real-time power metering
- Ambient & motion sensing
Gateway & Edge Controller
Cabinet-mounted edge gateway aggregates data from multiple mast nodes, executes local automation rules, and maintains offline operation during network interruptions.
- Local schedule execution
- Offline failsafe mode
- Multi-protocol support
Central Management Platform
Web and mobile dashboard providing city-wide visibility, OTA firmware updates, role-based access control, and API integration with municipal management systems.
- GIS map-based control
- OTA firmware updates
- Open API / third-party integration
Why Choose Jinborui IoT High Mast System
Proven across 200+ government projects in 30+ countries, our system delivers measurable operational and financial benefits.
Energy Savings
Compared to conventional non-dimming high mast installations.
Fault Response
Average time from fault detection to maintenance team dispatch notification.
System Uptime
Guaranteed by redundant communication paths and offline failsafe mode.
Countries Deployed
Including World Bank funded infrastructure and government municipal projects.

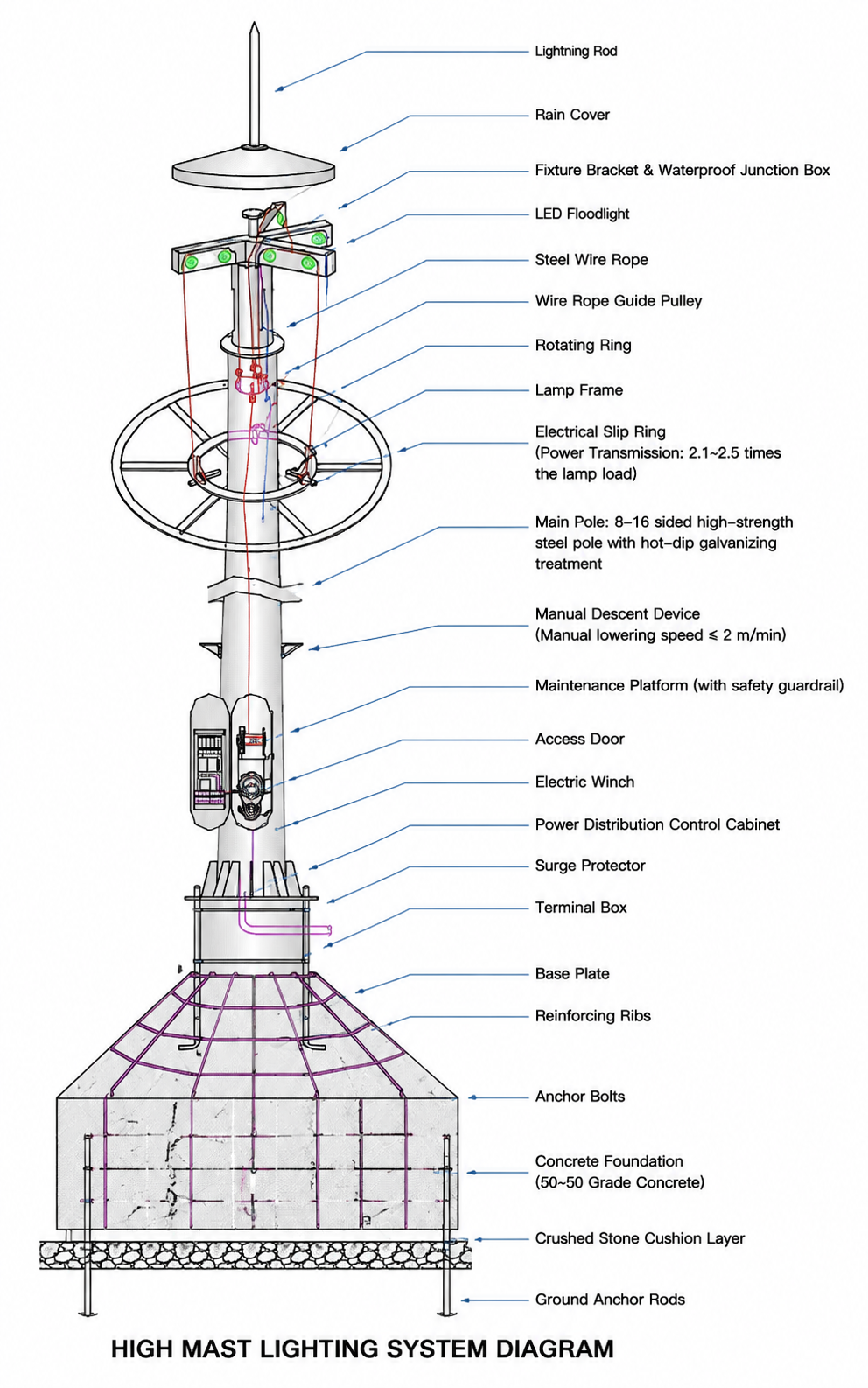

How High Mast Lights Achieve Their Lifting & Lowering Function
High mast lights use a motorized winch and stainless steel wire rope system to raise and lower the lamp panel along the mast. When maintenance is required, the built-in electric hoist smoothly descends the luminaire ring to ground level, allowing technicians to service or replace lamps safely without climbing -- then hoists it back and locks it securely at operating height.
Engage the Winch System
Access the ground-level control cabinet and activate the electric winch via the dedicated control panel or wireless remote to begin the lowering sequence.
Controlled Descent
The high-tensile stainless steel wire rope pays out at a regulated pace of approximately 1.5 m/min, guiding the lamp panel ring steadily down the mast shaft.
Ground-Level Maintenance
With the lamp panel landed safely at ground level, crews can execute all maintenance tasks -- bulb replacement, optical cleaning, cable inspection -- without elevated access equipment.
Hoist & Secure
After all servicing is confirmed complete, the winch retracts the panel to full operating height. The built-in limit switch triggers automatically and the safety lock clicks into place.

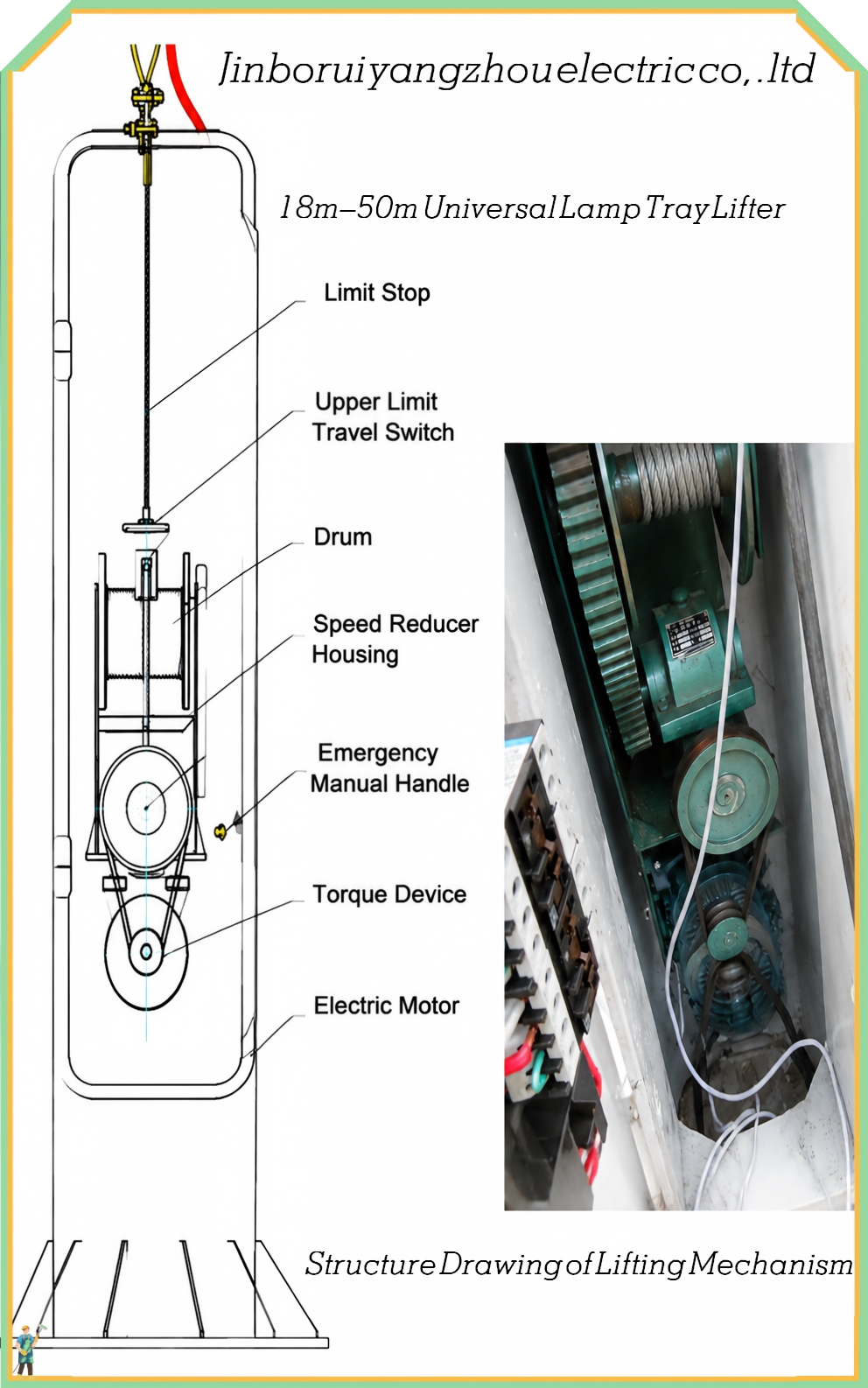

Step 1
Control Cabinet Interior
Step 2
Winch & Wire Rope System

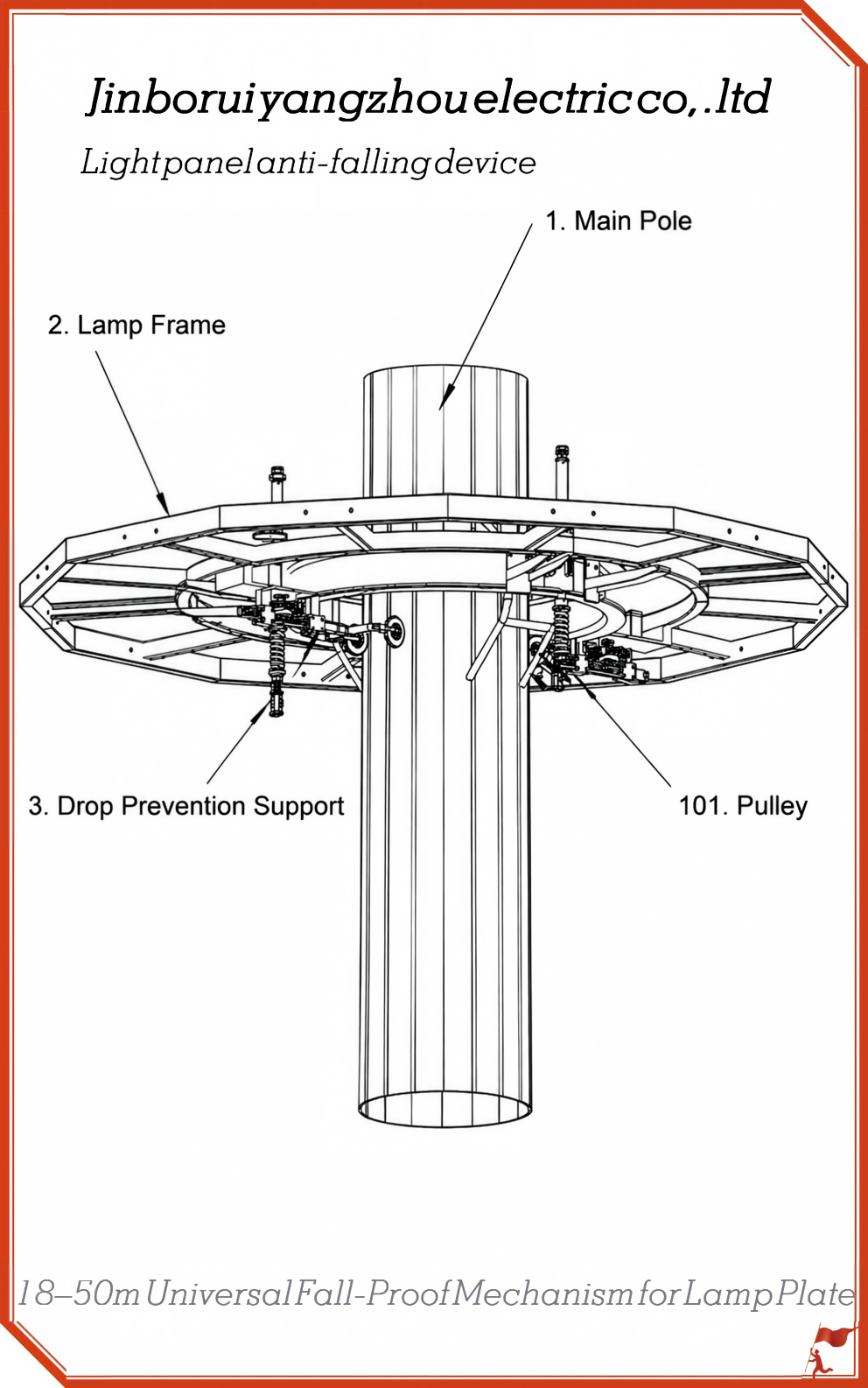

Step 3
Lamp Panel Ring Assembly
