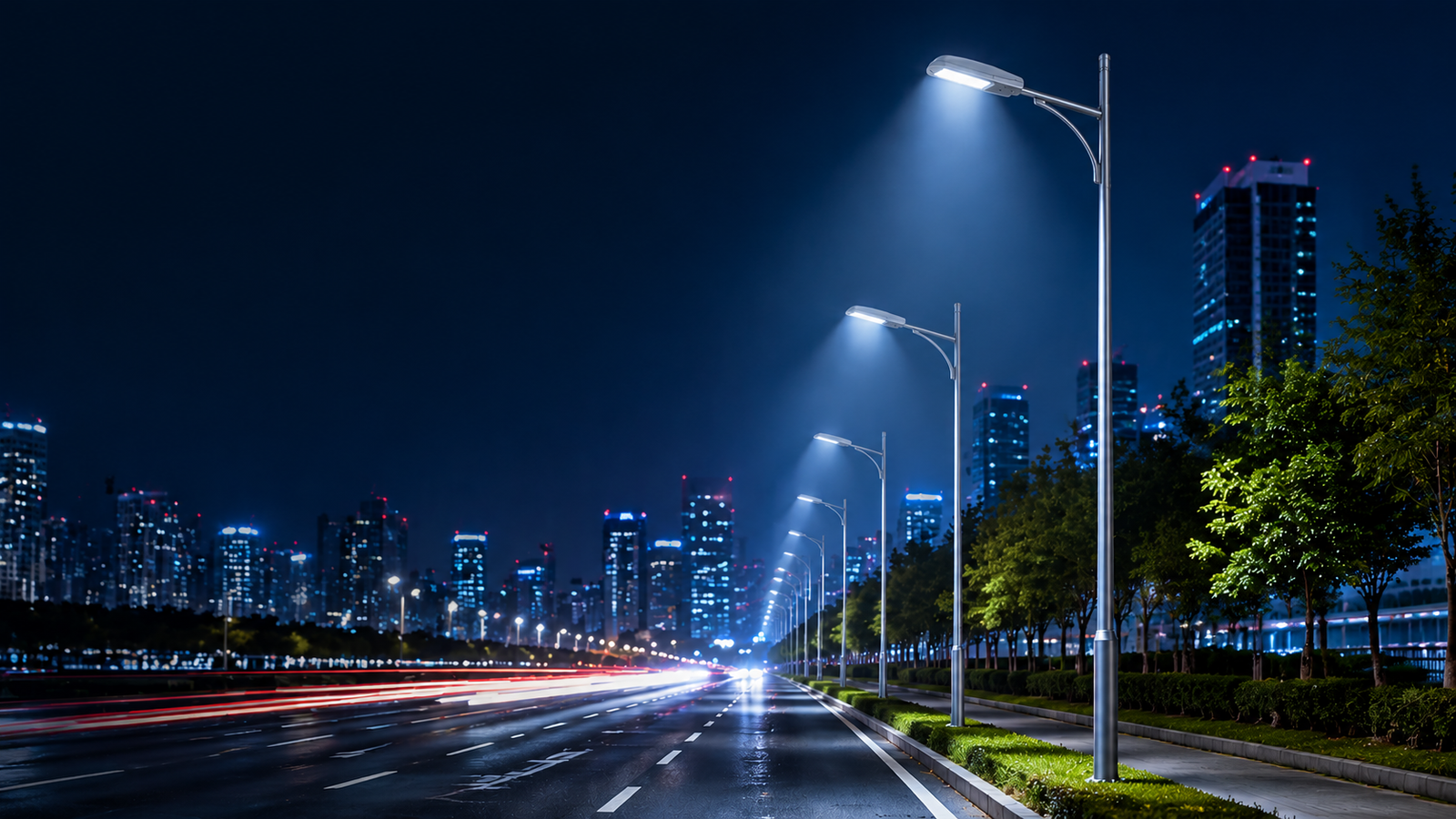

Urban LED
Street Light
High-performance LED street lighting engineered for modern urban infrastructure. Delivering superior illumination, energy efficiency, and long-term reliability for city roads, residential zones, and public spaces.
Our LED Street Light Range
From municipal roadways to highway corridors, our LED street lights deliver superior illumination with smart controls and long-lasting performance.

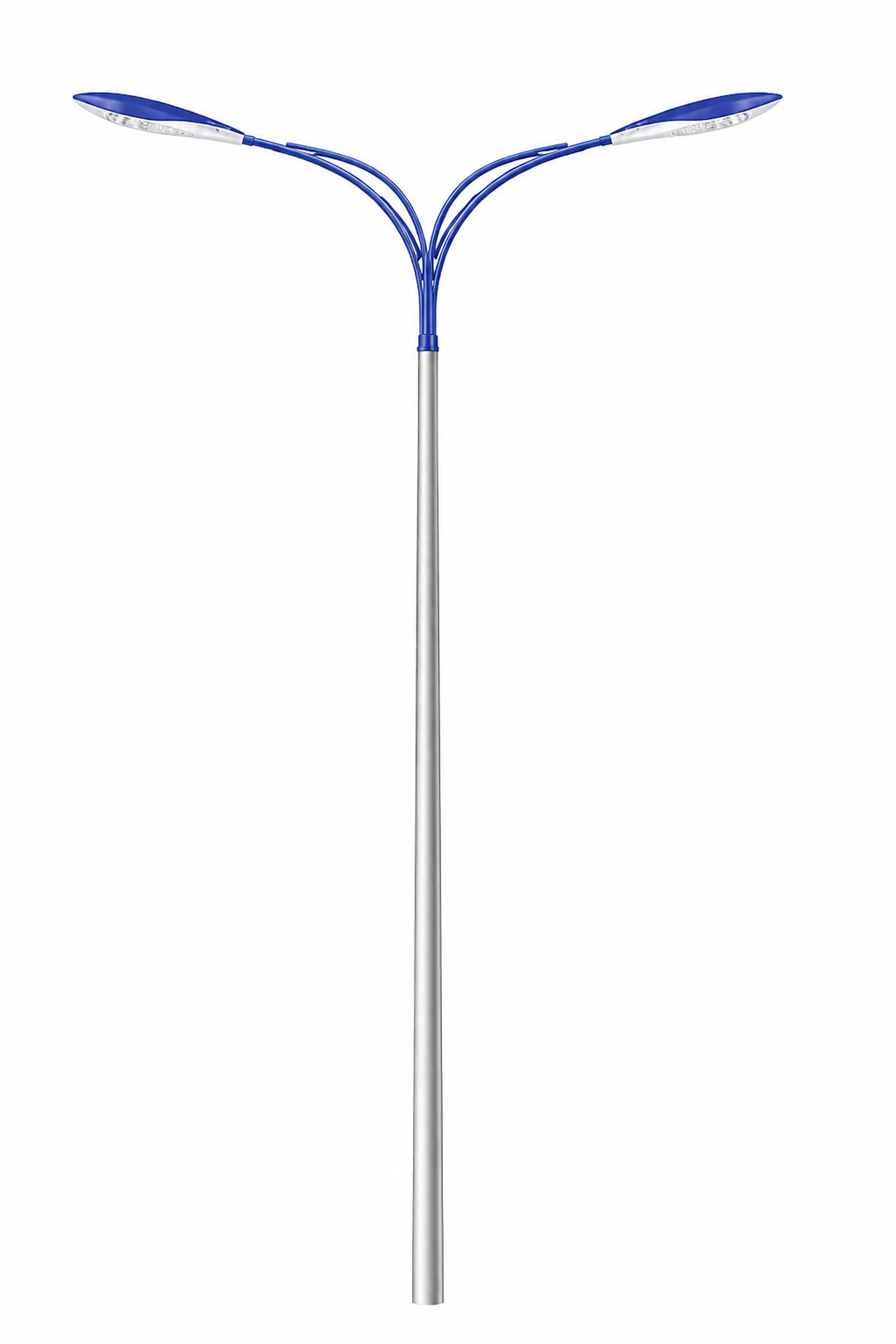

Split-Type Solar LED Street Light
Modular solar panel and lamp head design for flexible installation on highways and arterial roads.

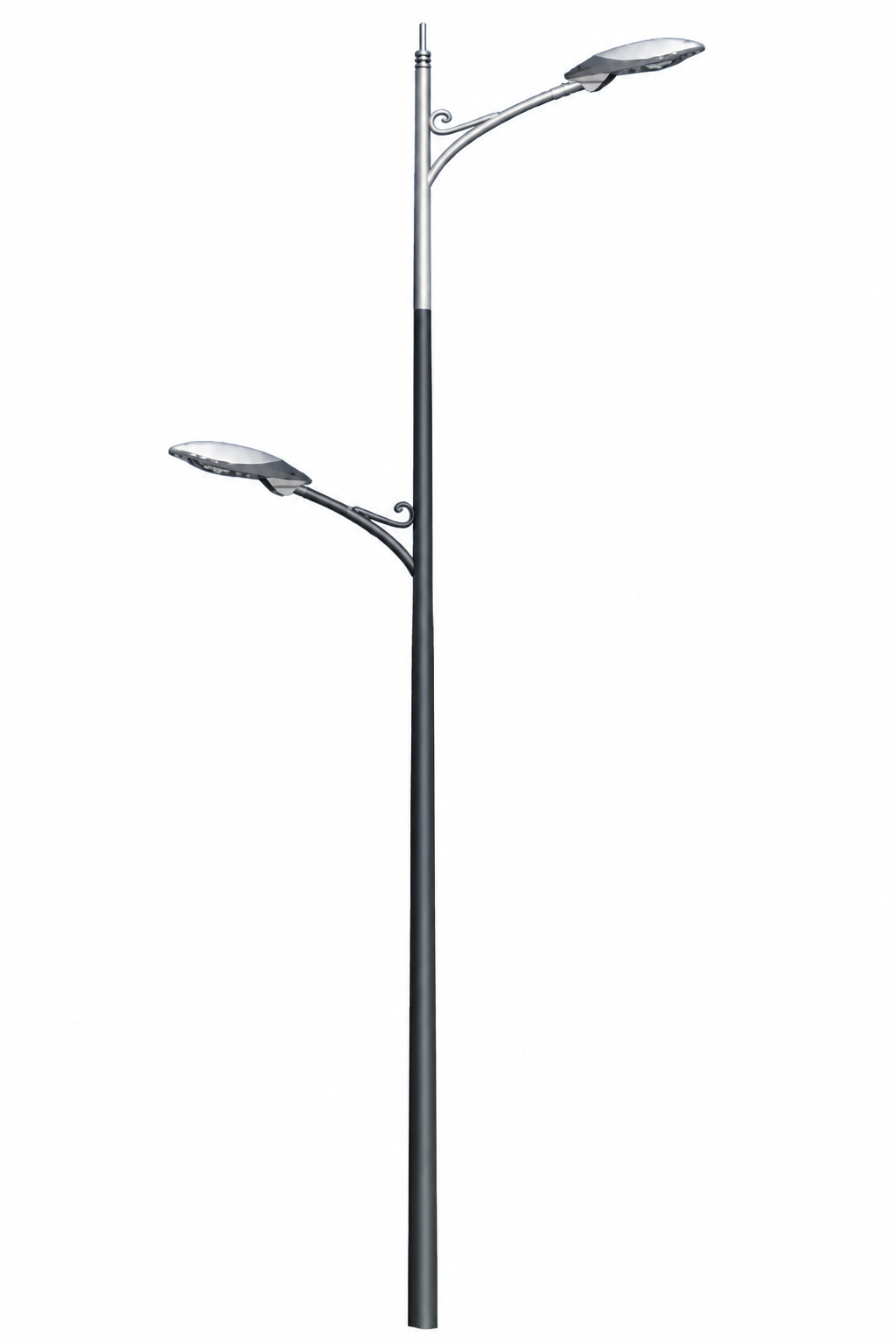

All-in-One Integrated LED Street Light
Compact integrated design housing solar panel, battery, and LED chip in a single unit for rapid deployment.

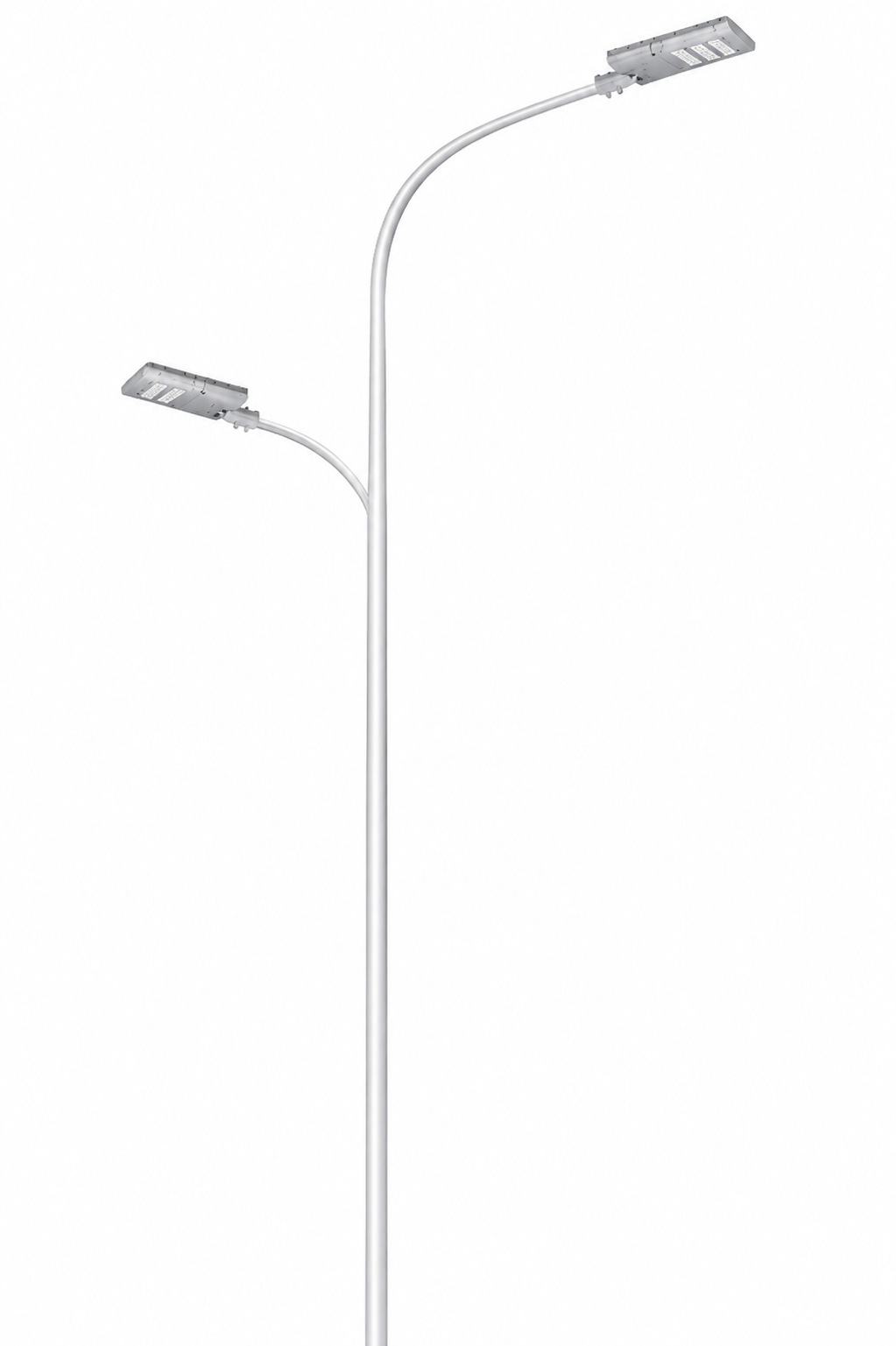

High-Power Municipal LED Street Light
Heavy-duty LED fixtures rated 150W-300W, designed for wide urban boulevards and government infrastructure projects.

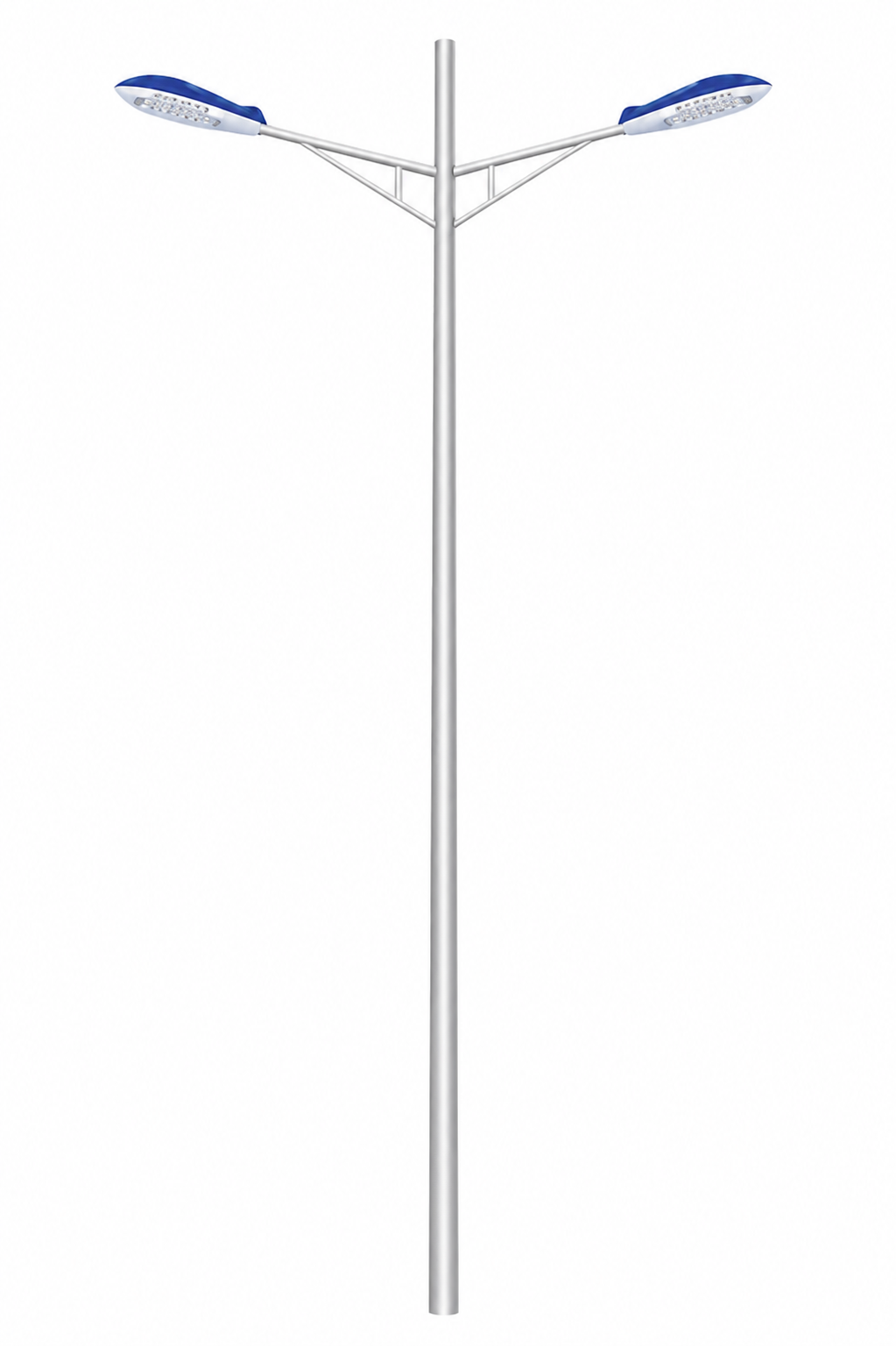

Smart 4G/5G IoT LED Street Light
Network-connected intelligent street lights with remote dimming, fault detection, and real-time energy monitoring via IoT platform.

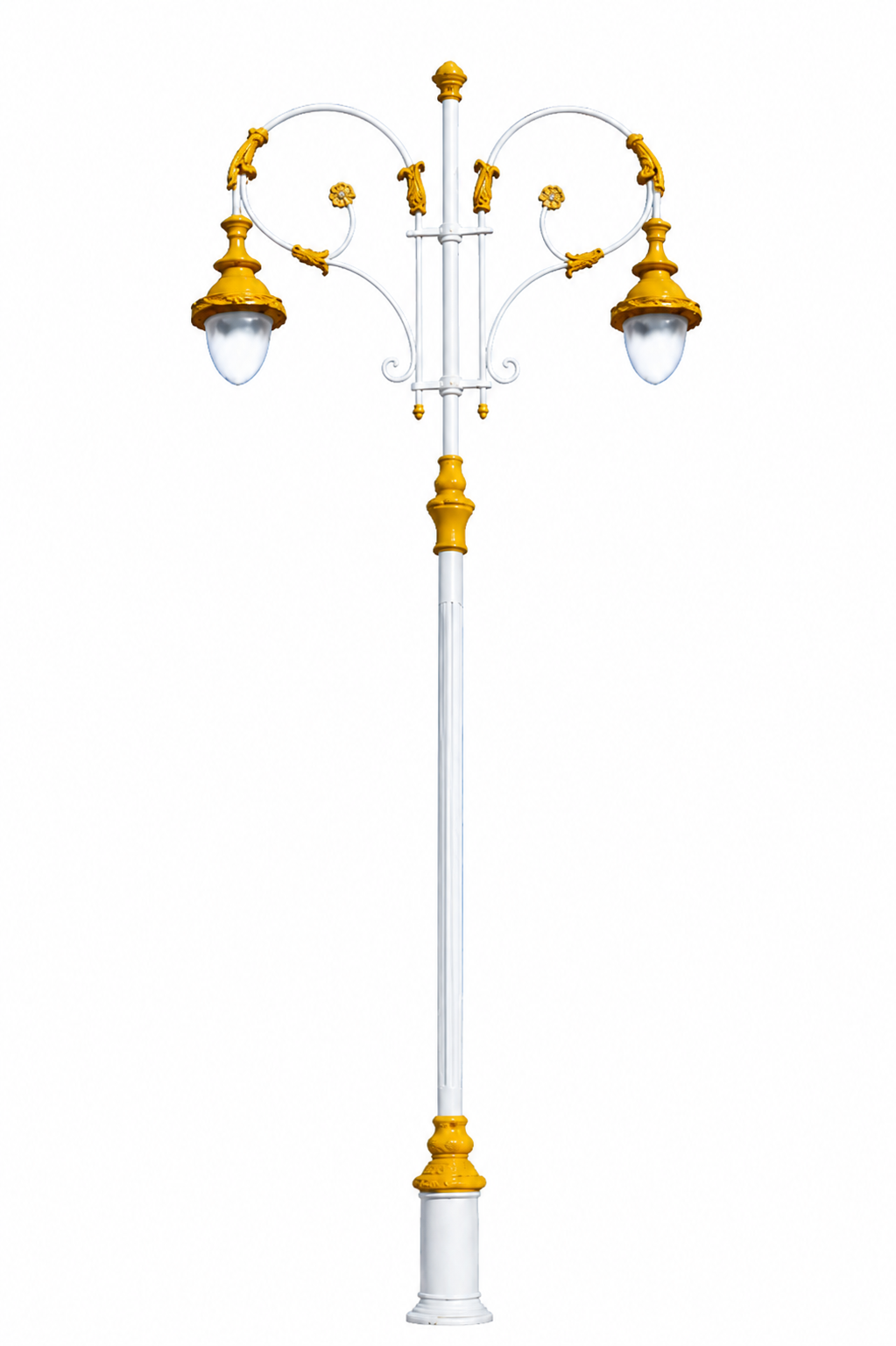

Slim Die-Cast Aluminum LED Street Light
Aerodynamic slim-profile housing with superior heat dissipation, IP66-rated for harsh weather environments.
Highway High-Mast LED Flood Light
Ultra-bright LED flood lighting for expressways, interchanges, and large open areas, mounted on poles 20m-40m tall.

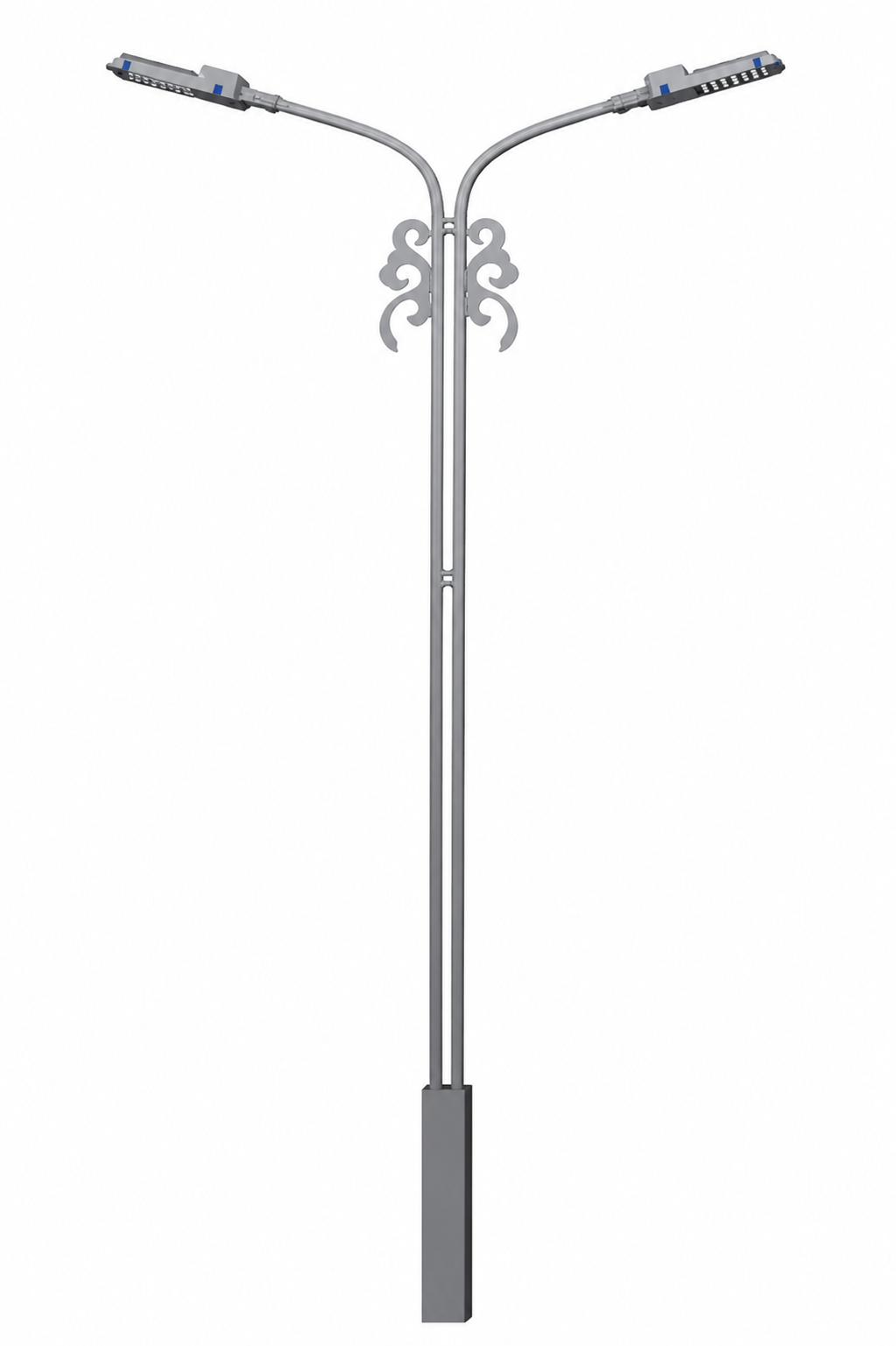

Decorative Garden LED Street Light
Elegant landscape-grade LED luminaires combining aesthetic design with energy-saving performance for parks and pedestrian zones.

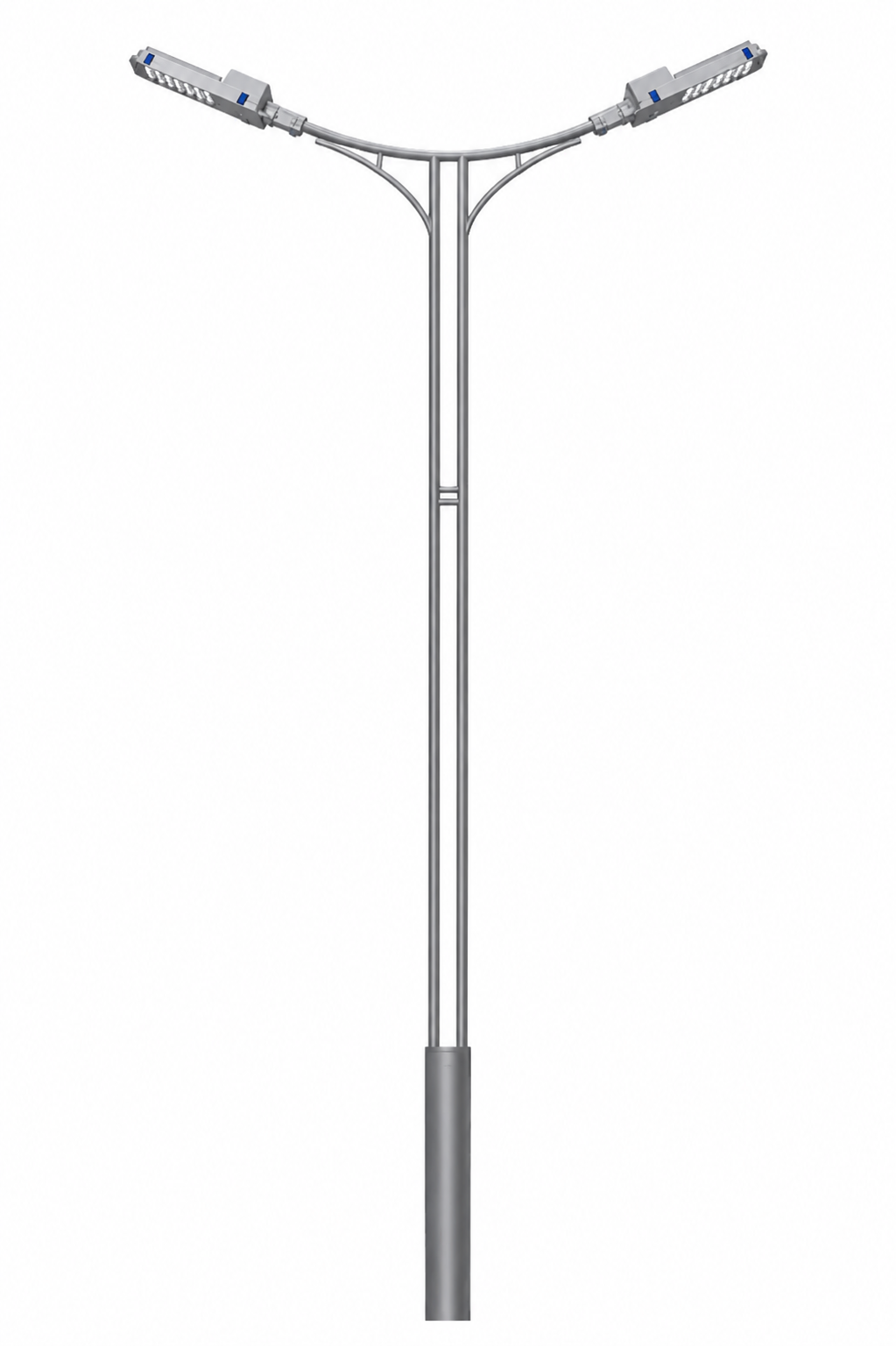

Motion-Sensor LED Street Light
PIR motion-activated dimming technology reduces energy consumption by up to 70% on low-traffic roads and pathways.
Corrosion-Resistant Coastal LED Street Light
Salt-spray-tested housing with marine-grade coating, purpose-built for coastal cities, ports, and high-humidity regions.

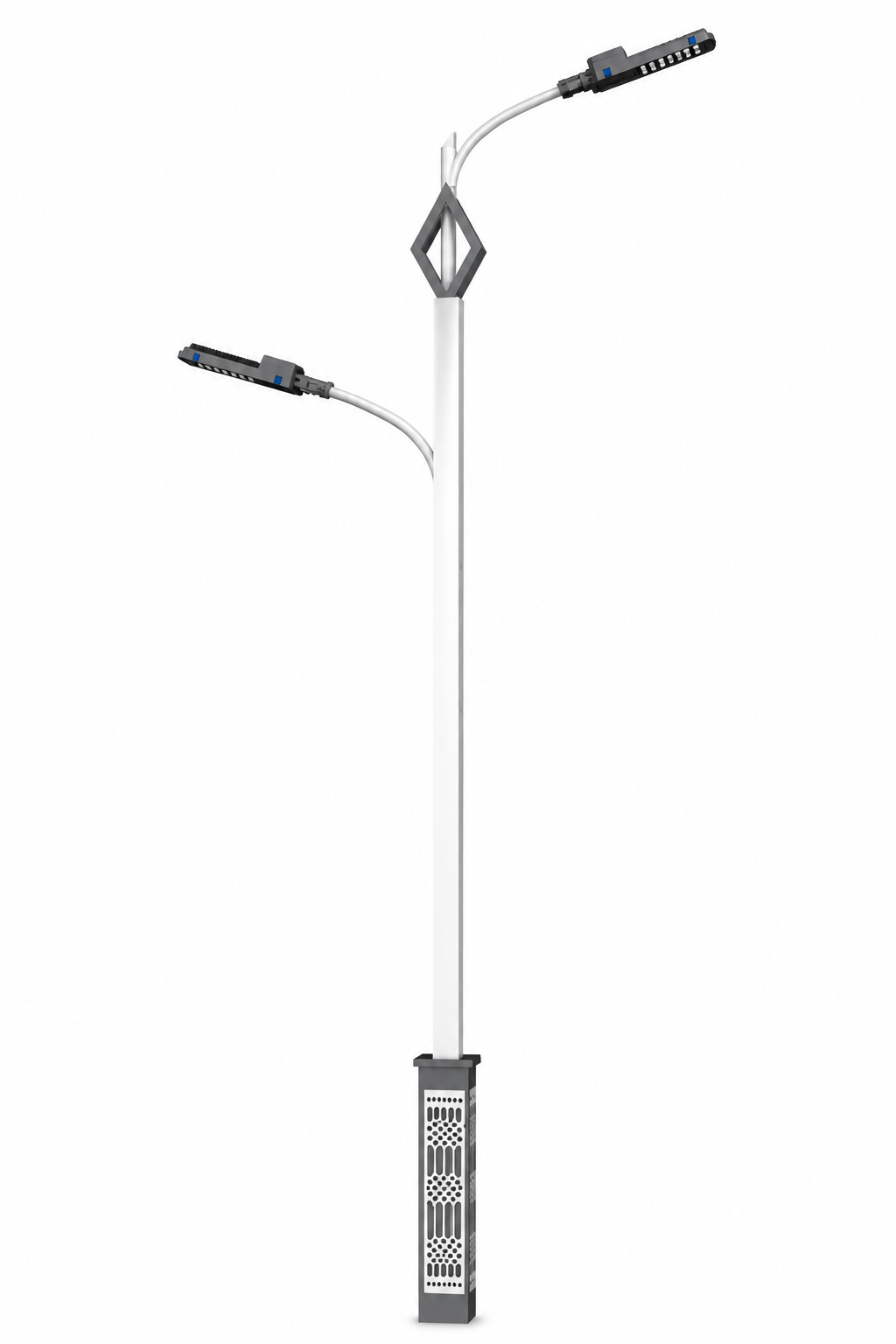

Dual-Arm LED Street Light
Double-head configuration covering both sides of wide roads simultaneously, reducing pole count and installation costs.
Retrofit LED Street Light Module
Drop-in LED replacement modules compatible with existing HPS and MH street light housings -- upgrade without changing poles.
OEM/ODM Custom LED Street Light
Fully customizable LED street light solutions -- from wattage and optics to housing shape and branding -- tailored to your project specifications.
Need a Custom LED Street Light Solution?
Our engineering team provides DIALux simulations, CAD drawings, and full OEM/ODM support. Contact us for a tailored quote.
Key Features
Engineering advantages that set our Urban LED Street Light apart from conventional solutions.
Ultra-High Efficacy LED
Premium Cree/Lumileds LED chips delivering >150 lm/W system efficacy. Up to 60% energy savings compared to traditional HPS street lights with equivalent or superior illumination output.
Precision Optical Design
Type II / Type III road-specific light distribution patterns. PC optical lens array minimizes spill light and glare while maximizing road surface uniformity (U₀ ≥ 0.45).
Advanced Thermal Management
Die-cast aluminum housing with integrated heat sink fins. Passive cooling design maintains LED junction temperature below 65°C, ensuring lumen maintenance L80 > 50,000 hours.
Robust Weatherproof Build
IP66 dust and jet-water proof rating. IK10 vandal resistance. Corrosion-resistant powder coating (salt spray > 1000h). Suitable for coastal, tropical, and extreme cold environments.
Intelligent Dimming Control
Built-in 0-10V / DALI / PWM dimming interface. Compatible with smart city lighting management systems. Programmable time-based dimming schedules reduce energy consumption by an additional 30%.
Tool-Free Maintenance
Quick-release driver compartment for easy on-site driver replacement without special tools. Modular LED module design allows component-level servicing, significantly reducing lifecycle maintenance costs.
Technical Specifications
Full parameter range across standard wattage configurations. Custom specifications available for OEM/ODM orders.
Custom wattage (30W-400W) and specifications available for OEM/ODM orders
Request Full DatasheetFrequently Asked Questions
Common questions from engineering companies and government procurement teams.
What wattage options are available, and can I get custom specifications?
Standard models are available in 60W, 100W, and 150W. We also offer OEM/ODM customization for wattages from 30W to 400W, custom CCT (2700K-6500K), CRI options, housing colors (RAL), and special certifications. Minimum order quantities apply for custom specifications -- contact us for details.
What certifications do your LED street lights carry?
Standard certifications include CE (EU), RoHS, and CB. Additional certifications available on request include SAA (Australia), ETL/UL (North America), ENEC, and country-specific certifications. We also provide IES photometric files (LDT/IES format) for DIALux simulation and third-party test reports from accredited laboratories (CNAS, A2LA).
Can you provide DIALux simulation and bidding document support?
Yes. This is a core service we provide to engineering companies and contractors. Our technical team will perform DIALux lighting simulations based on your road geometry, produce compliance reports against EN 13201 / local standards, develop CAD installation drawings, and prepare bidding document technical sections. This service is provided free of charge for qualified project inquiries.
What is the warranty period and what does it cover?
Standard warranty is 5 years covering manufacturing defects, LED lumen depreciation below L70, and driver failures under normal operating conditions. Extended 7-year warranty is available for large government projects. We maintain a spare parts supply guarantee and provide replacement components within 30 days. Warranty claims are handled by our dedicated after-sales team.
What is the minimum order quantity (MOQ) and typical lead time?
MOQ for standard models is 50 units. For OEM/ODM custom specifications, MOQ is typically 200-500 units depending on customization scope. Standard lead time is 15-25 working days for orders under 1,000 units. Large orders (1,000-10,000+ units) typically require 30-45 days. We maintain safety stock of standard models for urgent project requirements.
Are the fixtures compatible with smart city / IoT control systems?
Yes. All models include a 0-10V dimming interface as standard. DALI-2 and PWM interfaces are optional. For full smart city integration, we offer an optional NEMA/Zhaga socket-compatible IoT node supporting NB-IoT, LoRaWAN, or 4G/5G connectivity. This enables remote monitoring, individual fixture control, fault detection, and energy reporting via a cloud management platform.
How do LED street lights compare to HPS in terms of energy savings and ROI?
Replacing a 250W HPS with a 100W LED delivers approximately 60% energy savings while providing equivalent or superior road illuminance. With dimming, savings can reach 70-75%. Typical payback period is 3-5 years depending on electricity tariff and operating hours. Over a 10-year lifecycle, total cost of ownership is typically 40-50% lower than HPS, factoring in reduced maintenance (no lamp replacements) and energy costs. We provide detailed ROI calculations on request.
Can the fixtures operate in extreme climate conditions (desert heat, tropical humidity, arctic cold)?
Standard models operate from -40°C to +55°C, covering most global climate zones. For coastal and high-humidity environments, we offer enhanced corrosion protection (marine-grade coating, stainless steel fasteners). For desert climates above 50°C ambient, we provide high-temperature driver configurations. Salt spray resistance exceeds 1,000 hours per IEC 60068-2-11. Contact us with your specific climate data for a tailored recommendation.
Have More Questions?
Our engineering team is available to answer project-specific technical questions, provide samples, and prepare custom quotations.
