Solar Street Light Series

All in One Solar Street Light
Manufacturer with LED Pole

As a professional integrated solar street light battery & all‑in‑one solar street light manufacturer, Jinborui provides high‑performance all in one solar street light solutions integrating solar panels, LiFePO4 batteries, LED lighting, and smart controllers for roads, parks, and government projects.

12+ Years LED Pole Solar Light Supply Integrated Design Motion Sensor IP66 Waterproof OEM/ODM Available

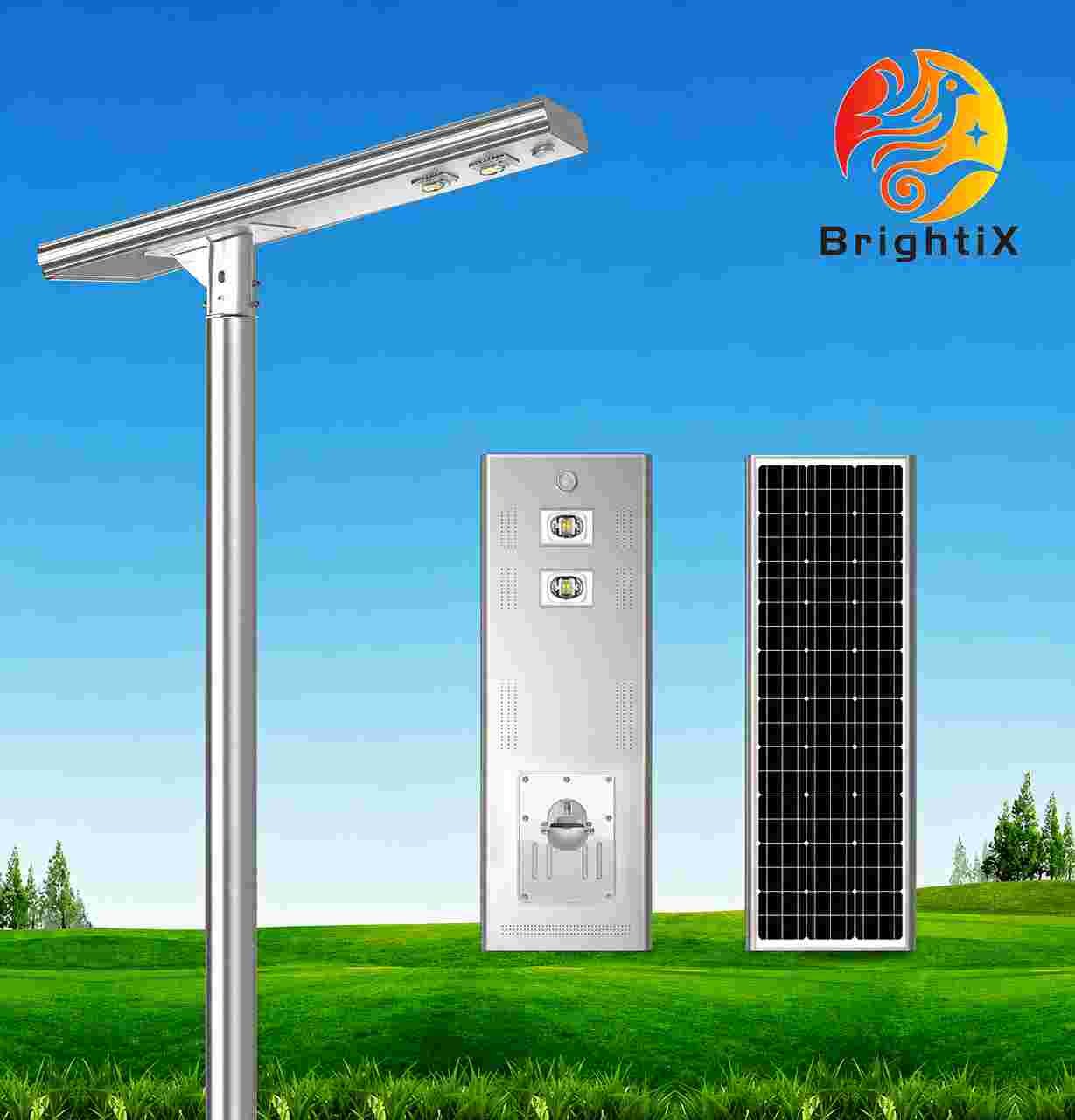

All in one solar street light manufacturer with LED pole
Why Choose Us

Why Choose Our All in One Solar Street Light Solutions

Engineered for reliability, efficiency, and ease of deployment in any outdoor lighting project.

All-in-One Integrated Design

Solar panel, lithium battery, LED light source, and controller are fully integrated into one compact body -- no external wiring required.

PIR Motion Sensor

Built-in passive infrared sensor automatically adjusts brightness -- 100% when motion detected, dims to 30% in standby mode to extend battery life.

IP66 Weatherproof Rating

Fully sealed against dust and powerful water jets. Operates reliably in extreme weather conditions including heavy rain, coastal salt spray, and desert heat.

Dusk-to-Dawn Auto Control

Intelligent light sensor automatically activates the light at dusk and switches it off at dawn, requiring zero manual operation throughout its lifespan.

Long-Life LiFePO4 Battery

Lithium iron phosphate battery with 2000+ charge cycles ensures 5-8 years of service life, offering superior safety and thermal stability versus standard Li-ion.

OEM/ODM Customization

Full customization available: wattage, color temperature, pole height, branding, and packaging. Tailored solutions for government tenders and large-scale projects.

Technical Data

All in One Solar Street Light Technical Specifications

Detailed parameters for engineering evaluation, bidding documentation, and project planning.

Optical & Electrical

LED Power 30W / 60W / 100W / 150W / 200W
Luminous Efficacy ≥160 lm/W
Color Temperature 3000K / 4000K / 5000K / 6500K
CRI (Ra) ≥70 (Ra80 optional)
LED Lifespan >50,000 hours
Beam Angle 120° / 150° (customizable)

Physical & Environmental

Housing Material Die-cast Aluminum Alloy
Protection Rating IP66
Impact Resistance IK10
Operating Temperature -20°C ~ +60°C
Wind Resistance ≤60 m/s (Grade 12 typhoon)
Certifications CE / RoHS / ISO 9001

Controller & Sensor

Charge Controller MPPT (Maximum Power Point Tracking)
Motion Sensor PIR, Detection Range: 8-12m
Dimming Mode 100% → 30% (motion-activated)
Light Sensor Auto dusk-to-dawn switch
Time Control Programmable (optional)

Pole & Mounting

Pole Height 4m / 5m / 6m / 7m / 8m
Pole Material Hot-dip Galvanized Steel / Q235
Pole Diameter 60mm ~ 76mm (top)
Mounting Angle 0° ~ 15° adjustable
Installation Single-arm / Direct mount
Energy System

Applications of All in One Solar Street Light

Our all in one solar street lights are widely used for residential roads, highways, parking areas, rural electrification, parks, campuses, and government infrastructure projects.

Solar panel and battery system diagram

LiFePO4 Lithium Battery

Built-in integrated battery pack

Capacity Range

20Ah - 200Ah

Voltage

3.2V / 12.8V

Cycle Life

2000+ cycles

Rainy Day Backup

3-7 days

LiFePO4 Lithium Battery

High-efficiency PERC cell technology

Panel Power

40W - 400W

Cell Efficiency

≥22%

Panel Lifespan

25+ years

Charge Controller

MPPT

Product Showcase

All-in-One Solar Street Light

As a reliable supplier of integrated solar street light battery, our all‑in‑one solar street light integrates solar panel, battery, LED lamp, and smart controller in a single compact unit -- zero wiring, rapid deployment, maximum efficiency.

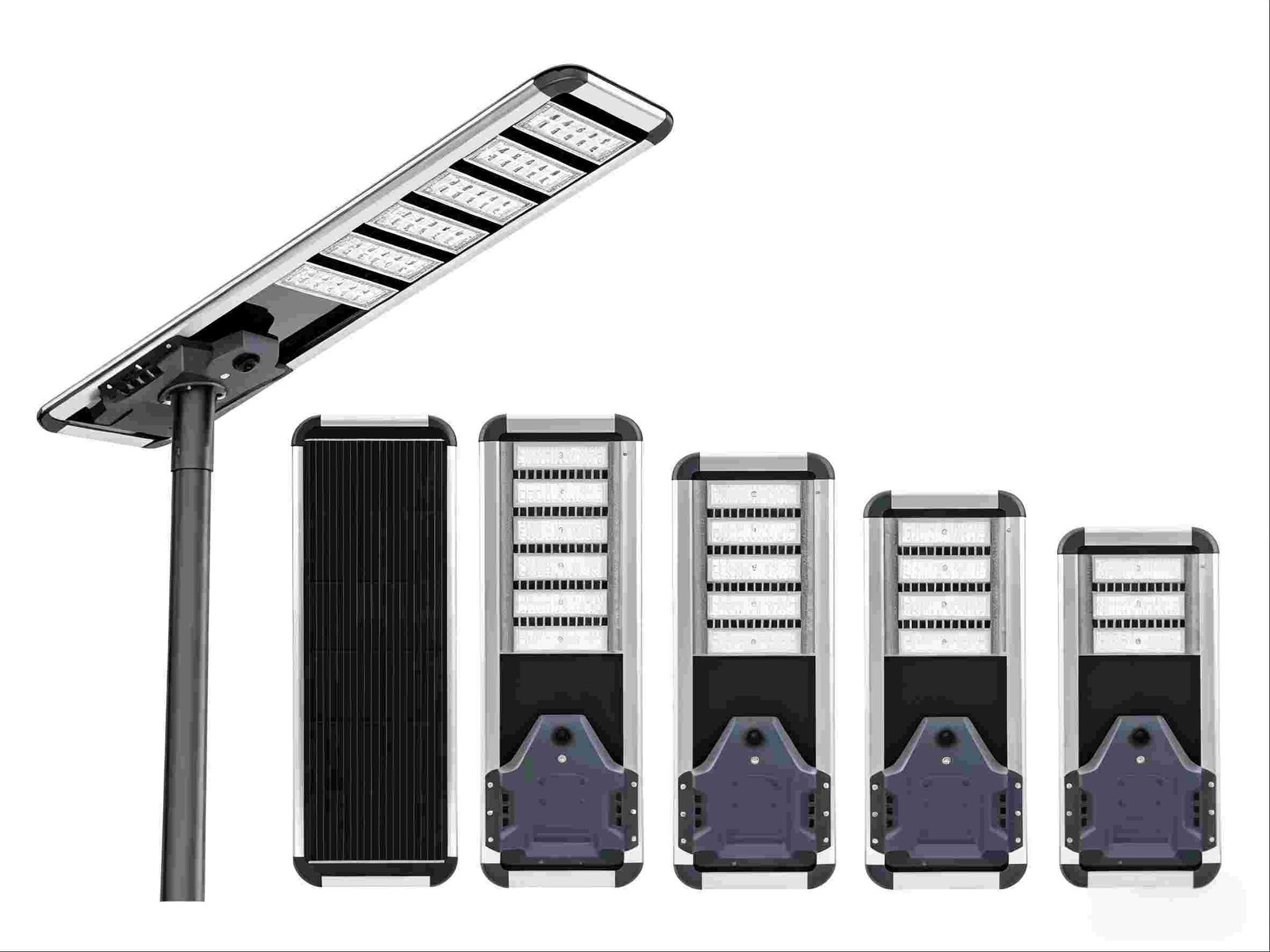

All-in-one solar street light fixture -- slim integrated design
30W-60W
integrated solar street light manufacturer

Slim Integrated Series

Ultra-thin monocrystalline panel fused with LED head for residential roads and pathways.

Inquire Style & Price

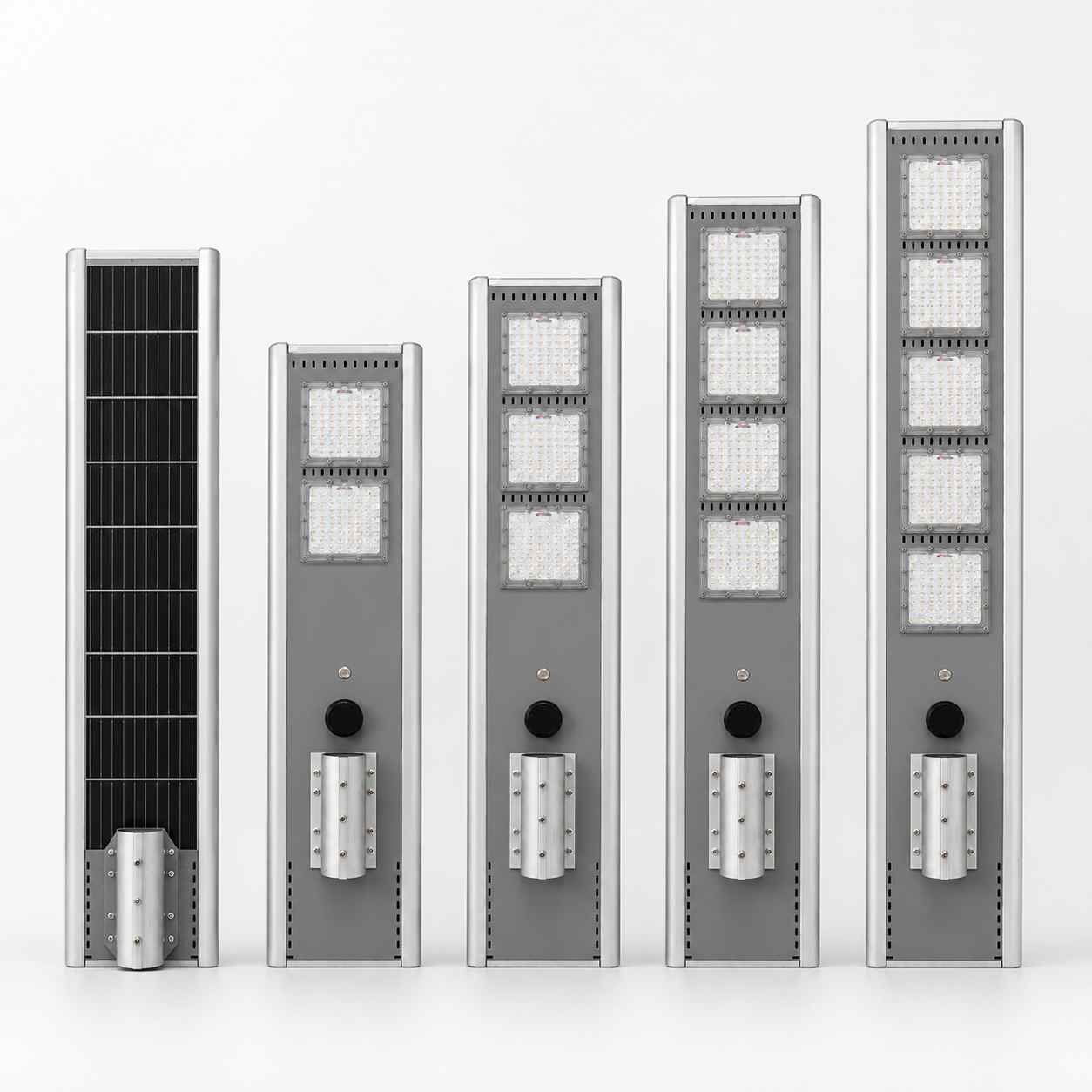

All-in-one solar street light fixture -- split-arm high-lumen design
All in one solar street light
80W-120W

High-Lumen Split-Arm

Adjustable panel angle with high-power LED for main roads, highways, and arterial streets.

Inquire Style & Price

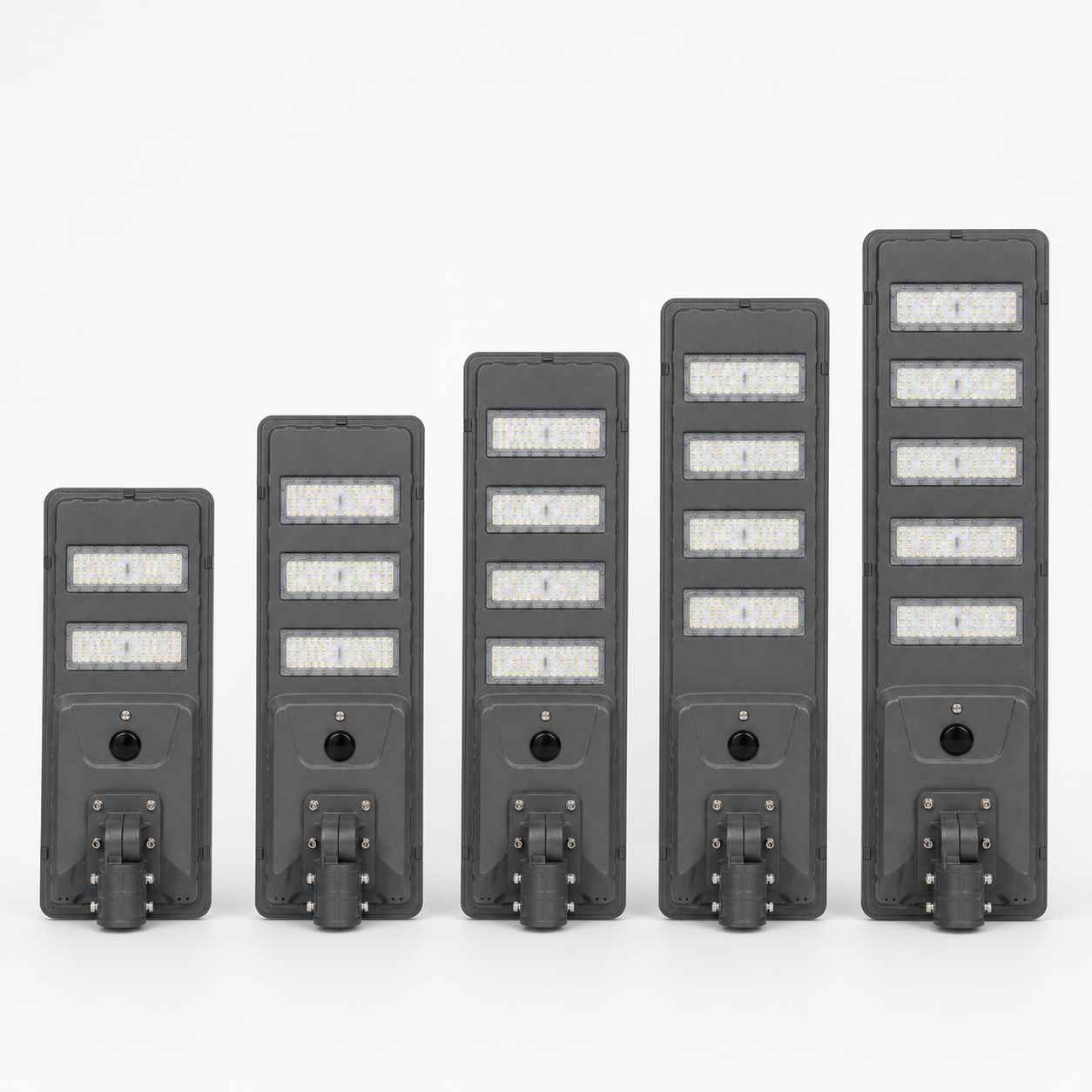

All-in-one solar street light fixture -- 4G IoT smart control edition
4G / 5G IoT

Smart IoT Edition

Remote monitoring, dimming scheduling, and fault alerts via 4G/5G network integration.

Inquire Style & Price

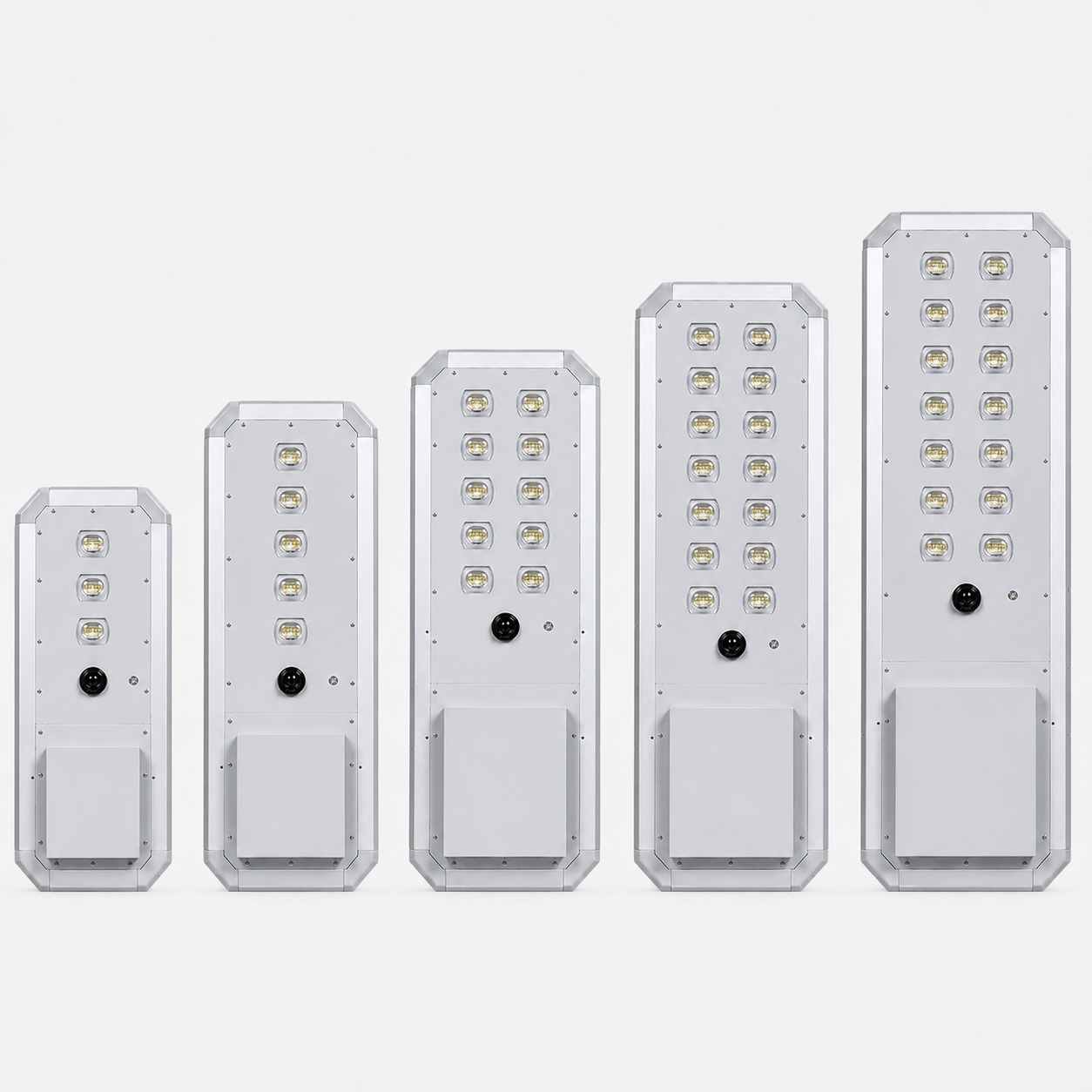

All-in-one solar street light fixture -- heavy-duty municipal grade

integrated solar street light battery

150W-200W

Municipal Heavy-Duty

IP66-rated, wind-resistant structure for government tenders, industrial parks, and port areas.

Inquire Style & Price

Need a Custom Configuration?

Our engineers will recommend the best solution for your project requirements and budget.

Inquire Style & Price
Flagship Product

Mega All-in-One Solar Street Light 25.6V LiFePO₄ System

Featuring high‑capacity integrated solar street light battery, this industrial‑grade integrated solar luminaire is engineered for maximum autonomy, smart control, and zero‑grid dependency -- built for government‑scale infrastructure.

25.6V System LiFePO₄ Battery
4G IoT Ready

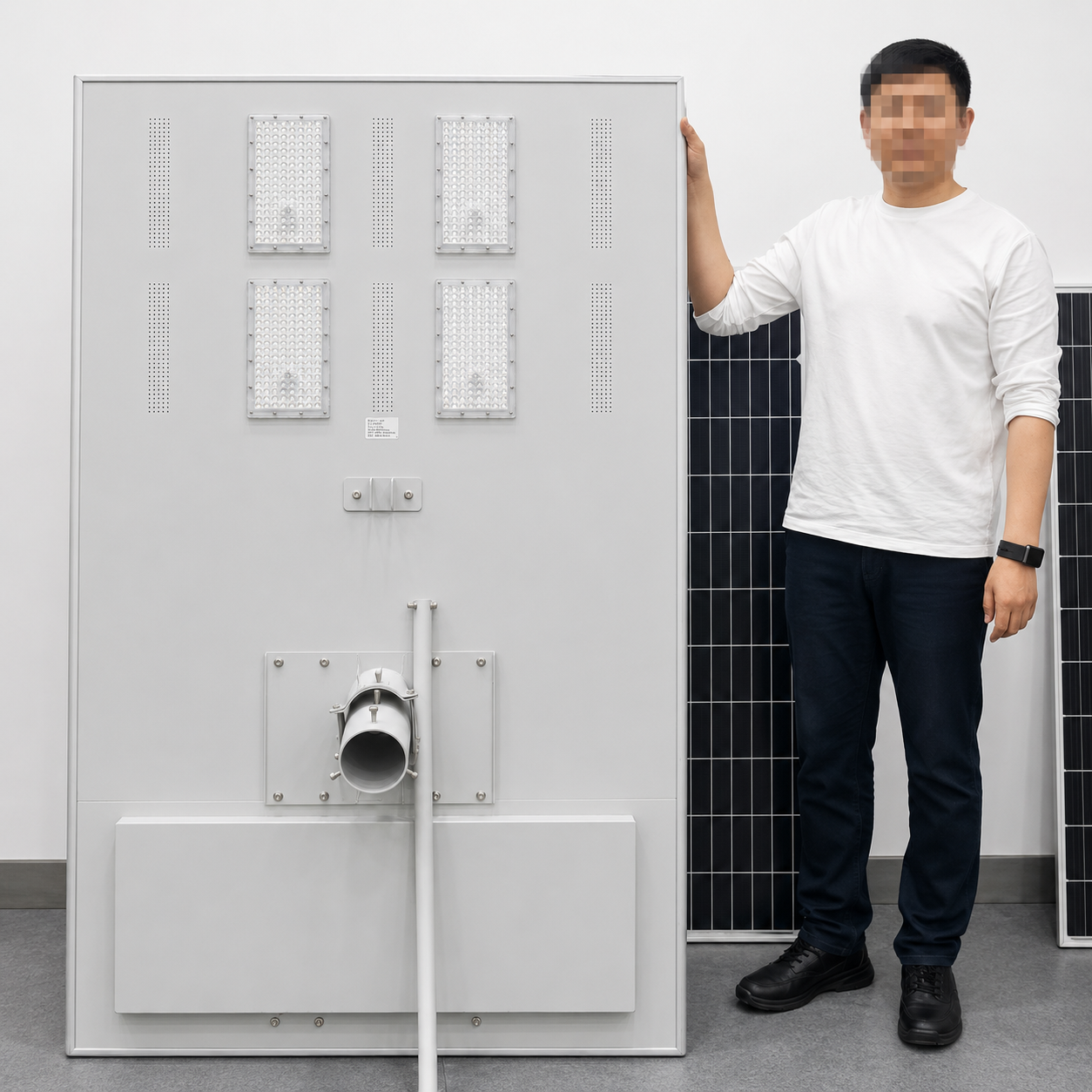

Mega All-in-One Solar Street Light 25.6V system - integrated solar panel, LED module, and LiFePO4 battery
Integrated Solar · LED · Battery · Controller OEM / ODM Available

Core Technical Specifications

System Voltage

25.6 V (LiFePO₄)

LED Power Range

60W - 300W

Battery Capacity

50Ah - 200Ah

Solar Panel

100W - 300W

Battery Cycles

2,000+ Cycles

Autonomy Days

3 - 7 Rainy Days

Luminous Efficacy

≥ 200 lm/W

Color Temperature

3000K / 4000K / 6000K

IP Rating

IP65 / IP66

Wind Resistance

≤ 60 m/s

Operating Temp.

−30°C to +65°C

Warranty

5 Years

Intelligent Controller Features

  • MPPT Solar Charging
  • Time-Segment Dimming
  • Motion Sensor (PIR)
  • Auto Dusk-to-Dawn
  • Over-Voltage Protection
  • Low-Temp Battery Guard
Optional Add-On

4G IoT Smart Control System

Upgrade your mega all-in-one solar light with a fully integrated 4G/5G IoT module for real-time remote monitoring, group control, and data analytics -- compatible with city-level smart lighting management platforms.

  • 4G/5G Wireless Communication

    Real-time two-way data link, no local gateway required

  • Cloud Dashboard & Analytics

    Battery SOC, power output, fault alerts, energy reports

  • Remote Group Dimming Control

    Schedule, dim, or override individual or zone lights remotely

  • Fault Detection & Push Alerts

    Instant SMS / app notification on malfunction or anomaly

10k+

Nodes per Platform

<1s

Command Latency

99%

Platform Uptime SLA

LiFePO₄ Safety

Thermally stable, no thermal runaway risk

High-Efficiency MPPT

≥98% charging efficiency, fast recovery

Global Compliance

CE, RoHS, IEC62133, ISO9001 certified

Full OEM / ODM

Custom wattage, housing, branding & packaging

Style & Pricing Inquiry

DIALux simulation & bidding documents available on request

p class="text-slate-500 text-xs uppercase tracking-wide mb-1">Battery Capacity

lg:h-full object-cover group-hover:scale-105 transition-transform duration-700" sizes="(max-width: 768px) 90vw, (max-width: 1024px) 90vw, 50vw" >
New · 2024 25.6V LiFePO₄
200W LED Output
Common Questions

Frequently Asked Questions

Everything you need to know before specifying or purchasing all-in-one solar street lights.

How many rainy days can the light operate without sunlight?

Our all-in-one solar street lights are engineered to illuminate every single night -- 365 nights a year, without exception. Built with high-capacity lithium batteries and intelligent energy management, they automatically activate at dusk and shut off at dawn, delivering reliable, uninterrupted lighting through rain, clouds, and extended low-sunlight periods. Whether it's a monsoon season or a stretch of overcast days, our lights keep your roads and communities safely lit -- night after night, year after year.

What battery is used in all-in-one solar street lights?

We use high-quality LiFePO4 batteries with more than 2000 charging cycles for safe and long-term operation. LiFePO4 (Lithium Iron Phosphate) technology offers superior thermal stability, longer lifespan, and enhanced safety compared to conventional lithium-ion batteries, making it the ideal choice for demanding outdoor solar applications.

Can you provide OEM solar street light customization?

Yes. We provide comprehensive OEM/ODM customization including LED power, battery capacity, solar panel size, controller functions, housing design, and branding. Our engineering team works closely with clients to tailor every aspect of the product to meet specific project requirements, regional climate conditions, and brand identity. From initial concept to final production, we ensure your custom solar street lights align perfectly with your specifications.

What is the lifespan of the battery and how is it replaced?

The built-in LiFePO4 battery has a rated lifespan of 2000+ charge cycles, translating to approximately 5-8 years of real-world use. When replacement is needed, the battery compartment is accessible via a screwdriver from the bottom of the light head. Spare batteries are available from our parts supply team with guaranteed compatibility.

Can the product be customized for government tender specifications?

Yes. Jinborui provides full OEM/ODM customization including wattage, color temperature, battery capacity, pole height, surface finish, and private labeling. We also provide bidding document support, DIALux lighting simulation reports, CAD drawings, and cost optimization proposals to help you win government tenders. Our team has extensive experience with World Bank and ADB funded project requirements.

What certifications does the product hold?

Our all-in-one solar street lights carry CE, RoHS, and ISO 9001:2015 certifications as standard. Additional certifications including IEC 62133 (battery safety), IP66 (ingress protection test report), and IK10 (impact resistance) are available upon request. We can also assist with country-specific certifications required for local market entry.

What is the minimum order quantity (MOQ) and lead time?

The standard MOQ is 50 units for stock models. For OEM/ODM customized orders, MOQ is typically 200 units. Standard lead time is 15-25 working days after order confirmation and deposit receipt. For urgent projects, we offer expedited production for an additional fee. With our 50,000 sets/year capacity, we can fulfill large government orders reliably.

What warranty and after-sales support is provided?

We provide a 3-year product warranty covering manufacturing defects in the LED module, solar panel, battery, and controller. After-sales support includes remote technical diagnosis, spare parts supply guarantee, and on-site service coordination. Our engineering team is available via WhatsApp and email for rapid response to field issues anywhere in the world.

Still have questions?

Our engineering team responds within 24 hours. Get a free consultation and custom quote.
