Solar Wind Hybrid Street Light System
PROFESSIONAL SOLAR WIND HYBRID STREET LIGHT OEM/ODM MANUFACTURER

12 Years Solar Street Light Manufacturer - Support Government Tender Projects

Jinborui Electric is a 12-year China solar wind hybrid street light factory, support OEM/ODM & government tender projects. Wind-solar dual power, IP65 anti-corrosion coastal lamp, 5-7 rainy days backup, 5-year warranty. Free DIALux lighting simulation & CAD drawing for bidding. Email: sony@bruigroup.com

Dual Energy Source

Wind‑Solar hybrid power supply for street lighting

All-Weather Operation

5‑7 days autonomy on rainy & low‑wind days

100% Full Customization

OEM & ODM for solar wind hybrid street light projects

Global Projects

200+ government & public lighting installations worldwide

Request Custom Quote

27k㎡

27,000 ㎡ Large‑Scale Factory Facility

12+

Government Tender Wind Solar Hybrid Street Light

5000㎡

5000㎡ Dedicated Production Base

30+

30+ Completed Global Hybrid Street Light Project Cases

OEM / ODM Available

Solar Wind Hybrid Street Light - Professional Reliable OEM ODM Manufacturer from China

We are a professional solar wind hybrid street light manufacturer integrating R&D and production. Our complete solar wind hybrid street light system harnesses wind and solar energy simultaneously, delivering stable continuous lighting even during extended cloudy weather or low‑wind seasons. Our hybrid street lighting solutions are widely deployed for highways, rural roads, coastal salt‑spray zones and remote off‑grid communities worldwide. Full OEM & ODM customization service is available for all product models.

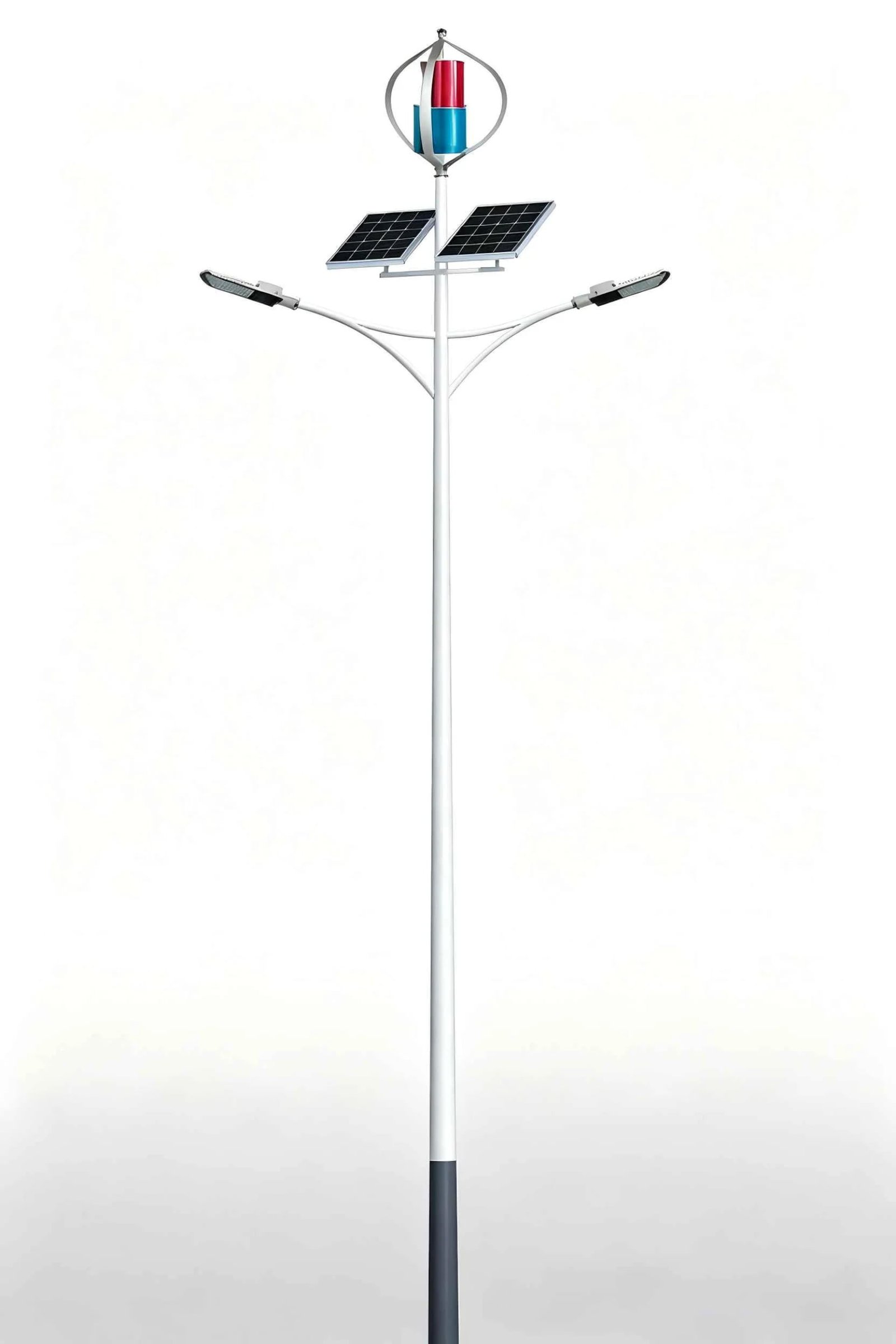

Dual-Arm Wind-Solar Hybrid Street Light
Bestseller

Dual-Arm solar wind hybrid street light

Features two independent LED lighting arms powered by integrated wind turbine and solar panel system. Perfect for wide‑road median strips and dual‑carriageway highway lighting projects.

  • Wind Turbine: 300W-600W
  • Solar Panel: 200W-400W Mono
  • LED Power: 2 × 60W-120W
View Details

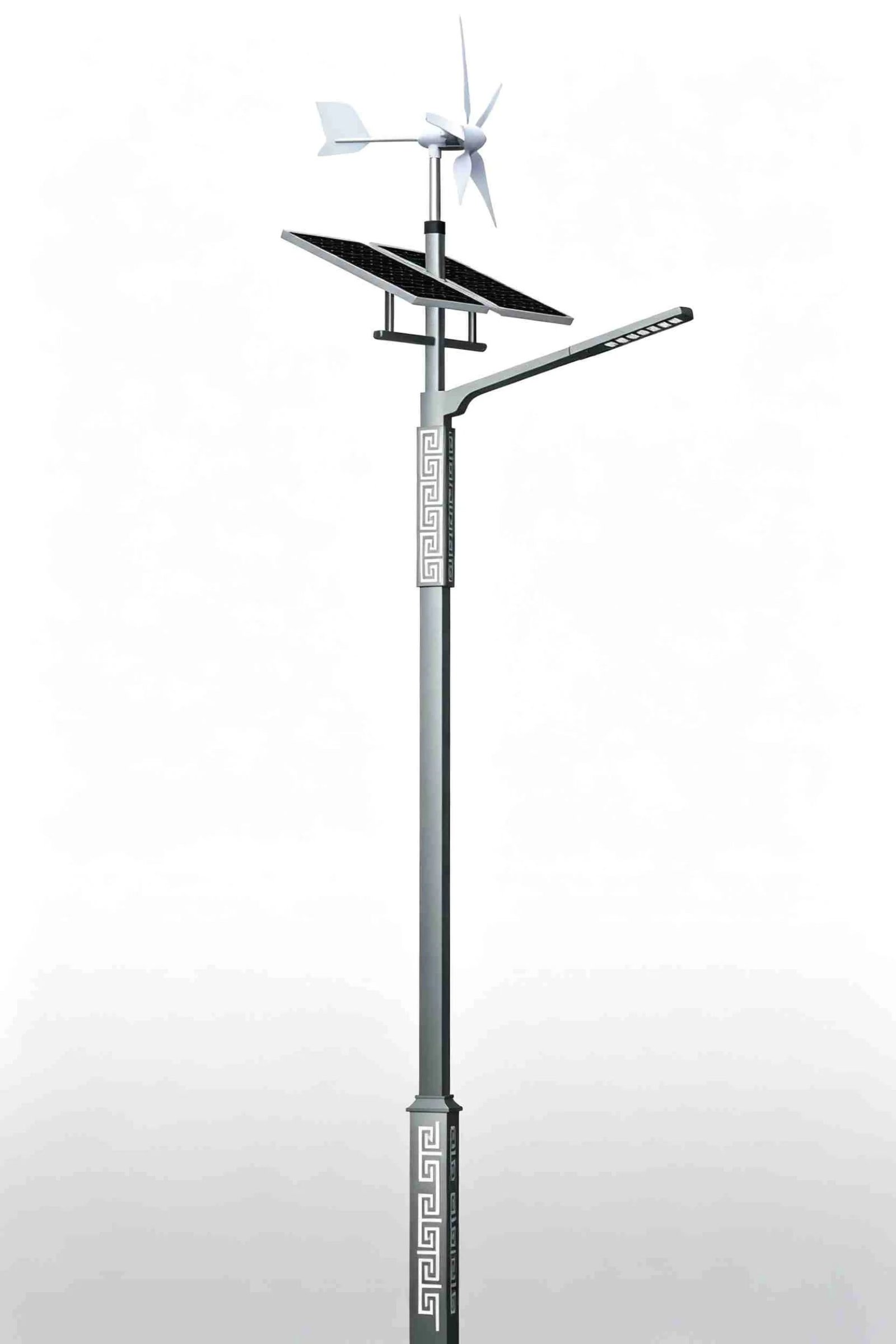

Single-Arm Wind-Solar Street Light
Standard

Standard Solar Wind Hybrid Street Light System

Standard off‑grid solar wind hybrid street light system combining wind turbine and photovoltaic power. Suitable for urban roads, highways, parks and remote regions with stable dual‑energy charging performance.

  • Hybrid System: Wind + Solar Integration
  • OEM/ODM Manufacturing Services
  • 12 Years Factory Experience
View Details

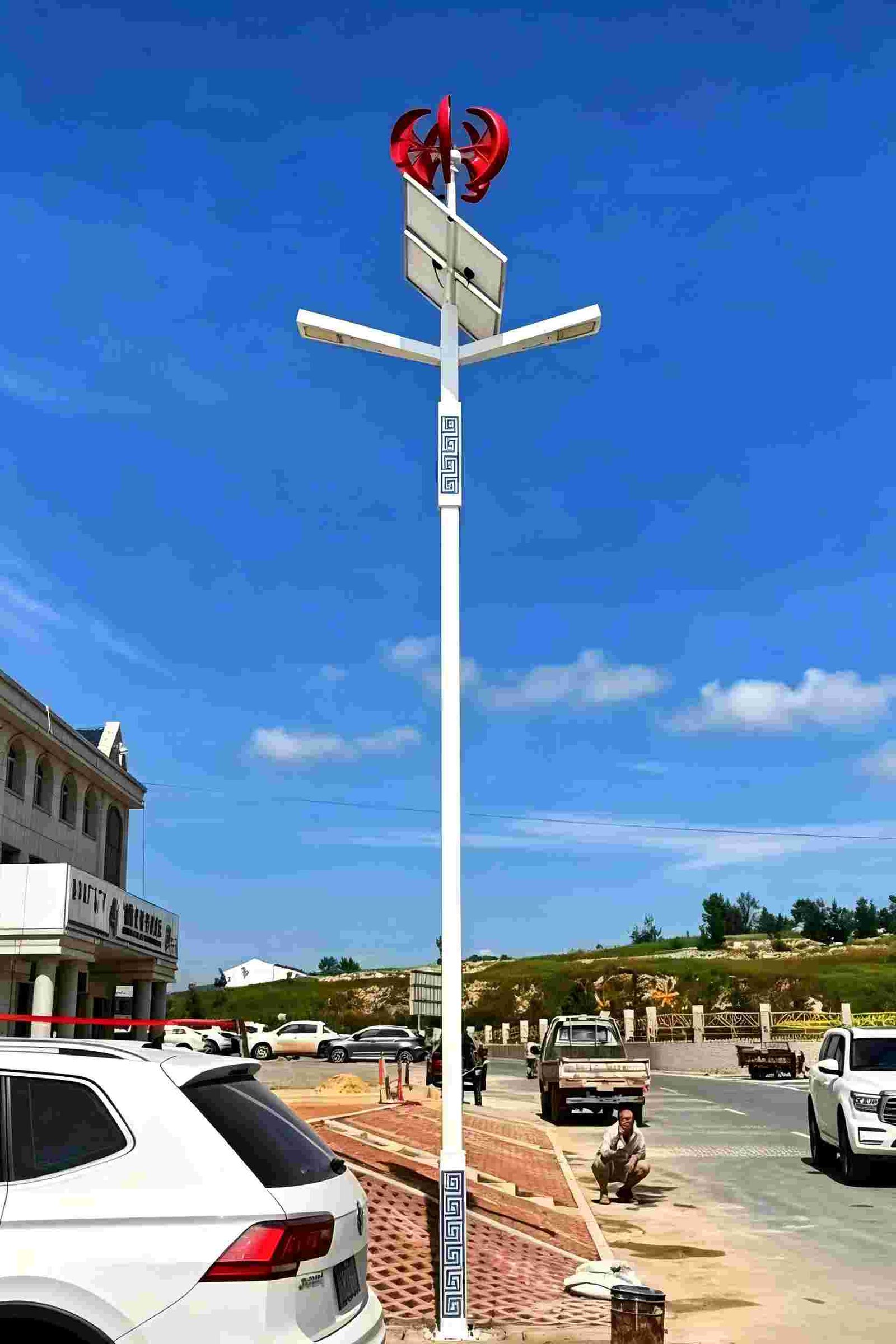

High-Mast Wind-Solar Complementary Light
Heavy Duty

Heavy‑Duty High‑Mast Solar Wind Hybrid Street Light

Heavy‑duty high‑mast solar wind hybrid street light engineered for highways, ports and large open zones requiring wide‑area high‑brightness illumination. Multi‑panel solar arrays match high‑capacity wind turbines for maximized power output.

  • Wind Turbine: 600W-2000W
  • Solar Array: 400W-1000W
  • Pole Height: 15m-25m
View Details

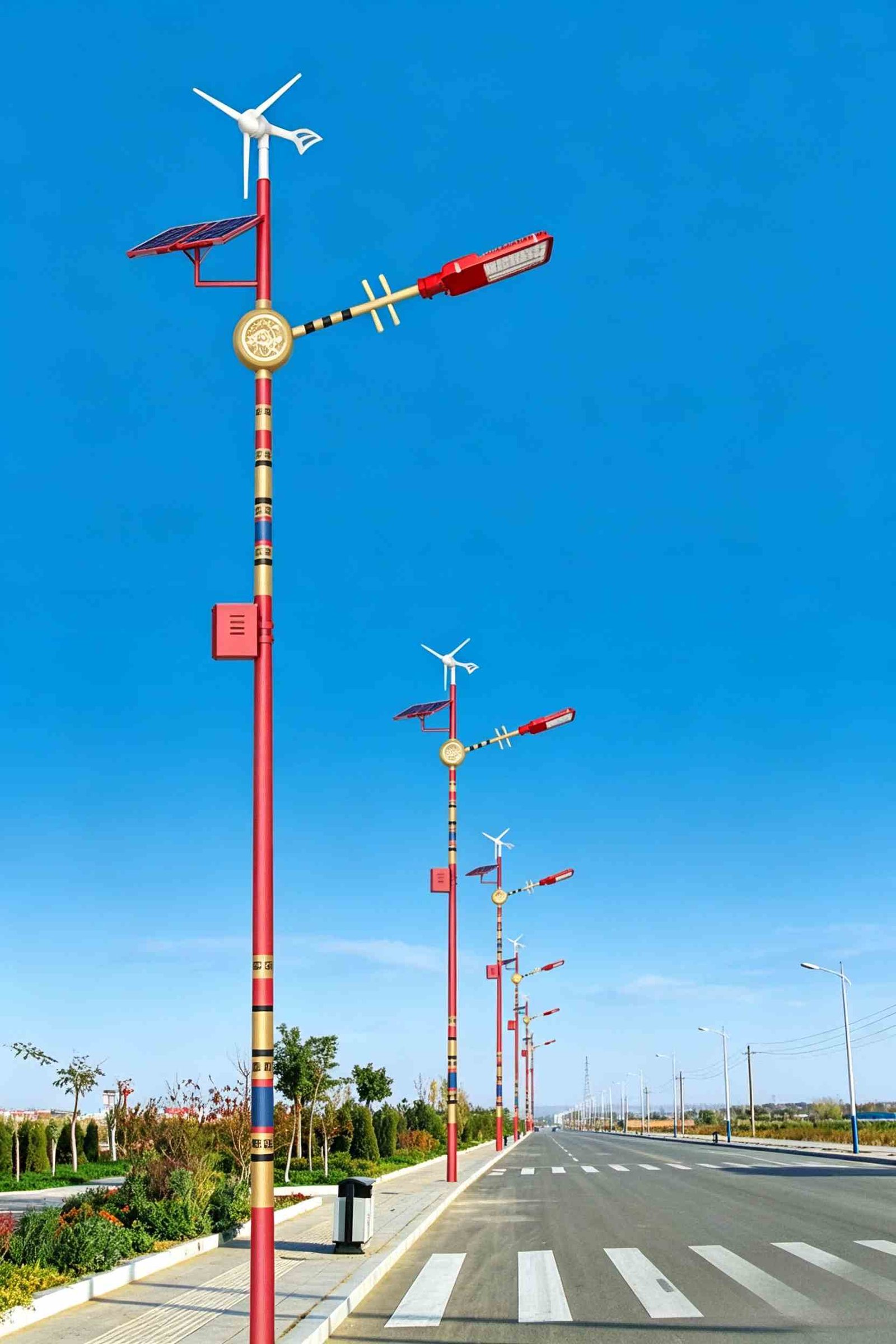

Smart IoT Wind-Solar Street Light
Smart

Smart IoT solar wind hybrid street light

Smart IoT solar wind hybrid street light integrates 4G/5G IoT connectivity with wind‑solar hybrid power. It supports remote monitoring, auto dimming control, fault diagnosis and real‑time energy data reporting through cloud management platform.

  • 4G/5G Remote Control Module
  • Auto‑Dimming & Motion Sensing Function
  • Cloud Dashboard & API Integration Support
View Details

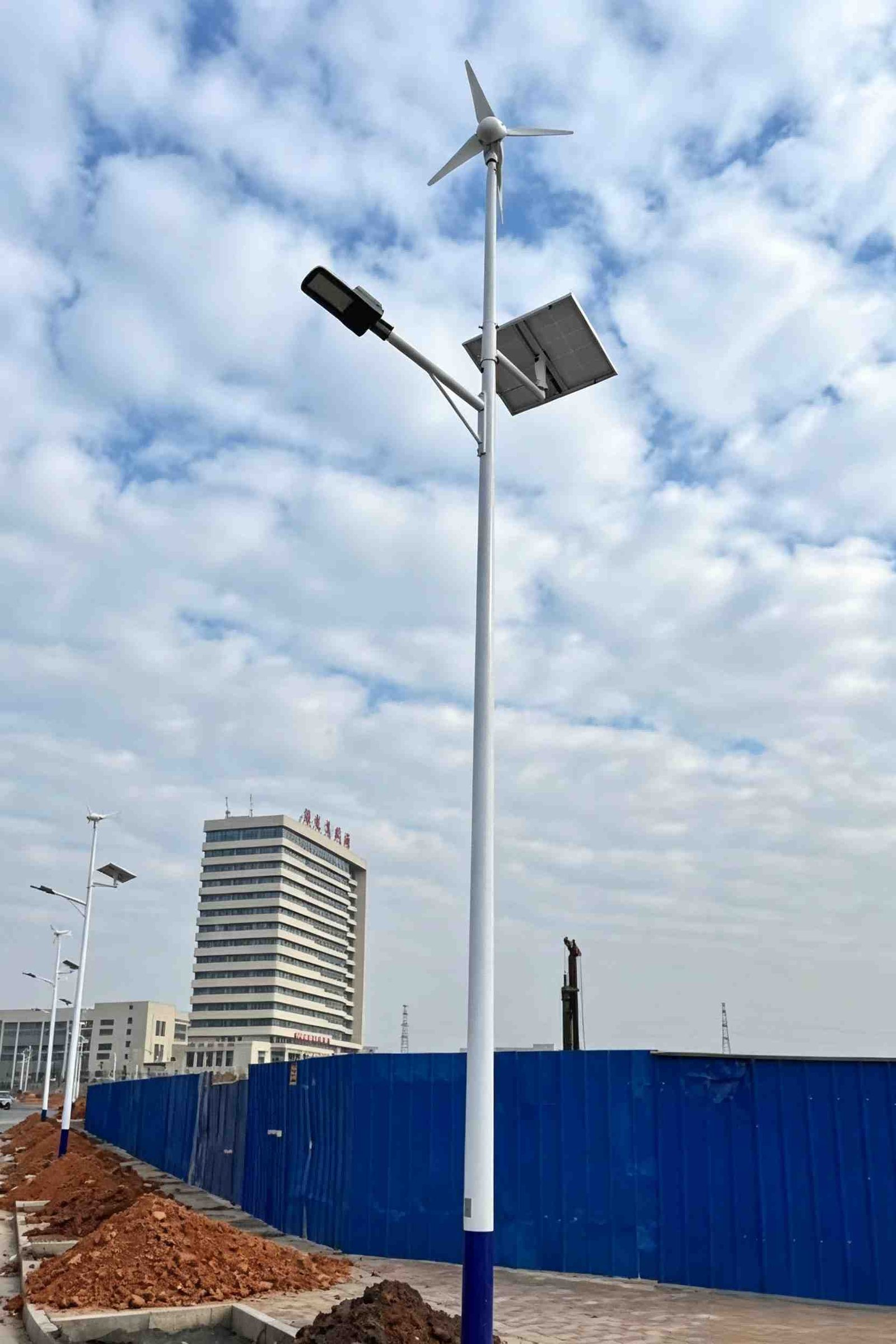

Lithium Battery Wind-Solar Street Light
Long Life

Lithium‑Battery Solar Wind Hybrid Street Light

This lithium‑battery solar wind hybrid street light adopts high‑performance LiFePO4 energy storage battery. It delivers 5‑7 rainy‑day autonomy, ideal for locations with changeable complex weather conditions.

  • LiFePO4 Battery: 100Ah-300Ah
  • Cycle Life: 2000+ Charge Cycles
  • Built‑in BMS Safety Protection
View Details

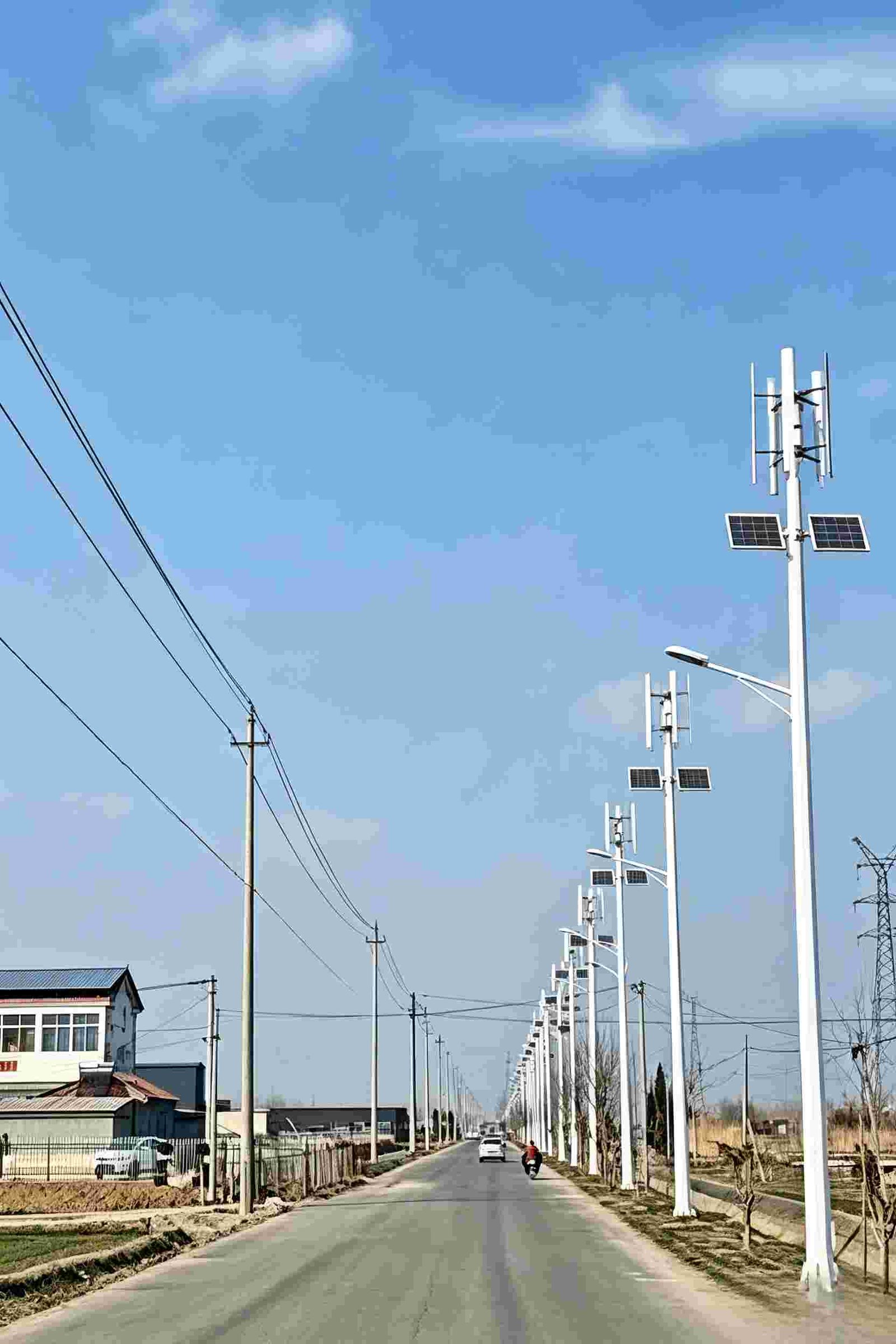

Coastal Wind-Solar Street Light
Anti-Corrosion

Coastal Anti‑Corrosion Solar Wind Hybrid Street Light

Coastal anti‑corrosion solar wind hybrid street light is purpose‑built for marine & coastal environments. Adopts hot‑dip galvanized lamp pole, IP65 rated fixtures and anti salt‑spray coating, resisting wind speed up to 60 m/s.

  • IP65 Waterproof & Dustproof Rating
  • Hot-Dip Galvanized Steel Pole
  • Max Wind Resistance: ≤60 m/s
View Details

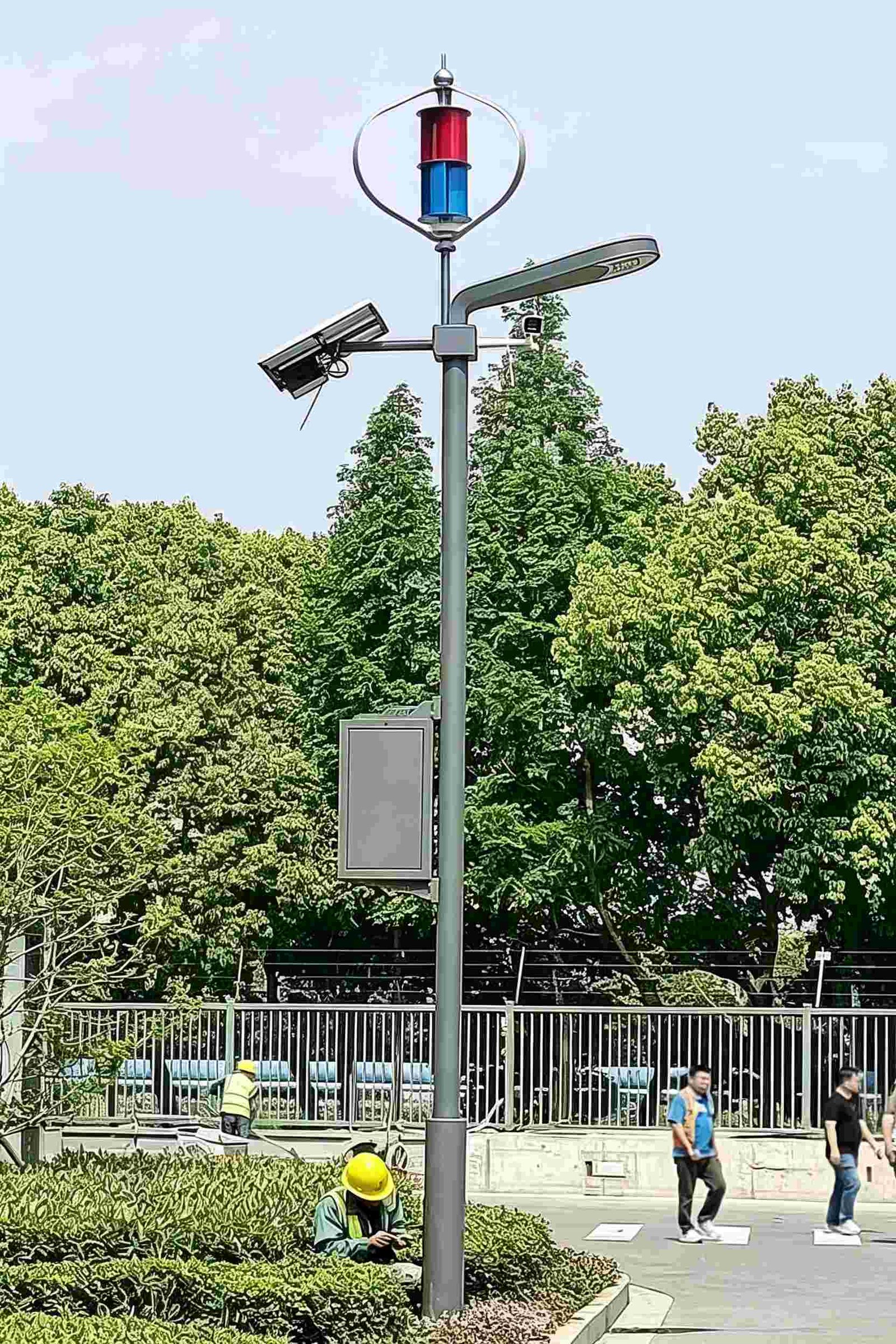

All-in-One Wind-Solar Street Light
Compact

Compact Integrated Solar Wind Hybrid Street Light

This compact integrated solar wind hybrid street light assembles wind turbine, solar panel, lithium battery and smart controller into one compact assembly. It greatly simplifies on‑site installation work, reduces engineering costs, and fits residential communities, narrow roadways and lighting renovation projects.

  • Integrated All-in-One Design
  • Quick-Install Bracket System
  • LED: 20W-60W, CRI ≥70
View Details

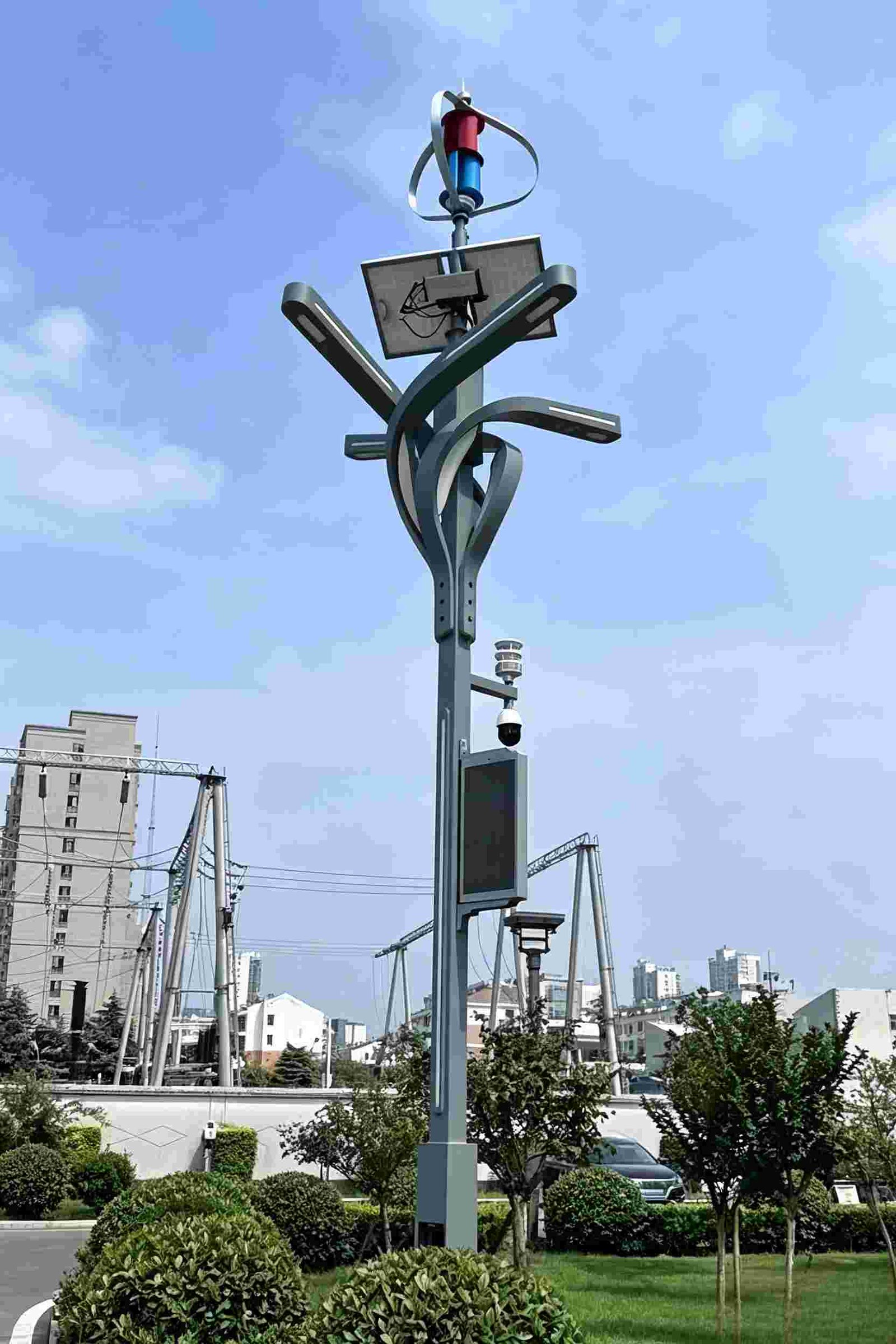

Garden Wind-Solar Decorative Light
Decorative

Decorative Garden Solar Wind Hybrid Street Light

Decorative garden solar wind hybrid street light delivers aesthetic hybrid lighting solution for parks, plazas and scenic walkways. Custom‑made lamp pole & luminaire designs to match local building and landscape architectural themes.

  • Pole Height: 3m-6m
  • Custom Pole & Shape OEM Service
  • LED: 10W-30W Warm/Cool White
View Details

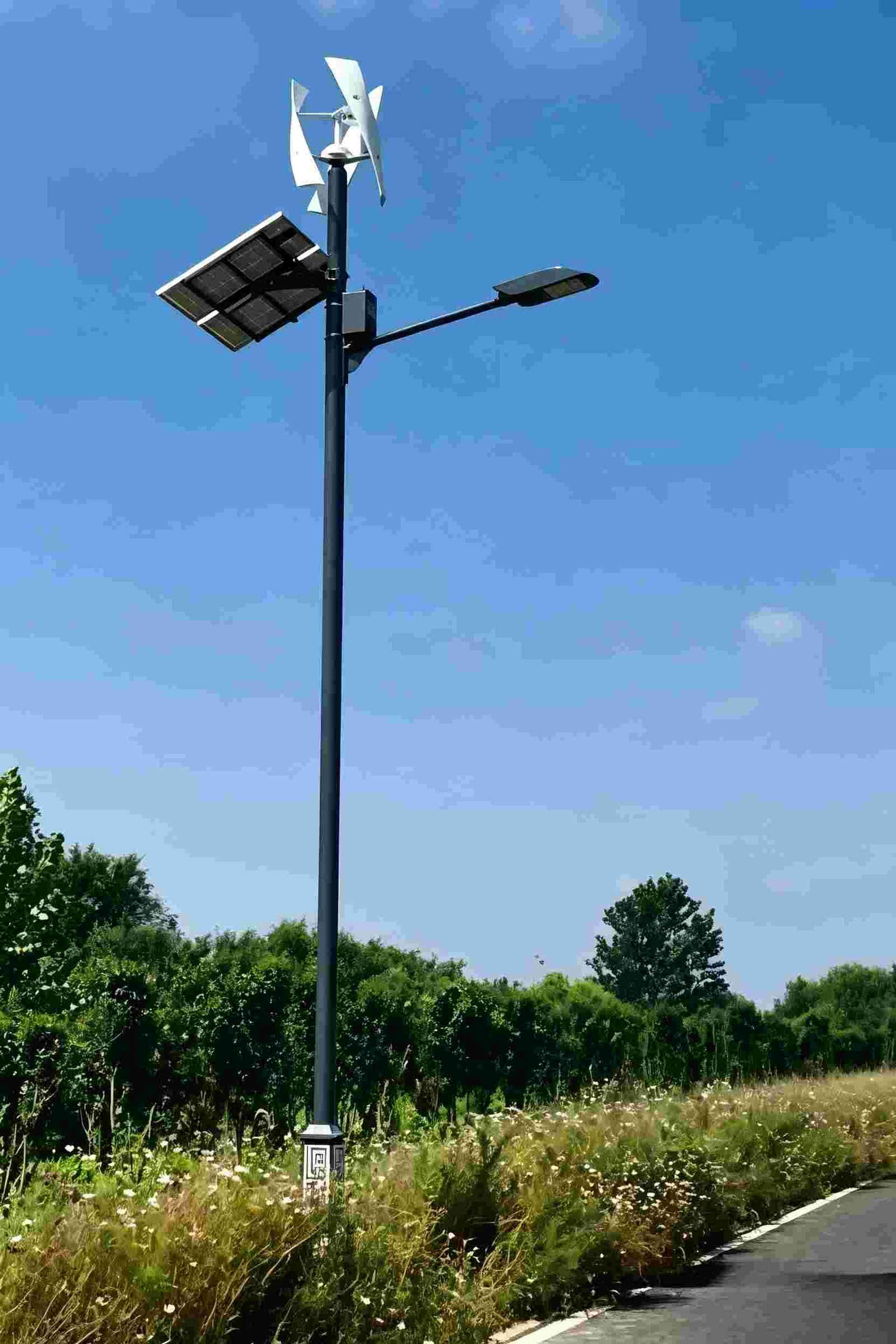

Off-Grid Wind-Solar Street Light System
Off-Grid

Off‑Grid Solar Wind Hybrid Street Light System

Complete turnkey off‑grid solar wind hybrid street light system for remote villages, construction sites and locations without utility grid access. Complete set includes MPPT hybrid controller, lithium battery and full mounting accessories.

  • Hybrid MPPT Controller Included
  • 7-Day Autonomous Backup
  • Scalable For Large‑Scale Village Projects
View Details

All products support OEM / ODM customization. Feel free to contact us for detailed specifications, competitive quotation and professional project consultation.

Get in Touch
Why Choose Hybrid

Engineered for Reliability in Any Climate

Where solar‑only lighting falls short, our solar wind hybrid street light system delivers non‑stop illumination — even through extended cloudy periods or low‑wind seasons for off‑grid sites.

Dual-Source Power Generation

For our solar wind hybrid street light system, wind turbine and PV panel work simultaneously or independently, maximizing energy harvest across all weather conditions — ideal for coastal, highland, and remote regions.

7-Day Autonomous Backup

The LiFePO₄ lithium battery pack inside our hybrid street light stores sufficient energy for up to 7 consecutive rainy/calm days, ensuring uninterrupted road safety lighting with no grid dependency.

Smart MPPT Controller

Built‑in intelligent MPPT charge controller dynamically optimizes dual‑source power flow for the solar wind hybrid street light system, extending battery cycle life and maximizing luminous efficiency.

IP65 All-Weather Protection

Our solar wind hybrid street light system adopts fully sealed die‑cast aluminum housing with IP65 ingress protection. Corrosion‑resistant coating withstands salt spray, tropical humidity, and extreme temperatures from ‑40℃ to +60℃.

Adaptive Dimming Modes

This solar wind hybrid street light system supports time‑based and motion‑triggered dimming schedules (100% → 50% → 30%), intelligently cutting energy consumption while maintaining full safety standards throughout the night.

Zero Infrastructure Cost

Our fully self‑contained solar wind hybrid street light system eliminates grid connection, trenching, and cabling costs -- cutting total project cost by up to 60% versus traditional street lighting installations.

Technical Specifications

Our solar wind hybrid street light system supports fully configurable parameters — all specifications are customizable for OEM/ODM orders.

Parameter Value
Product Type Solar Wind Hybrid Street Light System
Pole Height 6m / 7m / 8m (customizable)
Pole Material Hot-dip galvanized steel
Working Temperature -40°C to +60°C
Wind Resistance ≤ 60 m/s (typhoon-grade)
Protection Rating IP65
Certification CE, RoHS, IEC 62133
Warranty 5 Years
Wind solar hybrid street light system diagram showing pole, wind turbine, solar panel, battery box, and LED head components

Applicable Scenarios

Rural Roads
Coastal Highways
Island Communities
Mountain Passes
Port & Dock Areas
Gov. Infrastructure
Product FAQ

Solar Wind Hybrid Street Light
Frequently Asked Questions

Expert answers to common questions about performance, customization, and technical specifications of our solar wind hybrid street lighting solutions.

Performance & Environment

Can solar wind hybrid street light work normally in low-wind mountain areas?
Yes, absolutely. Our solar wind hybrid street lights are specifically designed with dual energy sources to ensure reliable operation even in low-wind conditions. The solar panels serve as the primary power source, while the wind turbine provides supplementary energy. In mountain areas with limited wind, the high-efficiency solar panels (typically 21%+ conversion rate) can independently maintain full lighting functionality. The intelligent controller automatically balances energy harvesting from both sources based on environmental conditions.
How many consecutive rainy and windless days can solar wind hybrid street light keep lighting?
Standard configurations support 3-5 consecutive rainy and windless days. For regions with extended cloudy periods, we can upgrade the battery capacity to support 7-10 backup days. Our lithium iron phosphate (LiFePO₄) batteries are oversized by 20-30% to ensure deep-cycle safety and longevity. The intelligent power management system also features adaptive dimming to extend backup runtime during prolonged adverse weather conditions.
Is solar wind hybrid street light anti-corrosion for coastal salt spray and typhoon environment?
Yes. All coastal deployment units feature enhanced corrosion protection:
  • Hot-dip galvanized steel poles with marine-grade epoxy polyester powder coating (min. 100μm thickness)
  • 316 stainless steel fasteners and brackets
  • IP66-rated sealed controller and battery compartments with silicone gaskets
  • Salt spray test certified: 2000+ hours (ASTM B117 standard)
  • Wind turbine blades: reinforced fiberglass composite with UV-resistant resin
The system has been successfully deployed in Southeast Asian coastal typhoon zones with excellent performance.
What's the max wind resistance speed of solar wind hybrid street light?
Standard design: wind resistance up to 150 km/h (41.7 m/s, Level 13 typhoon)
Enhanced typhoon version: up to 180 km/h (50 m/s, Level 15+ super typhoon)

Structural features include:
  • Tapered octagonal pole design with optimized wind load distribution
  • Automatic wind turbine brake system (activates above 25 m/s)
  • Reinforced anchor bolt foundation (M24-M30 grade 8.8 bolts)
  • FEA (Finite Element Analysis) validated structural integrity
All poles comply with AASHTO and EN 40 standards for street lighting structures.

Customization & Manufacturing

What customization options do you provide for solar wind hybrid street light?
We offer comprehensive customization services including:
Pole height: 4m - 15m
LED power: 20W - 200W
Color temperature: 2700K - 6500K
Solar panel: 50W - 400W
Wind turbine: 100W - 600W
Battery: 50Ah - 300Ah LiFePO₄
Pole color: RAL color chart
Arm length & angle
Lighting schedule programming
IoT/smart control integration

We also provide DIALux lighting simulations and CAD drawings to optimize configuration for your specific project requirements.

Can I customize the pole height, LED power and color of solar wind hybrid street light?
Absolutely. These are our most common customization requests:
  • Pole Height: Available from 4m to 15m. We'll recommend optimal height based on road width and lighting standards (typically 1:3 ratio).
  • LED Power: Ranges from 20W to 200W. We use Bridgelux/Lumileds chips with efficacy ≥150 lm/W. Power selection depends on pole height and illuminance requirements.
  • Color Temperature:
    • Warm white: 2700K-3500K (residential areas)
    • Neutral white: 4000K-4500K (most common)
    • Cool white: 5000K-6500K (industrial/security)
  • Pole Color: Any RAL color available. Most popular: RAL 7035 (light grey), RAL 9006 (white aluminum), RAL 6005 (moss green), or custom color matching.
Minimum order quantity for full customization: 50 sets. Sample orders can select from standard configurations.
Does your factory accept OEM & ODM orders for solar wind hybrid street light?
Yes, we have extensive OEM & ODM experience with 12 years of manufacturing expertise. Our services include:
OEM Services:
  • Custom logo laser engraving/silk screen on poles and fixtures
  • Branded packaging design and printing
  • Your brand nameplate and labels
  • Customized user manuals and documentation
ODM Services:
  • Original design development based on your specifications
  • Structural CAD drawing and 3D modeling
  • Prototype production and testing (2-3 weeks)
  • Optical design and DIALux simulation
  • Mold development for custom components

MOQ: 100 sets for OEM, 300 sets for ODM (negotiable for long-term partnerships). NDA signing available.

Warranty & Technical Support

What's the warranty period of the whole set solar wind hybrid street light?
Comprehensive warranty coverage:
  • LED fixture: 5 years (luminous flux maintenance ≥70% L70B10)
  • Solar panels: 10 years material/workmanship, 25 years power output (≥80% at year 25)
  • Wind turbine: 3 years (including generator and blades)
  • Lithium battery: 3 years (≥80% capacity retention)
  • Controller/MPPT: 3 years
  • Pole & structural components: 5 years (anti-corrosion coating warranty)

Warranty includes: Free replacement of defective parts, remote technical support, and on-site service for projects over 500 sets (travel costs may apply). We maintain 2% spare parts inventory for each project batch.

What's the cycle life of lithium battery equipped on solar wind hybrid street light?
We exclusively use Lithium Iron Phosphate (LiFePO₄) batteries for superior safety and longevity:
  • Cycle life: ≥3000 cycles at 80% DoD (Depth of Discharge)
  • Calendar life: 8-10 years under normal operating conditions
  • Operating temperature: -20°C to +60°C (with built-in heating for extreme cold)
  • Capacity retention: ≥80% after 3000 cycles
  • Safety features: BMS (Battery Management System) with overcharge/over-discharge/short-circuit/temperature protection

Real-world performance: In daily charge-discharge scenarios, our batteries typically last 8-10 years before requiring replacement. Batteries are UL1642, IEC62133, and UN38.3 certified for transportation safety.

Does solar wind hybrid street light support 4G IoT remote monitoring and automatic dimming?
Yes, we offer integrated 4G/5G IoT smart lighting solutions as an optional upgrade:
Remote Monitoring Features:
  • Real-time monitoring: battery voltage/current, solar/wind power generation, LED status
  • Fault alerts: SMS/email notifications for malfunctions
  • GPS location tracking and anti-theft alarm
  • Cloud-based dashboard (web + mobile app)
  • Historical data logging and reporting
Smart Dimming Modes:
  • Time-based scheduling (e.g., 100% → 50% → 30% by time slots)
  • Motion sensor integration (PIR-triggered full brightness)
  • Adaptive dimming based on battery SOC (State of Charge)
  • Remote manual override via mobile app
  • Group control for multiple lights

Supported protocols: NB-IoT, 4G LTE Cat-M1, LoRaWAN. Annual data plan: $3-5 per light (varies by region). Compatible with standard TALQ/NEMA/Zhaga smart city platforms.

Can you supply full turnkey off-grid solar wind hybrid street light system for remote villages?
Yes, we specialize in turnkey off-grid lighting projects for remote and rural electrification. Our comprehensive service includes:
1
Site Assessment & Design

Solar irradiance and wind resource analysis, road layout planning, lighting simulation (DIALux), system sizing and cost optimization

2
Complete Equipment Supply

Solar wind hybrid lights, foundation cages, installation tools, spare parts (2% inventory), testing equipment

3
Installation & Commissioning

On-site engineer supervision (optional), installation training for local workers, full system testing and handover

4
After-Sales Support

Multi-year warranty service, remote technical support, spare parts supply guarantee, annual maintenance training

We've successfully completed 50+ rural electrification projects in Africa, Southeast Asia, and Latin America. Minimum project size: 100 lights. We also assist with World Bank and international donor funding applications.

Do you support government tender projects of solar wind hybrid street light?
Absolutely. Government procurement is one of our core business segments. We have successfully completed 200+ government projects worldwide. Our tender support services include:
Technical document preparation: Detailed specifications, compliance certificates (CE/RoHS/IEC/ISO), test reports, product catalogs
Commercial documentation: Bank reference letters, performance bonds, insurance certificates, company registration docs
Engineering support: DIALux lighting design, CAD drawings, BOQ (Bill of Quantities), construction guidance
Local partnership: We can work with your local contractor or recommend trusted partners in 30+ countries
Payment terms: Flexible for government projects (L/C, 30% advance + 70% against delivery, progress payment accepted for large orders)

Recent government projects: Kenya Rural Electrification (2,500 sets), Nigeria RUWASSA Program (1,800 sets), Philippines DPWH Highway Lighting (3,200 sets), Tanzania TANROADS (1,200 sets).

Still Have Questions?

Our technical team is ready to provide customized solutions for your project.

Email Engineering Team

Request a Quote

Fill out the form below and we'll get back to you with a detailed quotation.

sony@bright-ix.com
Guoji Second Industrial Park, Yangzhou City, Jiangsu Province, China
Engineering Support

From Concept to Commissioning

Our technical team supports every phase of your wind-solar hybrid lighting project -- from site assessment and product customization to after-sales parts supply.

Bidding Document Support

DIALux Lighting Simulation

OEM/ODM Product Design

CAD Drawing Development

Cost Optimization Proposals

Installation & Training Services

Spare Parts Supply Guarantee

Turnkey Project Cooperation

Manufacturing Capacity

27k
㎡ Factory
Facility
50k
Sets/Year
Production
30+
Countries
Exported
