Street Light
Pole Series
Engineered for durability and aesthetics, our hot-dip galvanized steel poles are designed for municipal roads, highways, and government infrastructure projects worldwide. Available in straight, conical, and decorative variants with full OEM/ODM customization.
Product Variants
Three primary pole configurations to suit every municipal and commercial application. All variants support custom arm length, color, and mounting options.

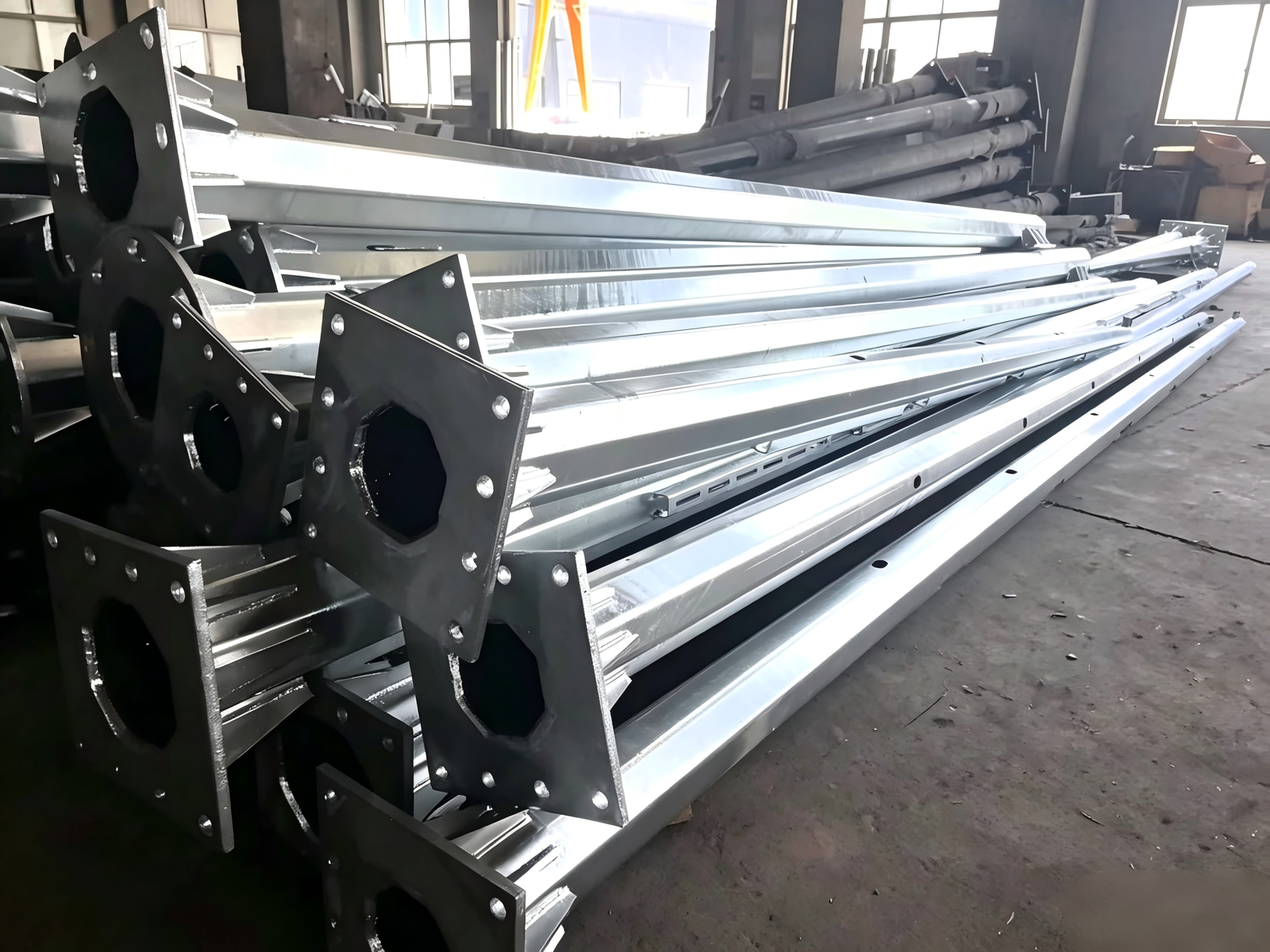

Conical Tapered Pole
Classic tapered design for municipal roads and highways. Superior wind resistance with uniform cross-section reduction.

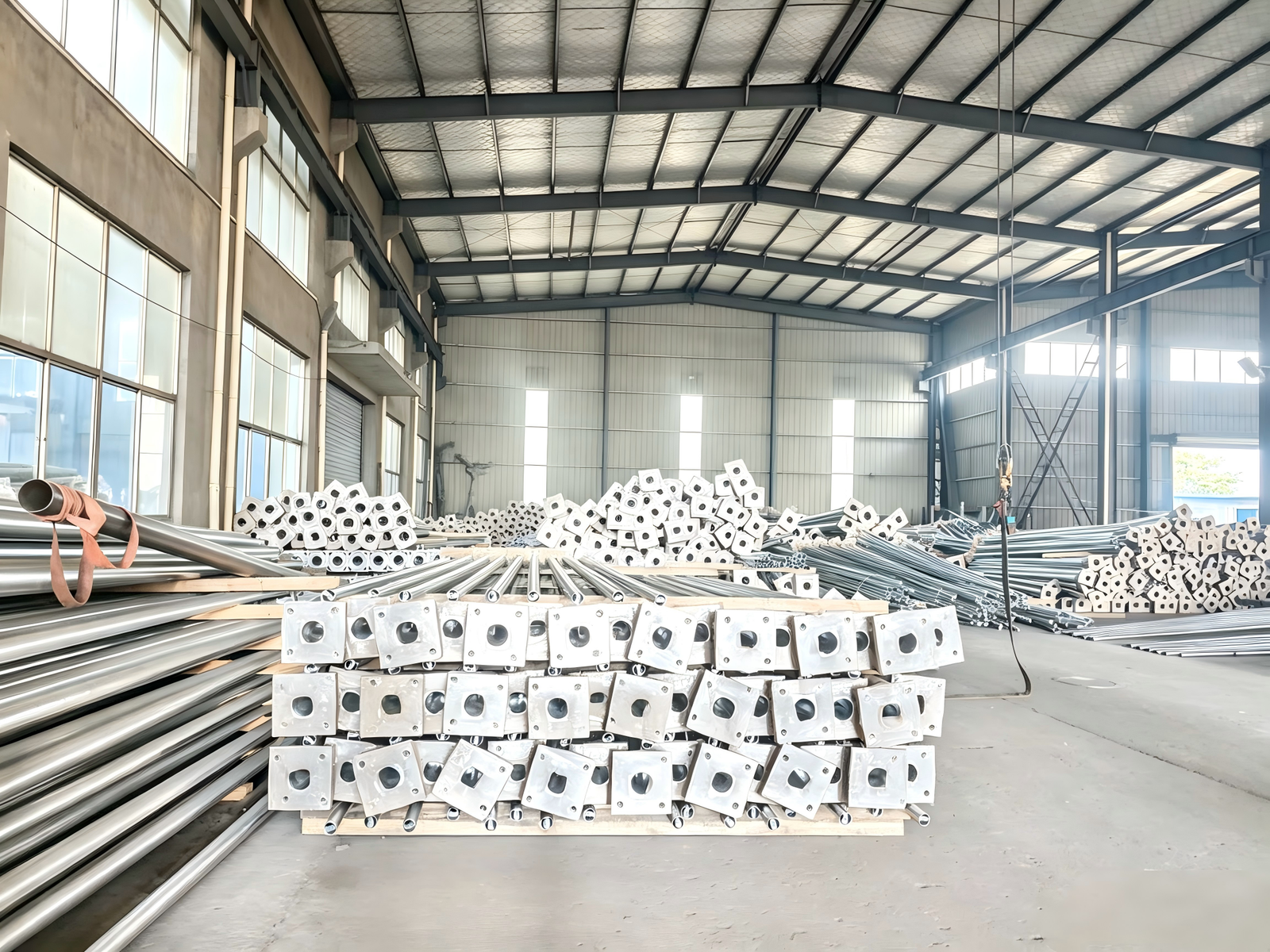

Straight Cylindrical Pole
Uniform diameter pole ideal for industrial zones and parking lots. Simplified installation with anchor bolt base.

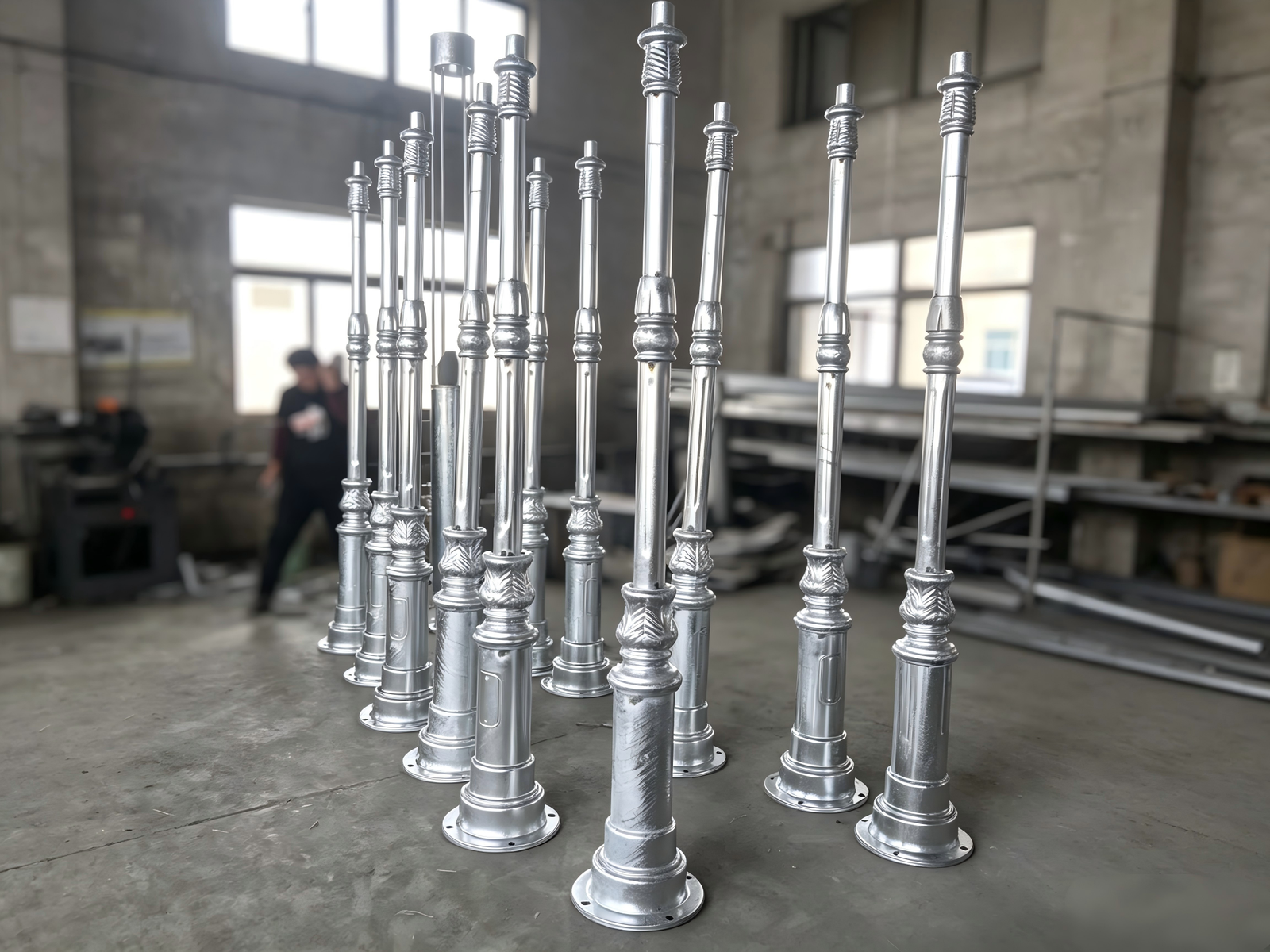

Decorative Ornamental Pole
Custom-designed for urban squares, parks, and heritage districts. Available with powder-coat finish in any RAL color.
Built for Long-Term Performance
Every pole is engineered to exceed international standards for structural integrity, corrosion resistance, and ease of installation in demanding outdoor environments.
Hot-Dip Galvanized Finish
Full immersion galvanizing to ASTM A123 / EN ISO 1461 standard ensures 25+ year corrosion protection in coastal and tropical climates.
High Wind Load Resistance
Structurally calculated for wind zones up to 160 km/h. Anchor bolt base plate designed to IEC 60598-2-3 specifications.
Modular Arm & Bracket System
Compatible with single, double, and multi-arm configurations. Pre-drilled cable entry ports with IP66-rated junction box provisions.
Global Project Track Record
Deployed in 30+ countries across Africa, Southeast Asia, and the Middle East. Experienced with World Bank and government-funded infrastructure projects.
Certifications & Standards
ISO 9001
Quality Management
CE Mark
EU Compliance
ASTM A123
Galvanizing Standard
EN 40
Lighting Column Std
50k
Sets / Year
30+
Countries
12yr
Experience
Technical Specifications
Standard parameters for our conical tapered pole series. Custom specifications available upon request.
| Parameter | Value / Range |
|---|---|
| Pole Height | 6 m - 14 m |
| Top Diameter | 60 - 76 mm |
| Bottom Diameter | 130 - 220 mm |
| Wall Thickness | 3 mm - 5 mm |
| Wind Speed Rating | Up to 160 km/h |
| Base Plate | 250×250 - 400×400 mm |
| Arm Length | 1.0 m - 3.0 m |
| IP Rating (Junction Box) | IP66 |
| Parameter | Value / Range |
|---|---|
| Base Material | Q235B / Q345B Steel |
| Surface Treatment | Hot-Dip Galvanized |
| Zinc Coating Thickness | ≥ 86 μm average |
| Optional Topcoat | Polyester Powder Coat |
| Weld Quality | Full penetration weld |
| Hardware Material | SS304 / Hot-dip bolt |
| Option | Available Variants |
|---|---|
| Pole Shape | Conical / Straight / Decorative |
| Color Finish | Any RAL / Custom |
| Arm Configuration | Single / Double / Multi |
| Logo / Branding | OEM nameplate / embossed |
| Packing | Bulk / wooden crate / container |
| Documentation | COC / Test report / CAD drawings |
Application Scenarios
Trusted across a wide range of outdoor infrastructure environments worldwide.
Municipal Roads
Highways
Residential Areas
Industrial Zones
Urban Squares
Gov. Projects
Request Product Information
Tell us about your project requirements. Our engineering team will respond within 24 hours with a tailored proposal, including CAD drawings and DIALux simulation if needed.
