Smart Street Light Systems Built for
Connected Cities & Government Projects
Jinborui delivers next-generation smart street lights with integrated IoT control, adaptive dimming, and centralized cloud management -- purpose-built for municipal authorities, EPC contractors, and smart city infrastructure deployments across 30+ countries.
70%
Energy Saved
200+
Gov Projects
Smart Street Light Solutions
A comprehensive range of intelligent smart street lighting products engineered for government, municipal, and smart city projects worldwide.
Smart Street Light System Overview
A smart street light system integrates LED lighting, sensors, and IoT control to enable intelligent urban lighting management with real-time monitoring and automation.
Smart Street Light Model Selection Guide
Different smart street light models are designed for highways, municipal roads, and industrial areas, offering various power levels, control options, and installation structures.
Smart Street Light Controller Technology
The smart street light controller enables remote dimming, scheduling, fault detection, and energy optimization through IoT-based communication systems..
Smart Street Light System Using Arduino for IoT Learning
This system is commonly used in educational and research environments to simulate real-world smart city lighting automation concepts.
Smart Street Lighting System Project Report
A smart street lighting system project report typically includes system design, cost analysis, energy savings, and implementation roadmap for government and EPC contractors.
Benefits of Smart Street Light Systems in Real Projects
Smart street lighting systems reduce energy consumption, improve safety, and lower maintenance costs for municipal and highway infrastructure.

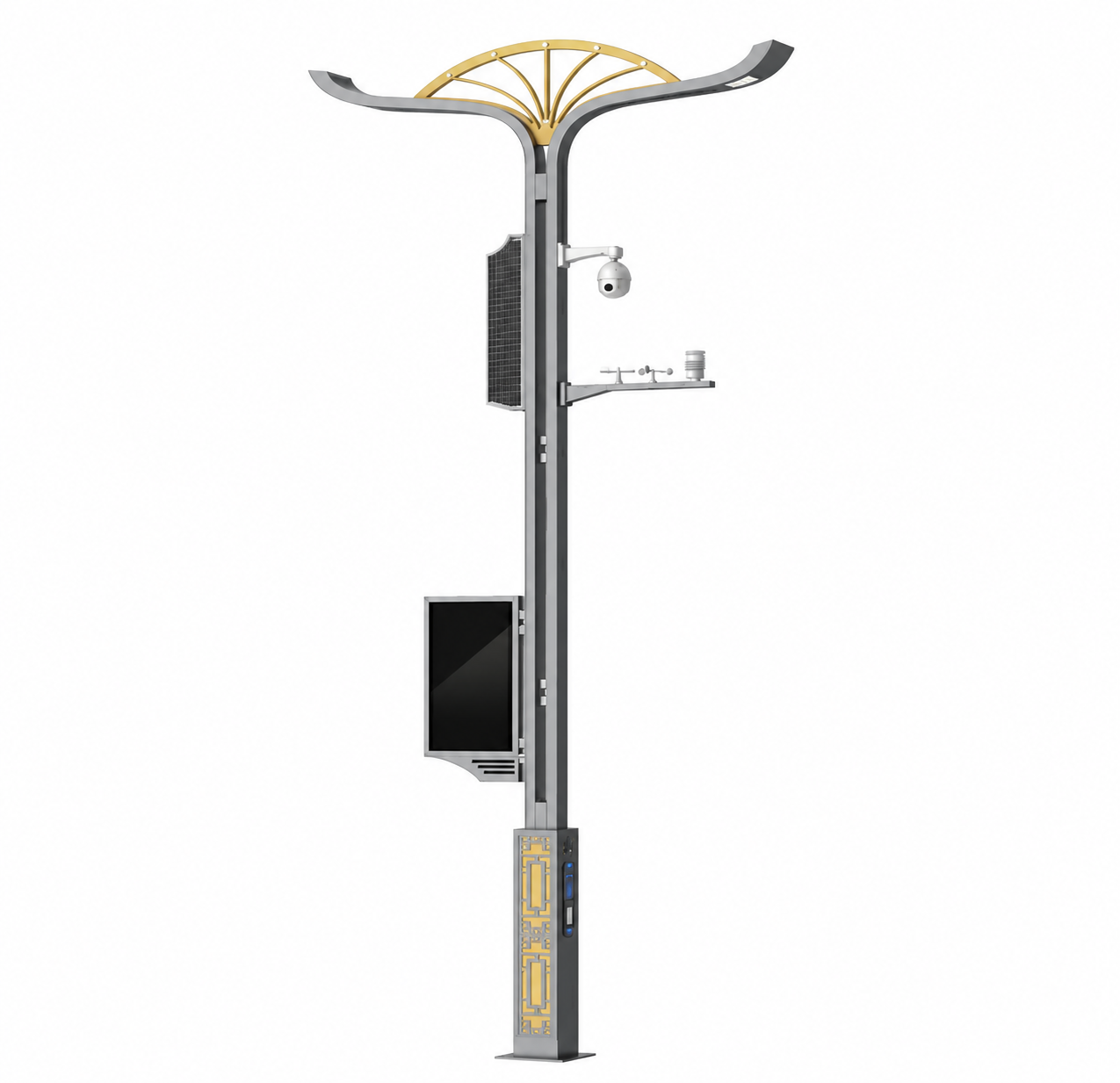

Government Grade 5G IoT Smart Street Light
Industrial-grade 5G IoT intelligent street light designed for government urban infrastructure projects, stable 4G/5G dual network communication, precise intelligent dimming and full data traceability. Fully compatible with municipal unified smart city management platforms.
Smart Street Light Using Arduino for Prototype Development
Using Arduino, developers can build low-cost smart street lighting prototypes with sensors like LDR, PIR, and wireless communication modules.
Complete Smart Street Light System Project Design
A full smart street light system project includes pole structure, LED luminaire, solar panel (optional), controller, and cloud-based monitoring platform.
Press ESC or click outside to close
Smart Street Light Project Using Arduino
Arduino-based smart street light projects are widely used for prototype development, enabling motion sensing, automatic switching, and basic IoT control functions.
Need a custom smart street light solution or OEM/ODM partnership? Our engineering team is ready to assist.
What is an IoT Smart Street Light?
An IoT smart street light is an intelligent street lighting system that integrates LED luminaires with wireless communication modules (NB-IoT, LoRa, or 4G), enabling each fixture to be individually monitored, controlled, and managed via a centralized cloud platform.
Unlike conventional street lights, a smart city lighting solution collects real-time operational data -- including power consumption, lamp status, and environmental conditions -- and transmits it to a cloud management system (CMS) for automated decision-making and remote intervention.
Jinborui's intelligent street lighting system is purpose-built for large-scale government and infrastructure projects, offering seamless integration with smart city platforms and full OEM/ODM customization.
Remote Control
Control every light from a single dashboard, anywhere in the world.
Energy Analytics
Real-time consumption data and automated reporting for cost control.
Fault Detection
Instant alerts for lamp failures, reducing maintenance response time.
Smart Dimming
Schedule-based or sensor-triggered dimming for maximum efficiency.
Key Features of Our Smart LED Street Light
Every feature is engineered for large-scale deployment, reliability in harsh environments, and seamless integration with existing smart city infrastructure.
Remote Monitoring & Control
Monitor and control every luminaire individually via the cloud management platform. Adjust brightness, schedule on/off times, and respond to incidents without on-site visits.
Intelligent Energy Management
Adaptive dimming algorithms reduce power consumption by up to 70%. Time-based and traffic-triggered dimming strategies ensure optimal illumination at minimal energy cost.
Automated Fault Detection
The system continuously monitors lamp status, driver health, and power quality. Faults trigger instant push alerts to maintenance teams, dramatically reducing outage duration.
Smart Dimming Control
Multi-level dimming (0-100%) supports pre-programmed schedules, motion sensor integration, and manual override. Compatible with DALI and PWM dimming protocols.
Cloud Platform (CMS)
Web-based and mobile-accessible cloud management system provides GIS mapping, energy dashboards, maintenance logs, and multi-user role management for city-wide deployments.
Multi-Protocol Communication
Supports NB-IoT, LoRa, and 4G communication modules. Choose the protocol that best fits your network infrastructure, coverage area, and deployment budget.

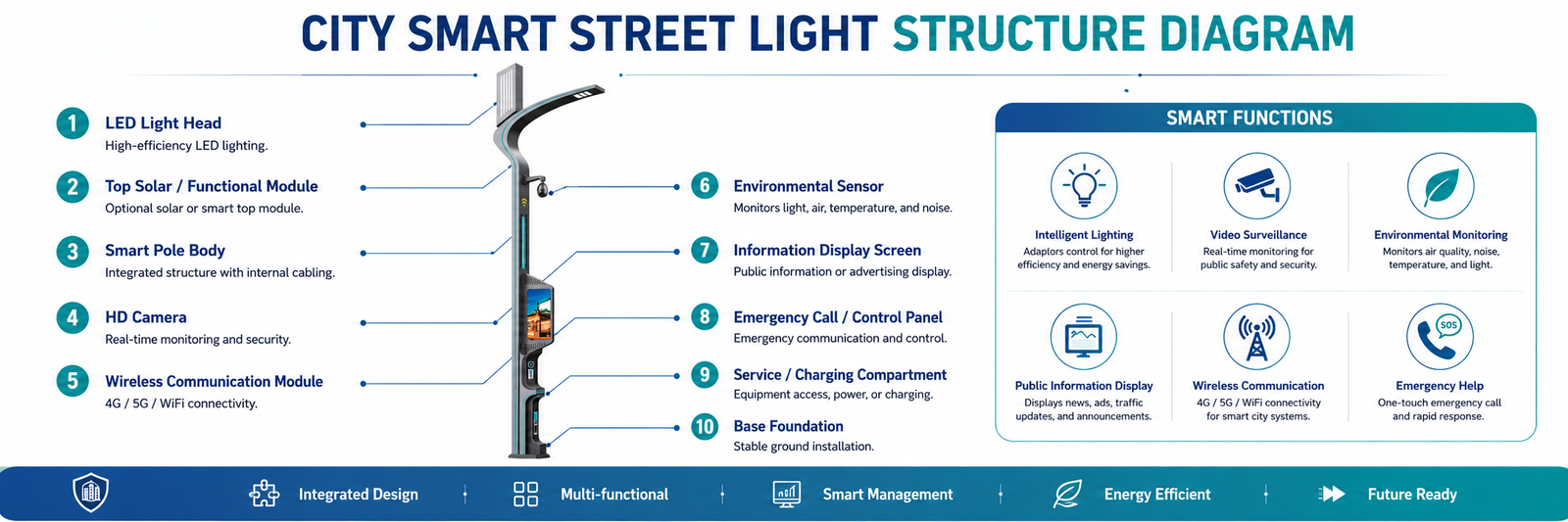

IoT Smart Street Light System Components
A complete end-to-end intelligent lighting ecosystem -- from luminaire to cloud.
Smart LED Street Light
High-efficacy LED luminaire (≥150 lm/W) with integrated surge protection, IP66/IP67 rating, and IK10 impact resistance. Power range: 30W-200W.
IoT Controller Unit
Single-lamp controller installed in the luminaire housing. Measures voltage, current, power, and lamp status. Supports OTA firmware updates and remote configuration.
NB-IoT / LoRa Module
Low-power wide-area communication module. NB-IoT leverages existing cellular networks; LoRa provides private network deployment for areas with limited coverage.
CMS Cloud Platform
Browser-based management platform with GIS map view, group control, energy statistics, alarm management, and API integration for third-party smart city systems.
Proven Advantages of Intelligent Street Lighting Systems
Energy Saving up to 70%
Smart dimming and scheduling eliminate unnecessary energy consumption during low-traffic hours, delivering measurable ROI within 2-3 years.
Centralized Control at Scale
Manage thousands of street lights across an entire city from a single operator dashboard, reducing the need for field inspection teams.
Lower Maintenance Cost
Proactive fault alerts and predictive maintenance data reduce unplanned outages and lower the total cost of ownership over the product lifecycle.
Real-time Monitoring & Reporting
Automated energy reports and compliance documentation support government auditing requirements and carbon-reduction reporting obligations.
70%
Energy Reduction
3yr
Avg. ROI Period
50k+
Units Deployed
30+
Countries Served
Technical Specifications
Full specification data for engineering teams, tender documents, and procurement evaluation.
Luminaire Specifications
IoT Controller & Communication
Frequently Asked Questions
Common questions from engineers, procurement teams, and government clients about IoT smart street lighting systems.
What is IoT smart street lighting and how is it different from conventional street lights?
An IoT smart street light integrates a standard LED luminaire with an embedded IoT controller and wireless communication module. Unlike conventional lights that simply switch on and off, smart street lights communicate with a cloud management system in real time -- enabling remote on/off control, adaptive dimming, energy metering, and automated fault detection. This transforms passive infrastructure into an active, data-driven network that reduces operating costs and improves service quality.
How does an IoT smart street light system work?
Each luminaire contains an IoT controller that measures operating parameters (voltage, current, power factor, lamp status) and transmits this data via NB-IoT, LoRa, or 4G to a cloud management platform (CMS). The CMS processes the data and allows operators to issue commands -- such as dimming schedules, group on/off, or emergency override -- back to individual lights or entire zones. Fault alerts are automatically pushed to maintenance teams when anomalies are detected.
What are the energy saving benefits of smart street lighting?
Smart street lighting can reduce energy consumption by up to 70% compared to traditional HPS (high-pressure sodium) fixtures. Savings come from three sources: (1) LED technology itself is 50-60% more efficient than HPS; (2) smart dimming reduces output during low-traffic hours, typically 11pm-5am; (3) remote monitoring eliminates lights left on accidentally or running at full power when dimming is sufficient. Combined with automated reporting, cities can accurately quantify carbon reduction for government sustainability targets.
Which communication protocol is best -- NB-IoT, LoRa, or 4G?
The optimal protocol depends on your deployment environment. NB-IoT is ideal where cellular coverage is available -- it is low-cost per node and uses existing network infrastructure. LoRa suits areas with limited cellular coverage, allowing a private network to be deployed with a single gateway serving thousands of nodes. 4G LTE is preferred for high-data applications or where real-time video/sensor integration is required. Jinborui supports all three protocols and can advise on the best choice for your specific geography and budget.
Can Jinborui provide OEM/ODM smart street light products?
Yes. Jinborui offers full OEM and ODM services for IoT smart street lights. We can customize luminaire housing design, wattage range, communication protocol, color temperature, optics, pole compatibility, and branding. Our engineering team works directly with contractors and distributors to develop project-specific solutions. Minimum order quantities apply; contact our sales team for details on lead times and tooling costs.
What certifications do Jinborui IoT street lights carry?
Jinborui's IoT smart street lights are CE marked, RoHS compliant, and manufactured under ISO 9001 quality management certification. Products meet IP66/IP67 ingress protection and IK10 impact resistance standards. Additional certifications (ENEC, SAA, UL, CB) are available upon request for specific market requirements. Full test reports can be provided for tender submissions.
Request a Quote for IoT Smart Street Light System
Tell us about your project -- installation quantity, location, communication protocol preference, and any special requirements. Our engineering team will respond within 24 hours with a customized proposal.
24-Hour Response
Our engineering team reviews every inquiry and responds with a tailored proposal.
Free Lighting Simulation
DIALux lighting design report included for qualified projects at no charge.
Full Tender Documentation
BOQ, technical specs, and compliance certificates ready for procurement submission.
