High Mast Lighting
for Airports, Freeways, Parking Lots,
Stadiums and Ports
JINBORUI delivers high mast lighting systems engineered for wide-area visibility, reliable operation and efficient maintenance. From photometric planning and pole design to manufacturing, testing and installation support, our team develops project-specific solutions for airports, freeway interchanges, logistics yards, parking areas, stadium surroundings and port terminals.
20-50m
Typical configurable mast height
Custom photometric design
Project-based beam and luminaire layout
Lowering or fixed-head options
Maintenance configuration selection
Project documentation
Drawings, calculations and technical submittals
High Mast Lighting Projects for Large-Scale Sites
Review representative projects by application, mast configuration and lighting objective. Each published case should include real photos, project location, pole height, luminaire quantity, wattage, target illuminance, design challenge and delivered solution.
Airport Apron High Mast Lighting
High-output, low-glare lighting designed to support apron visibility, ground operations and maintenance access.
Freeway Interchange High Mast Lighting
Wide-beam layouts for interchanges, toll areas and complex traffic zones where uniformity and visual guidance are critical.

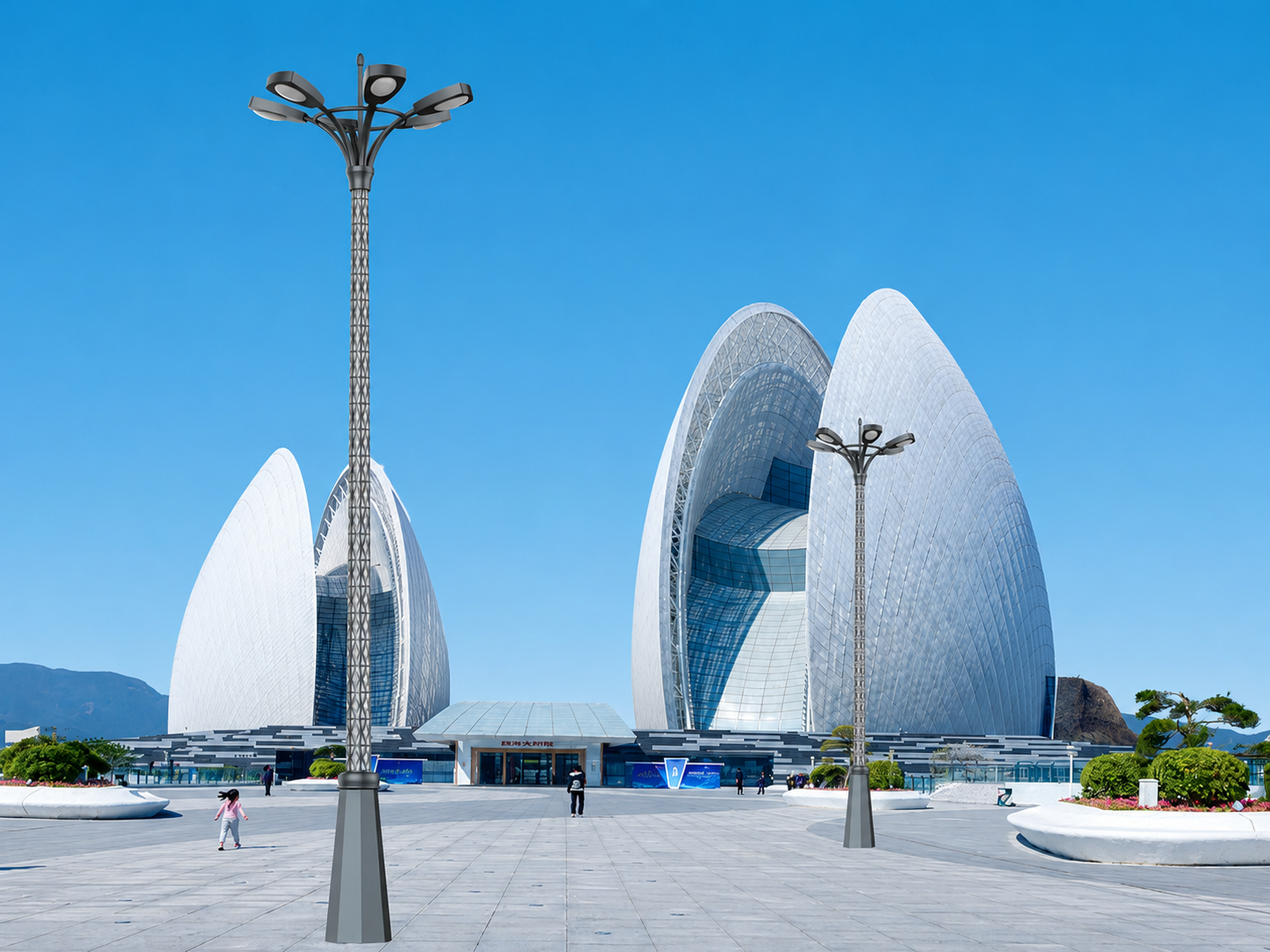

Parking and Logistics Yard Lighting
Efficient area lighting for large parking lots, distribution centers, container yards and industrial campuses.
Stadium Perimeter and Plaza Lighting
Flexible floodlighting configurations for access roads, plazas, external training areas and event circulation zones.
High Mast Lighting Configurations for Different Project Requirements
Select the mast structure, headframe, luminaire arrangement and maintenance system according to site scale, wind conditions, service access and lifecycle requirements. Final specifications should be confirmed through project calculations and approved drawings.
Standard Series
- Pole Height: 20m
- LED Power: 400W-800W
- Luminaires: 4-6 Units
- Wind Load: ≥ 55 m/s
- Application: Parking, Logistics
IP65 / IP66
Professional Series
- Pole Height: 25m / 30m
- LED Power: 800W-1500W
- Luminaires: 6-12 Units
- Wind Load: ≥ 55 m/s
- Application: Airport, Port
IP65 / IP66 / IP67
Heavy-Duty Series
- Pole Height: 35m / 40m
- LED Power: 1500W-2400W
- Luminaires: 12-16 Units
- Wind Load: ≥ 60 m/s
- Application: Stadium, Mining
IP66 / IP67
Ultra-High Series
- Pole Height: 45m
- LED Power: 2400W-4000W
- Luminaires: 16-24 Units
- Wind Load: ≥ 60 m/s
- Application: Large Port, Refinery
IP66 / IP67 / IK10
Common Technical Parameters
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Material | Q345 Hot-Dip Galvanized Steel | Luminous Efficacy | ≥ 150 lm/W |
| Surface Treatment | Hot-dip galvanized + Powder coating | Color Temperature | 3000K / 4000K / 5000K / 5700K |
| Lifting Mechanism | Electric / Manual Winch System | CRI | ≥ 70 / ≥ 80 (Optional) |
| Voltage | AC 100-277V / 220-480V | Lifespan | ≥ 50,000 Hours (L70) |
| Certifications | CE / RoHS / ISO 9001 / IEC | Warranty | 5 Years Standard |
Designed for Reliability, Safety and Maintainability
A high mast lighting system is a coordinated structure rather than a single pole. Long-term performance depends on structural design, luminaire selection, mechanical safety, corrosion protection, electrical protection and maintainable component access. The following factors should be verified for every project.
Structural Safety
Mast sections, welds, flange, anchor bolts and foundation data are designed for the project loading conditions.
Wind Resistance
Wind calculations account for mast height, luminaire projected area, terrain category and local design criteria.
Corrosion Protection
Galvanizing and optional coatings are selected according to inland, industrial, coastal or port exposure.
Mechanical Protection
Lowering systems should include appropriate locking, cable guidance, limit and safety provisions.
Electrical Protection
Control panels can include isolation, overload, surge and grounding provisions according to the project.
Maintenance Access
Ground-level servicing options reduce work-at-height exposure and simplify routine inspection.
Airport Apron & Runway
FAA/ICAO compliant illumination for safe aircraft operations. Anti-glare optics for pilot safety.
Container Port & Yard
Salt-spray resistant IP67 fixtures for 24/7 port operations. Wide-angle flood coverage for crane areas.
Highway Interchange
High-uniformity illumination for complex interchanges and toll plazas. Meets EN 13201 standards.
Stadium & Arena
TV broadcast-grade illumination with CRI≥80. Zero flicker for high-speed camera compatibility.
Mining & Industrial Site
IK10 impact-resistant, IP66 dust-proof fixtures for open-pit mines and heavy industrial zones.

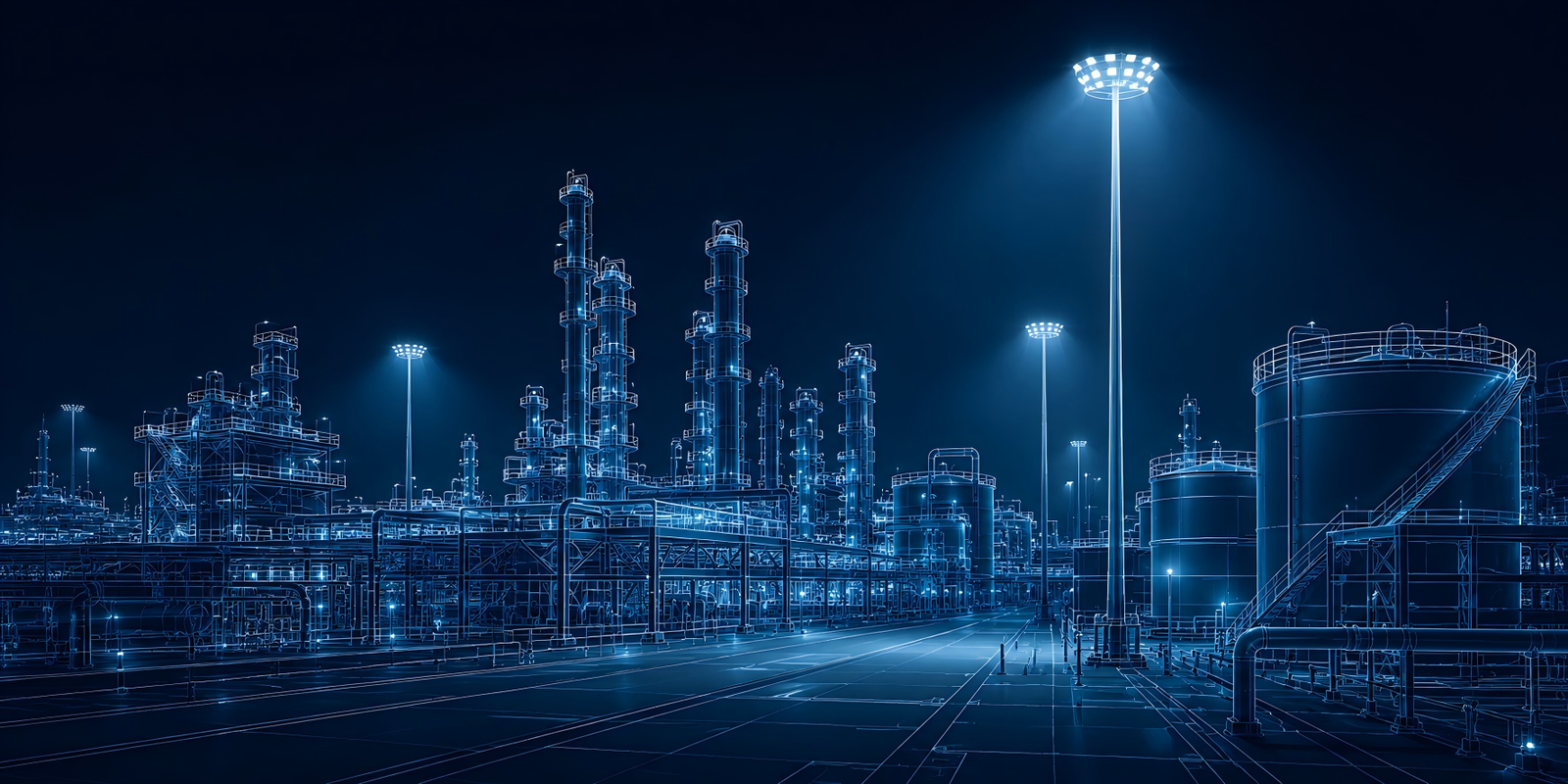

Oil Refinery & Plant
ATEX-zone compatible options available. Corrosion-resistant coatings for chemical environments.
From Site Data to Installation Support
We support your project from bidding through commissioning with dedicated engineering resources at every stage.
Project Requirement Review
We review drawings, site dimensions, application, lighting targets, local standards, power conditions and wind data.
DIALux or Photometric Simulation
Luminaire positions, mounting heights, beam angles and quantities are evaluated to improve coverage and uniformity.
Structural and Foundation Design
The mast, headframe, flange, anchor system and foundation information are developed for the design loads.
Manufacturing and Quality Control
Material traceability, cutting, forming, welding, galvanizing, assembly and inspection follow the approved specification.
Pre-Shipment Documentation
Packing lists, drawings, test records, installation guidance and requested technical submittals are prepared.
Installation and Commissioning Support
Remote or on-site guidance can be arranged according to contract scope and project conditions.
Documented Quality for Engineering Projects
Project requirements vary by country and application. The applicable design codes, material standards, welding requirements, galvanizing criteria, electrical requirements and testing documents should be confirmed before production. Avoid displaying certification logos unless the company and the exact supplied product are covered by valid certificates.
Material Verification
Steel grade and component specifications checked against the approved bill of materials.
Welding Inspection
Weld appearance and required inspection level controlled according to project documentation.
Galvanizing and Coating
Surface preparation and protection records maintained where required.
Assembly Test
Lowering, locking, electrical and mechanical functions checked before shipment when applicable.
Packing and Identification
Sections and accessories marked for efficient site assembly and traceability.
Why Engineering Teams Choose JINBORUI
Application-Based Design
Solutions are developed around site geometry, lighting tasks and maintenance conditions--not a one-size-fits-all catalogue item.
Integrated Technical Support
Lighting layout, pole configuration, foundation data and electrical interfaces are coordinated as one system.
Custom Manufacturing
Mast height, headframe, luminaire arrangement, surface treatment and controls can be configured for the project.
Practical Documentation
Clear drawings, parameter schedules and installation guidance help contractors review and execute the project.
Lifecycle Focus
Design decisions consider operation, inspection, component replacement and long-term maintenance.
High Mast Lighting FAQ
Everything you need to know about our high mast lighting systems, from design considerations to technical specifications.
What height is normally used for a high mast lighting system?
High mast poles are commonly designed within a broad range such as 20-50 m, but the correct height depends on site dimensions, required illuminance, glare limits, wind conditions and maintenance strategy.
How many LED floodlights are required on one mast?
The quantity should be determined by photometric simulation rather than a fixed rule. Pole height, spacing, beam angle, wattage, target illuminance and uniformity all affect the result.
Can you provide DIALux lighting calculations?
Yes. A project calculation can be prepared after receiving the site plan, mounting constraints, target lighting levels and luminaire requirements.
What information is needed for a quotation?
Please provide the application, site dimensions or drawings, mast height preference, required lighting level, local wind speed, power supply, quantity and destination.
Is a lowering system recommended?
A lowering system is useful where safer ground-level maintenance is a priority. The selection should consider budget, maintenance frequency, site access and local safety procedures.
How is the mast designed for wind load?
The structural design should use the applicable local code and project wind data, considering mast geometry, terrain, luminaire area, headframe and other installed equipment.
What corrosion protection is available for port projects?
Hot-dip galvanizing is typically the base protection. Additional coating systems, suitable fasteners and enclosure materials may be specified for coastal or aggressive environments.
Can the system include smart controls or dimming?
Yes. Depending on the project, timers, photocells, step dimming, 0-10 V, DALI or remote control interfaces may be considered, subject to luminaire and control compatibility.
Still have questions?
Can't find the answer you're looking for? Please chat with our friendly engineering team.
Related Guides
Expert insights and best practices for planning, designing, and maintaining high mast lighting systems.

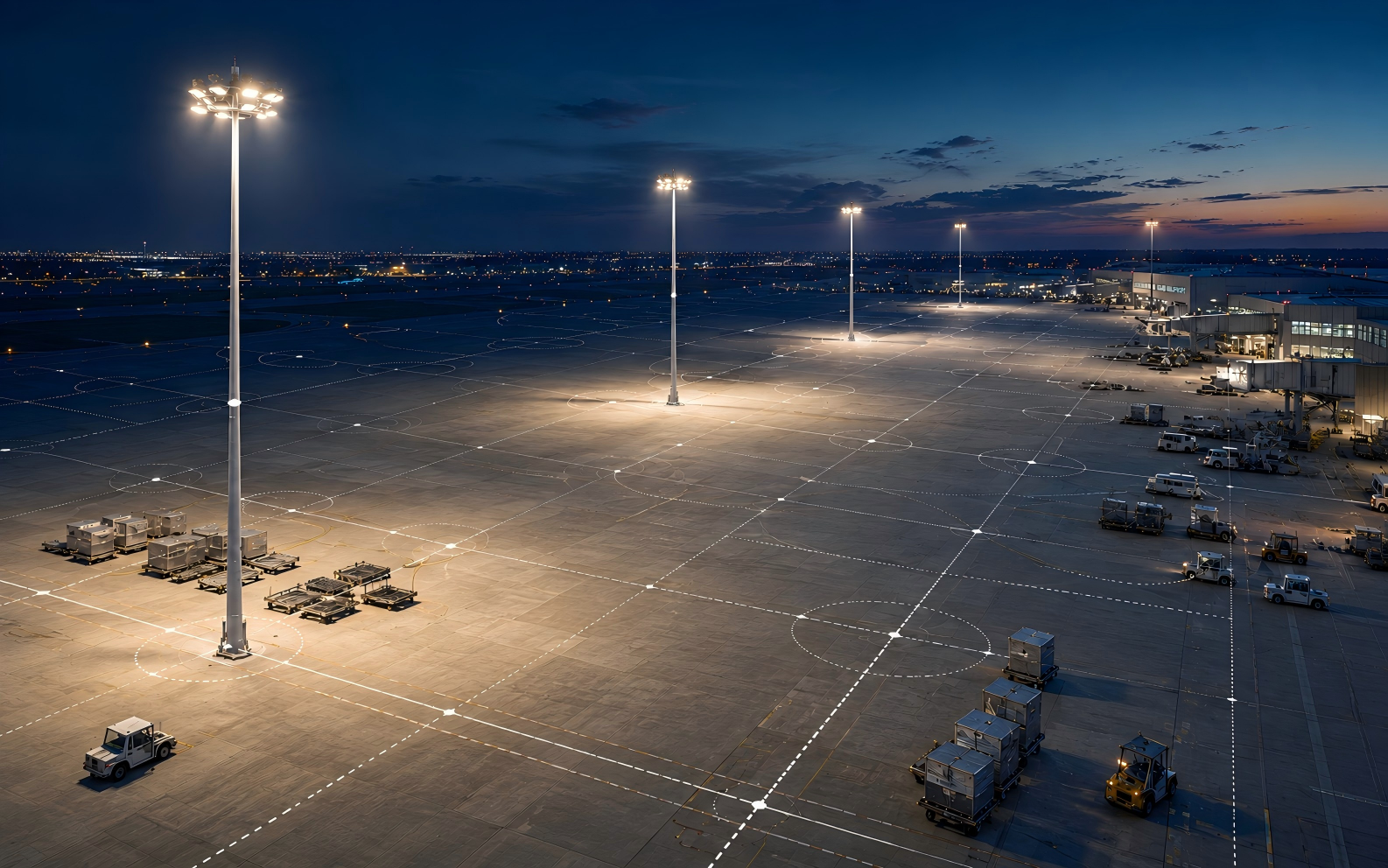

How to Plan High Mast Lighting for Large Areas
A practical guide to pole spacing, mounting height, illuminance, uniformity and glare control.

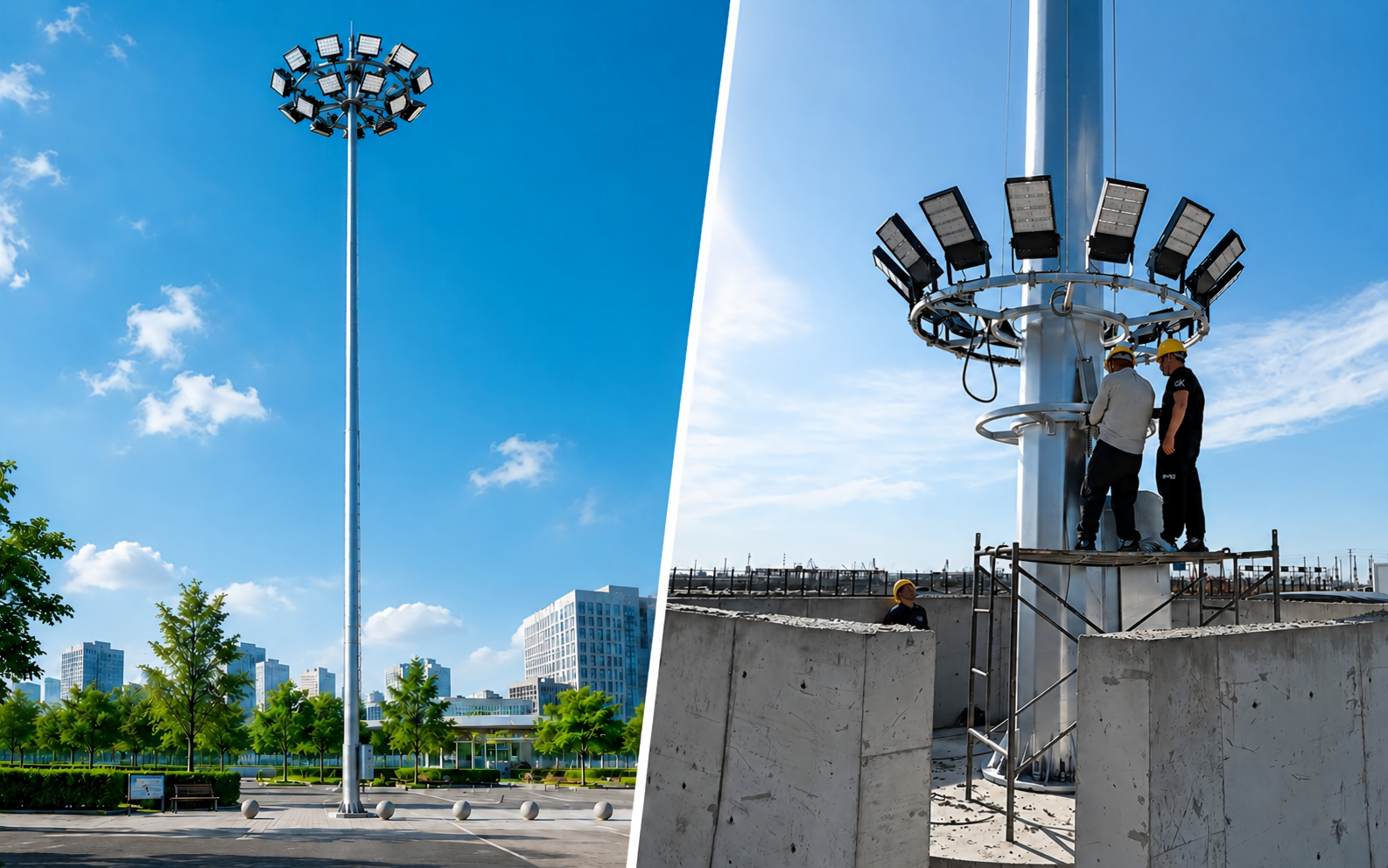

Fixed vs. Lowering High Mast Systems
Compare maintenance methods, safety considerations, cost and suitable applications.

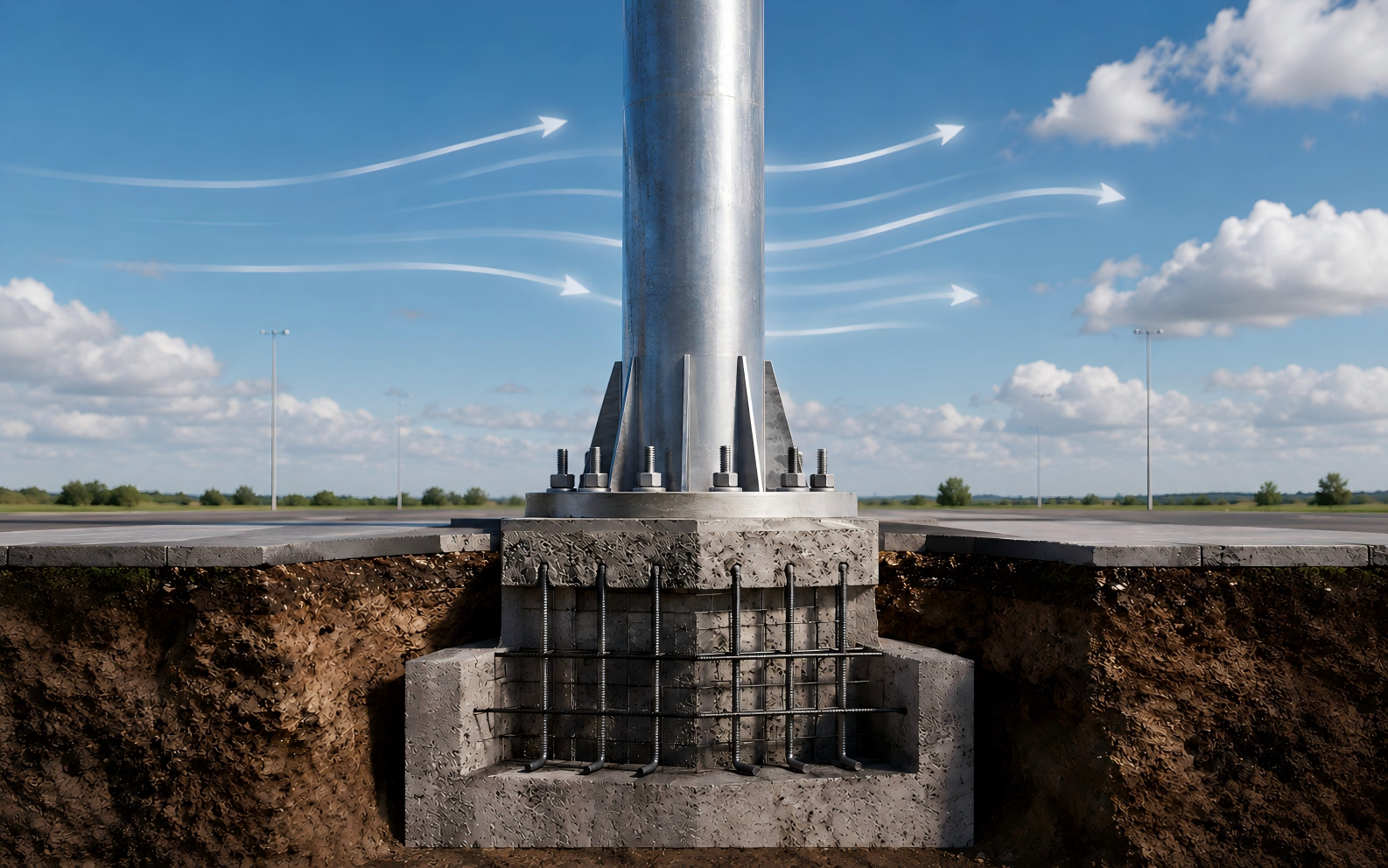

High Mast Wind Load and Foundation Design Basics
Understand the project data required for structural calculation and foundation coordination.

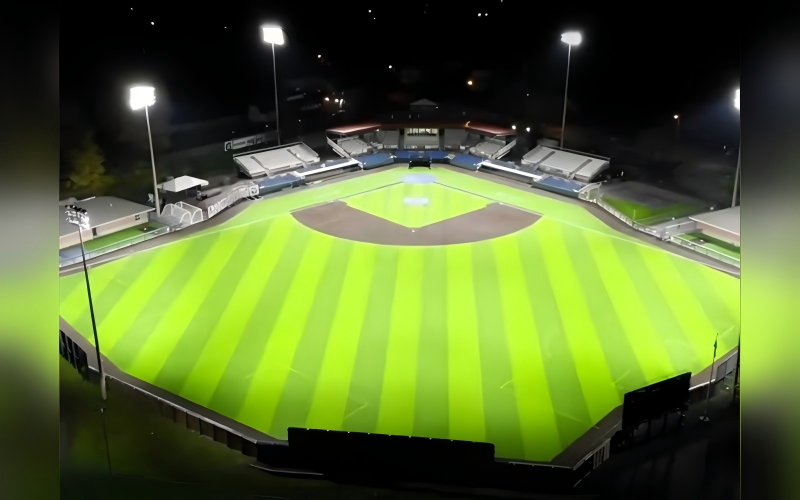

How to Select LED Floodlight Beam Angles
Learn how narrow, medium and wide beams influence coverage, aiming and uniformity.
Start Your High Mast Lighting Project
Send us your site plan, target lighting level, preferred mast height, local wind data and project quantity. Our engineering team will review the requirements and prepare a suitable technical proposal and quotation scope.
Submit Your Requirements
Share project location, pole height, coverage area, and power requirements.
Receive Technical Proposal
Our engineers prepare DIALux simulations, product specifications, and CAD drawings.
Confirm & Manufacture
Approve the design and we begin production with full quality inspection documentation.
